59
INSTALLER
USERMAINTENANCE TECHNICIAN
TECHNICAL DATA

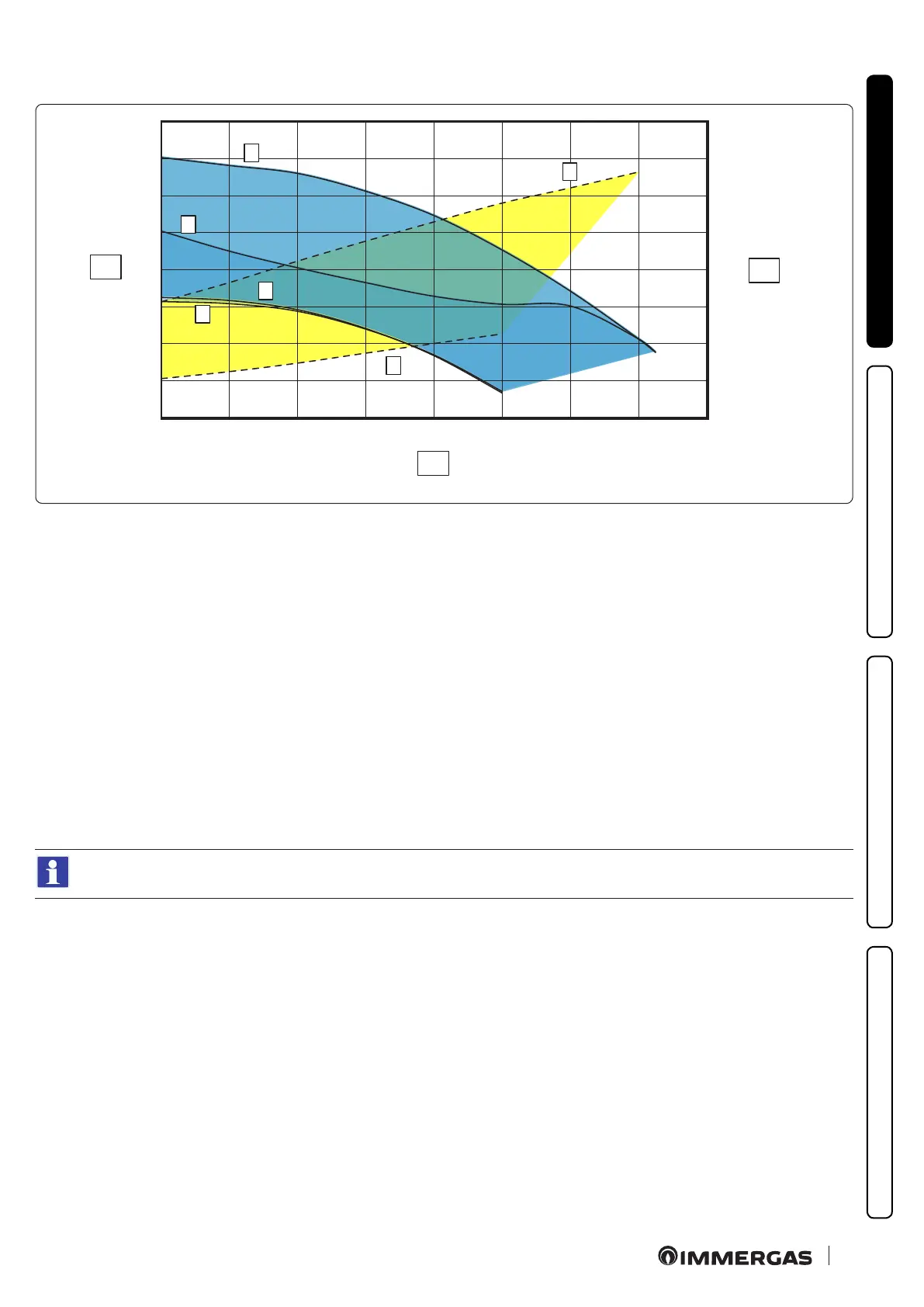

Head available to the Victrix Extra 35 Plus system
1
2
3
4
5
6
0
10
20
30
40
50
60
70
80
0
10
20
30
40
50
60
70
80
0
200
400
600 800
1000
1200
1400 1600
X1
Y1
Y2
46
Legenda (Fig. 45, 46):
1 = Head available to the system at speed 9 with by-pass closed
2 = Head available to the system at speed 9 with by-pass open
3 = Head available to the system at speed 6 with by-pass closed
4 = Head available to the system at speed 6 with by-pass open
5 = Circulator power input at Speed 9 with closed by-pass
6 = Circulator power input at Speed 6 with closed by-pass
Area between curves 1 and 3 = Available system head with bypass closed
Area between curves 2 and 4 = Available system head with bypass open
Area between curves 5 and 6 = Circulator absorbed power with bypass closed
X1 = Flow rate (l/h)
Y1 = Head (kPa)
Y2 = Power absorbed by pump (W)
1.33 KITS AVAILABLE ON REQUEST
Check the complete list of kits available and which can be combined with the product, consult the Immergas website, the Im-
mergas Price List or the technical-commercial documentation (catalogues and data sheets).
