Immergas VICTRIX EXTRA 12 PLUS - Main Dimensions

14
INSTALLERUSERMAINTENANCE TECHNICIANTECHNICAL DATA

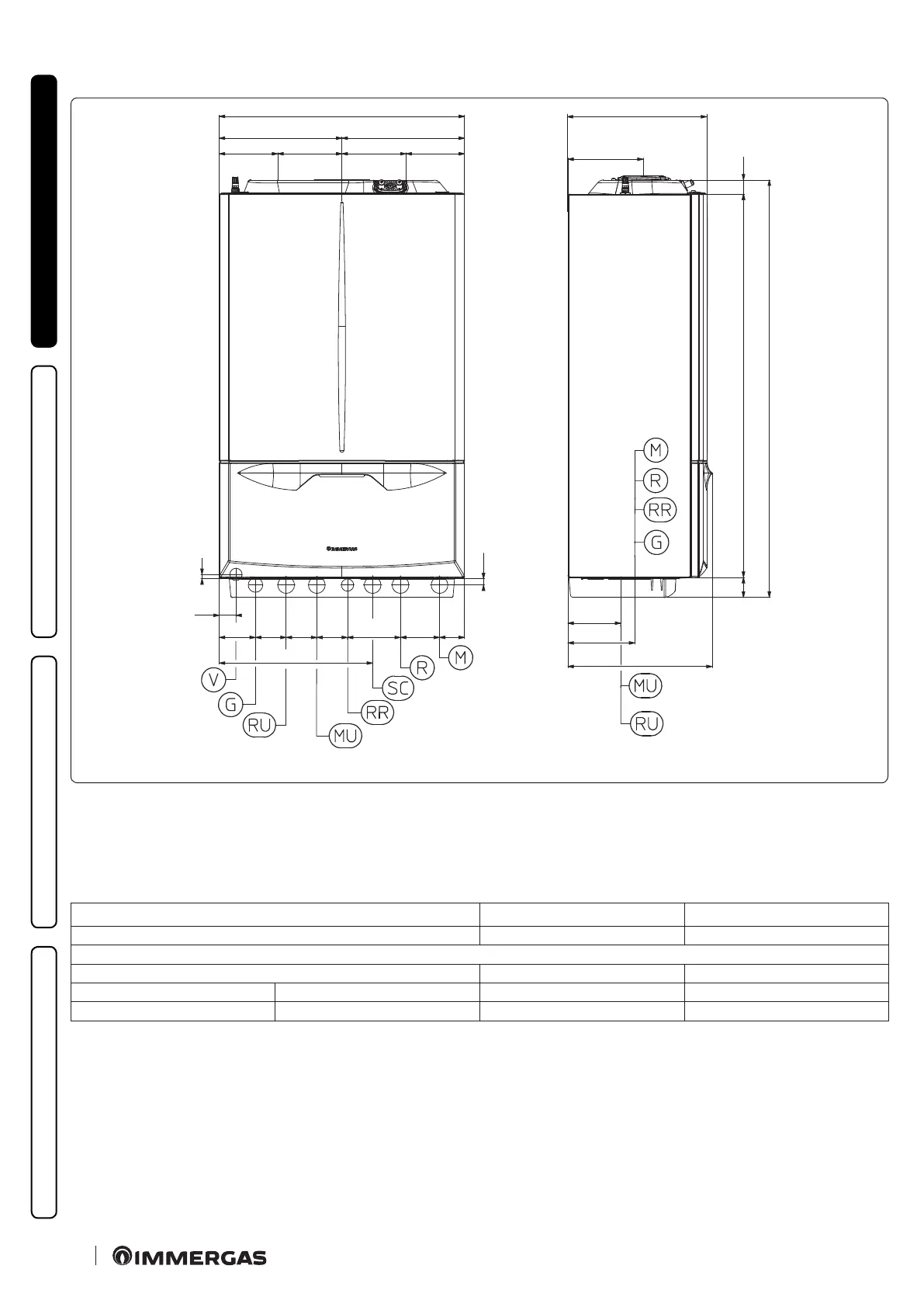

1.2 MAIN DIMENSIONS
105 115 115 105
220 220
440
8
11
30
65 55 55 55 95 70 45
275
95
120
2568736
748
135
260
250
2
Key (Fig. 2):
V - Electrical connection
G - Gas supply
RU - Storage tank unit return
MU - Storage tank unit ow
RR - System lling
SC - Condensate drain (minimum internal diameter Ø 13 mm)
R - System return
M - System ow
Height (mm) Width (mm) Depth (mm)
748 440 260
TEMPLATE CONNECTIONS
SYSTEM GAS DOMESTIC HOT WATER
MU-RU M-R G RR
3/4" 3/4" 3/4" 1/2"
