8 | Maintenance INFICON
72 / 104 Ecotec E3000-Operating-instructions-kina22en1-28-(2211)
• Calibration factor

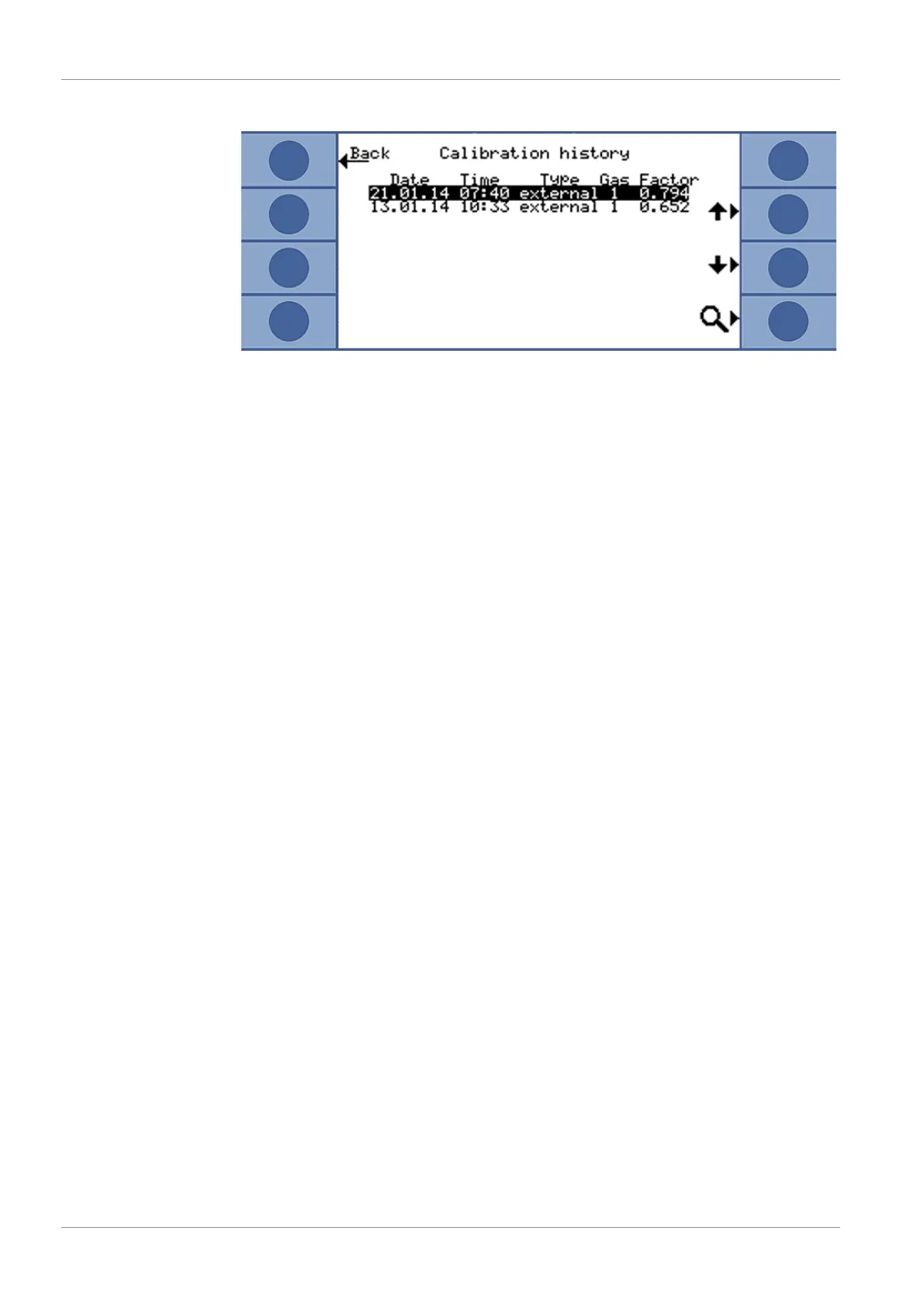

Fig.41: Calibration list
To have the complete calibration information displayed, select the appropriate line and
press the button with the magnifying glass. The calibration information includes:
• Calibration mode (internal or external), for internal: Gas in calibrated leak
• Gas
– Internal calibration: one or more gas numbers
– External calibration: Gas number, mass position, gas
• Date and time of calibration
• Number of operating hours at the time of calibration
• Calibration factor
• Peak position (if different from mass position)
• Flow through sniffer line at the time of calibration
• Cathode that was in use at the time of calibration (A/B)
• Size of the calibrated leak that is used (external calibrated leak for external
calibration and ECO-Check for internal calibration)
• Argon flow and mass deviation at the time of calibration
• Flow of the gas that was calibrated and background signal
Maintenance intervals To call up the elapsed operating hours of the device since the start-up, select
“Maintenance intervals.” The information does not apply to the sniffer line because
different lines could have been used.
The remaining operating hours up until the next maintenance work are displayed
below.
The times below “Next maintenance for …” are based on confirmations that you enter
after maintenance work.
See "Confirm maintenance" below.
Maintenance list
The maintenance list shows all maintenance work Maintenance plan [}76] that was
confirmed within the scope of the work. Shown are date and time of completed works,
the number of operating hours of the device at the time of the maintenance work and
the type of work performed. To have the complete entry displayed, select the
appropriate line and press the button with the magnifying glass.
