INGENIA Pluto - Pluto Architecture

Product Manual
15/88
T: Full cycle period.
I : Current during t1
1
I : Current during t2
2
I : Current during tn
n
Dynamic model
For systems with a time > than 3 τ the dynamic model should be used.
Instead of considering thermal resistances you should consider the thermal impedance. The Pluto model
can be simplified as a 2nd order.

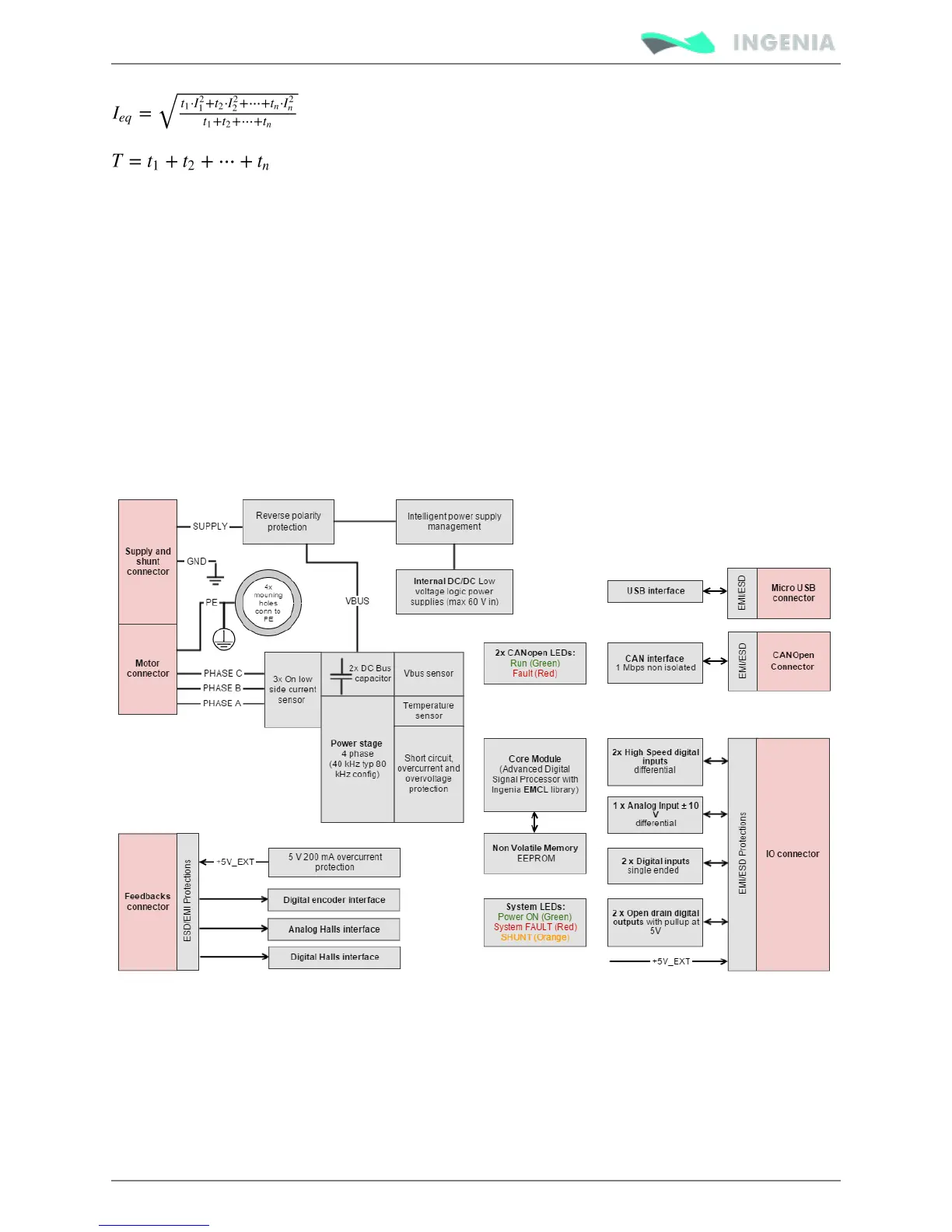

Pluto architecture
Connectors
