For safety reasons, the power supply must always provide full galvanic isolation.
Simplified battery supply connection

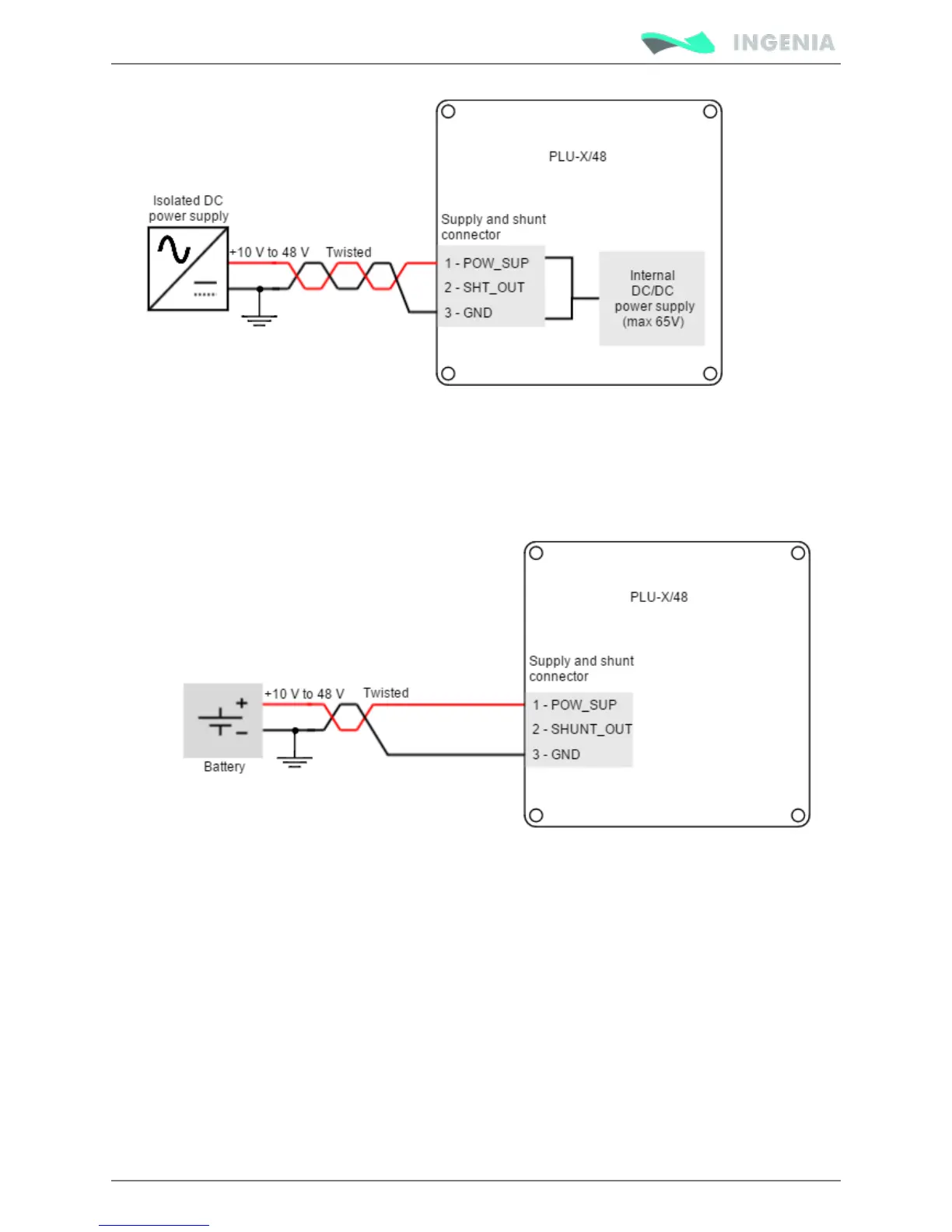

Next figure shows a simplified wiring diagram for the Pluto Servo Drive power supply from a battery.
Connection of multiple drivers
Always use "star" connections when different servo drives are connected to the same power supply.
Connect each drive to the common supply using separate wires for positive and return.
