INGENIA Pluto - PWM Command

Product Manual
69/88
Refer to Connectors position and pinout for information about connector position and pinout, and see

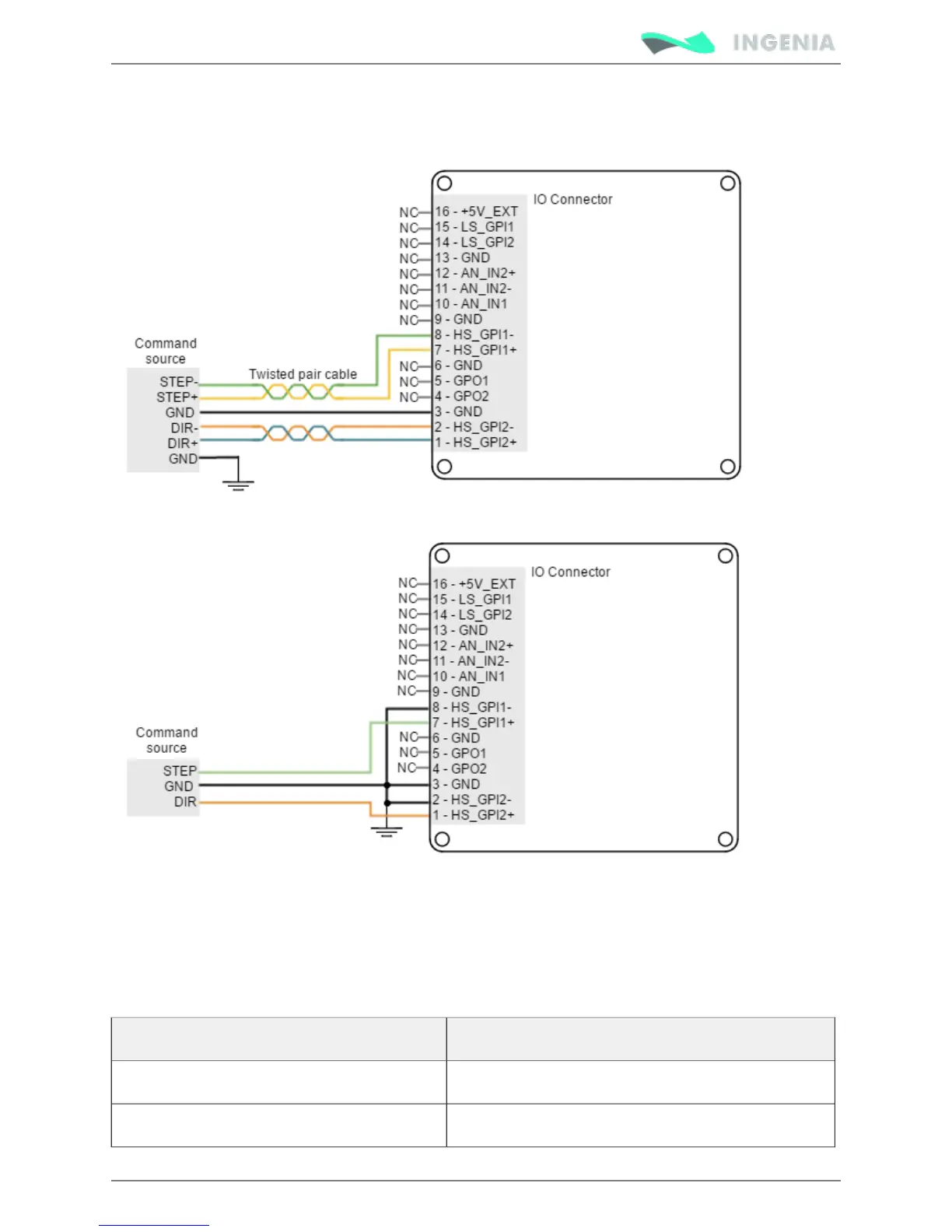

for more information about digital inputs. Next figure shows how High-speed (HS) digital inputs interface
to connect this input:
PWM command
PWM input signal specification
For this feedback interface the High Speed digital input 2 is used (HS_GPI2). Next table summarizes main
features of this input:
Specification Value
Number of inputs 1
Type of input
