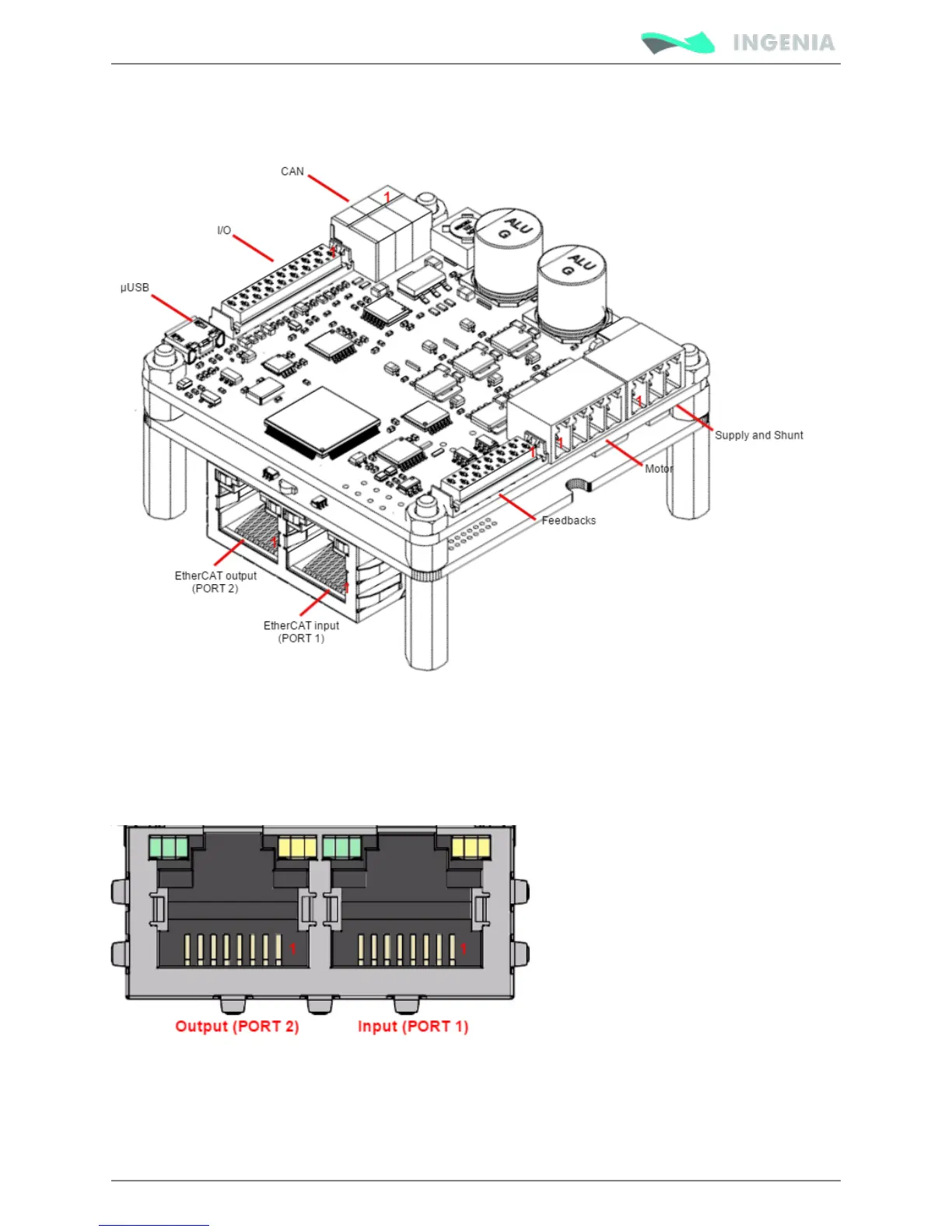

EtherCAT input and output connector
Pluto EtherCAT variant includes 2 RJ45 ports for the EtherCAT communication, the input connector (PORT
1) and the output connector (PORT 2). The pinout is shown below.
