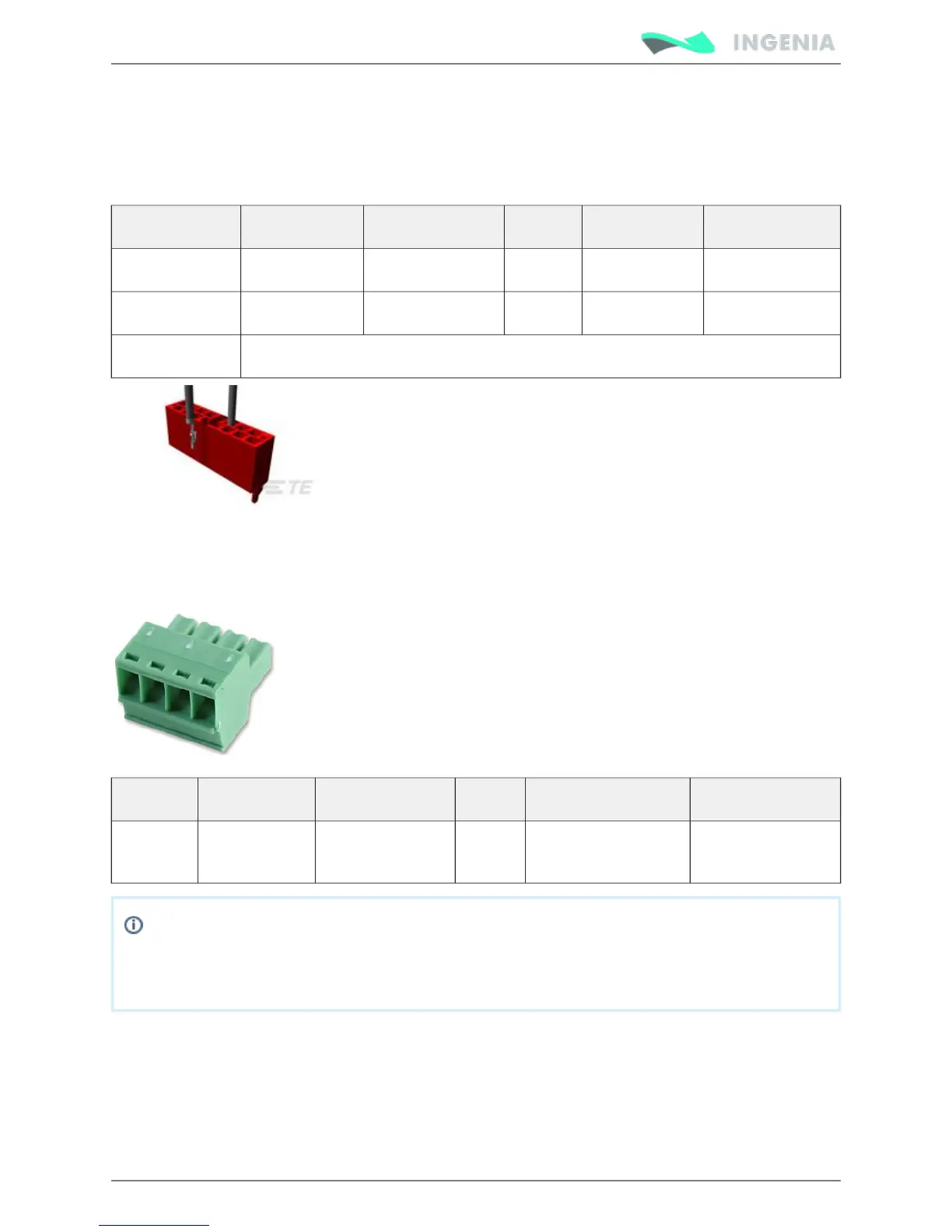

Multi-core crimped cable
Some applications require single cables with crimp terminals. This makes the wiring cleaner and is a
preferred option for volume applications. Pluto connectors include locking latches that provide audible
click during mating and ensure assembly robustness.
Manufacturer Manufacturer ID Farnell Digikey Mouser
Connector TE Connectivity 1-338095-6 - A99495-ND 571-1-338095-6
Crimp terminals TE Connectivity 1-338097-1 1291807 A99491CT-ND 571-1-338097-1
Suggested cable Use 0.2 ~ 0.5 mm² (20 ~24 AWG) flexible wires.
Motor mating connector
This pluggable terminal block mating connector provides an easy installation and connection.
Manufacturer Manufacturer ID Farnell Digikey Mouser
Connector FCI 20020004-
C041B01LF
1788433 20020004-C041B01LF-
ND
649-220004-
C041B01LF
Wire gauges
Dimension the wiring according to the application current ratings. Higher section is preferred to
minimize resistance and wire self-heating. Recommended wire section is 0.5 mm² ~ 1.5 mm².
Supply and shunt mating connector
This pluggable terminal block mating connector provides an easy installation and connection.
