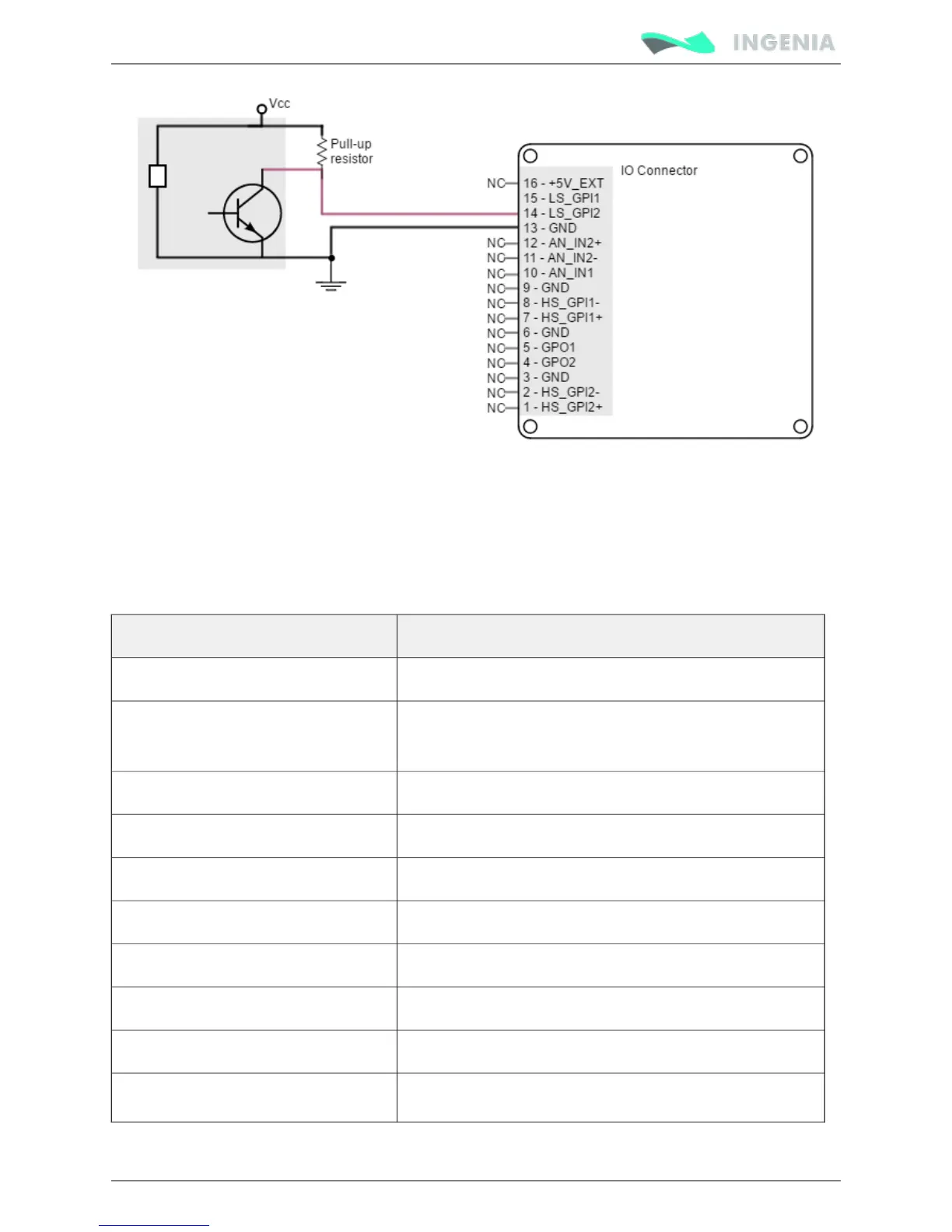

Pull up resistor value must be chosen in order to ensure ≥ 4 V at the GPI pin considering the input 30 kΩ
resistance. For Vcc 5 V, 1 kΩ is recommended. For 24 V 10 kΩ.
High speed (HS) digital inputs interface
The high-speed (HS) non-isolated digital inputs are ready for 5 V levels and tolerant to 24 V. Next table
shows their electrical specifications.
Specification Value
Number of inputs 2 (HS_GPI1, HS_GPI2)
Type of input ESD protected.
Differential and single ended.
ESD capability IEC 61000-4-2 (ESD) ± 15 kV (air), ± 8 kV (contact)
Input current 2 mA @ 5 V; 5 mA @ 15V
High level input voltage (HS_GPI+ - HS_GPI-) > 150 mV
Low level input voltage (HS_GPI+ - HS_GPI-) < -600 mV
Maximum working input voltage ±24 V
Total rising delay 65 ns
Total falling delay 55 ns
Receiver differential threshold voltage -7 V ≤ V ≤ 12 V (V common mode input voltage)
CM CM
