Pluto Inputs and outputs are not isolated. The ground of the Pluto Servo Drive and the ground of
the devices connected to I/Os must be the same. Otherwise inputs or outputs may be damaged.

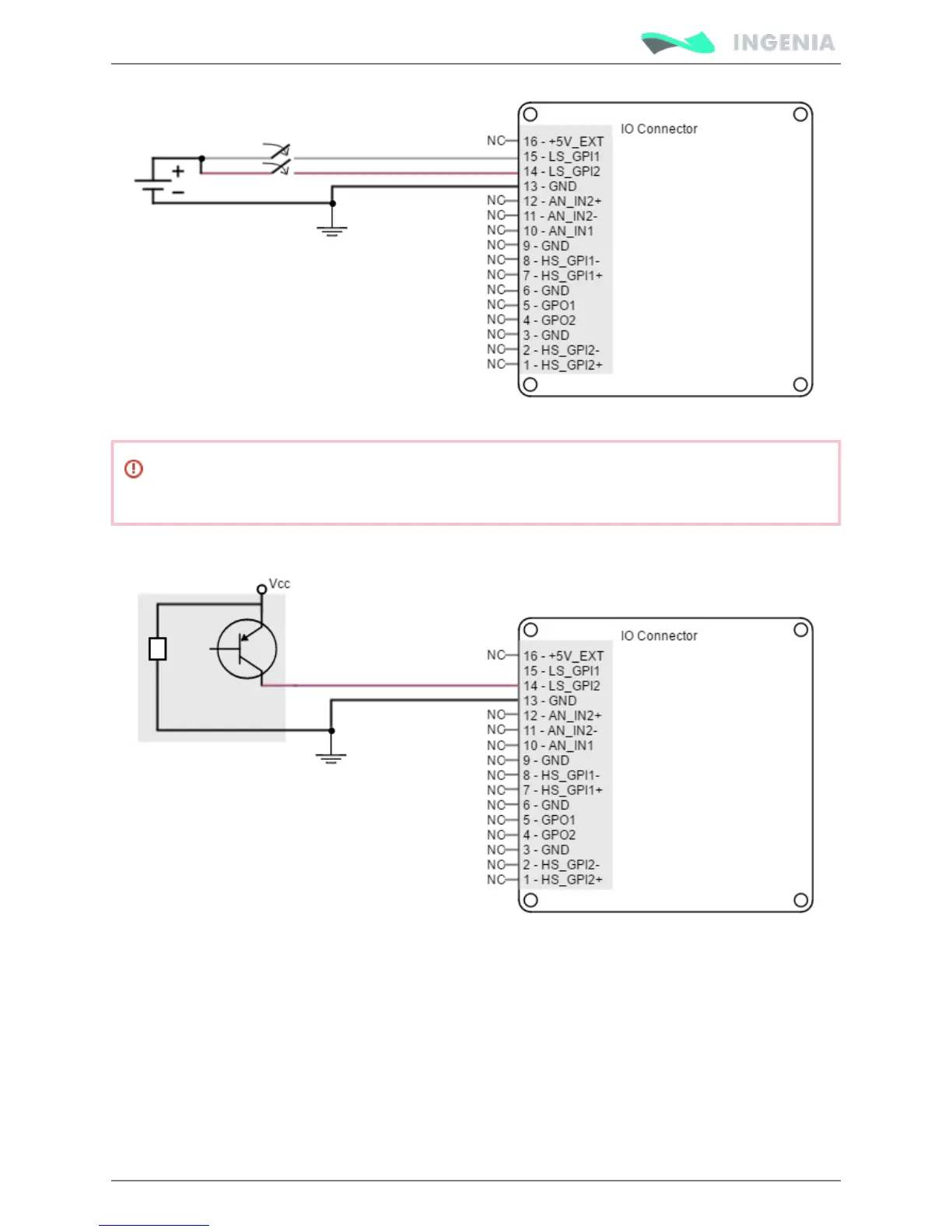

Three-wire sensors can also be connected to Pluto Servo Drive LS inputs. Next figures illustrate how to do
it for PNP and NPN 3 wire sensors (LS_GPI1 can also be used).
