Pin Name Description
1 USB_SUPPLY USB +5 V supply input. Used to power logic circuits when no external power
supply is available.
2 USB D- USB Data- line
3 USB D+ USB Data+ line
4 - Not connected
5 GND Ground
SHIELD NC Not Connected (Connector metallic shield)

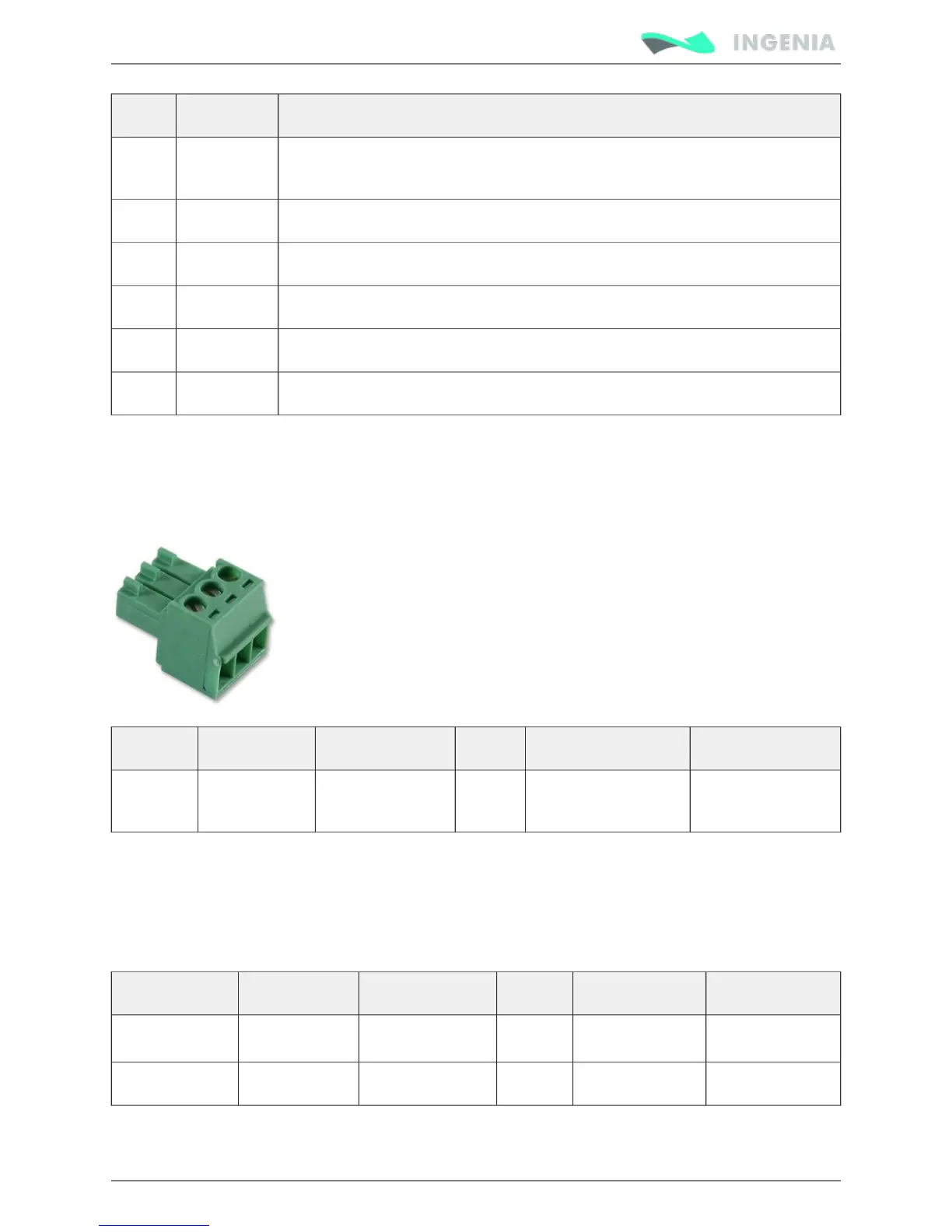

Mating connectors
CAN interface mating connector
This pluggable terminal block mating connector provides an easy installation and connection.
 Manufacturer Manufacturer ID Farnell Digikey Mouser
Connector FCI 20020004-
C031B01LF
1788432 20020004-C031B01LF-
ND
649-220004-
C031B01LF
Feedbacks mating connectors
For ribbon cable
The easiest and lowest cost option is using a flat ribbon cable with 1.27 mm pitch. Please see Pluto
.feedbacks cable
 Manufacturer Manufacturer ID Farnell Digikey Mouser
Connector TE Connectivity 8-215083-2 149093 A99460CT-ND 571-8-215083-2
Suggested cable 3M 3302/16 300SF 1369751 MC16M-300-ND 517-C3302/16SF
