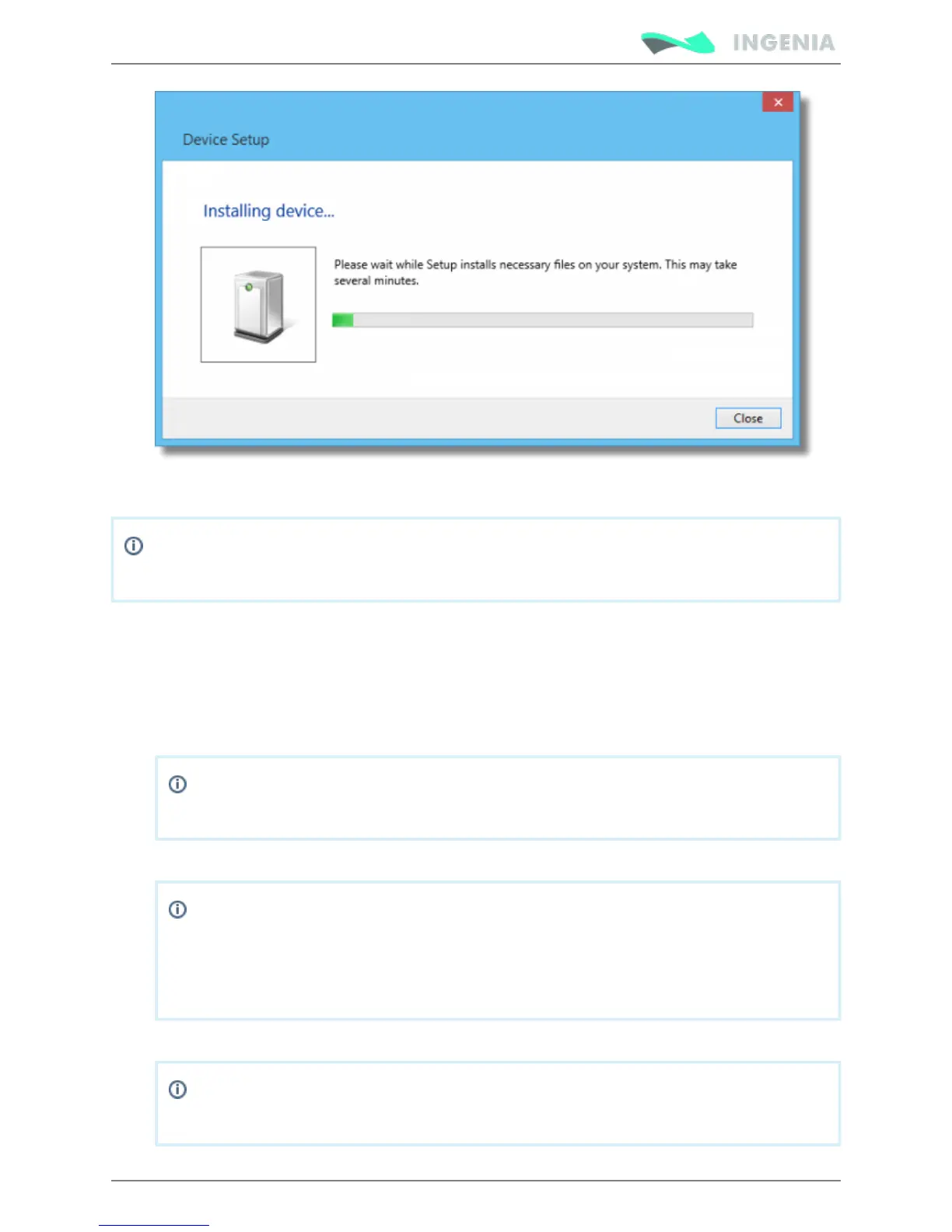

Open MotionLab from the Programs menu.
Once MotionLab has loaded it will automatically detect the connected drives. If no drives are
visible click on or check you drive wiring. Scan Again
Updating your drive Firmware
Before configuring your drive for a new application make sure you have upgraded your drive to the latest
firmware revision.
Download the latest Firmware and XDD for your drive
Make sure to download the Firmware version that matches to your drive specifications
(CANopen, Serial, EtherCAT). Loading a different version will damage your drive.
Connect the servo drive to your computer
Make sure your drive is powered up.
Once the power supply is on, the POWER LED will switch on. If the POWER LED is not on,
please check the wiring.
After a few seconds the CAN LED will start blinking.
Open MotionLab from the Programs menu
If your drive is not being detected on start up click on or check the selected Scan Again
Baudrate and wiring.
Once MotionLab detects your drive click on Update FW
