Manufacturer Part number Image Description
TE Connectivity 966067-1 6 mm pin legth,
0.5 mm (20 AWG)
2
Wire length
The distance between the Pluto Servo Drive and the power supply should be minimized when possible.
Short power cables are preferred.
For best immunity use twisted and shielded 2-wire cables for the DC power supply. This becomes crucial in
long cable applications.

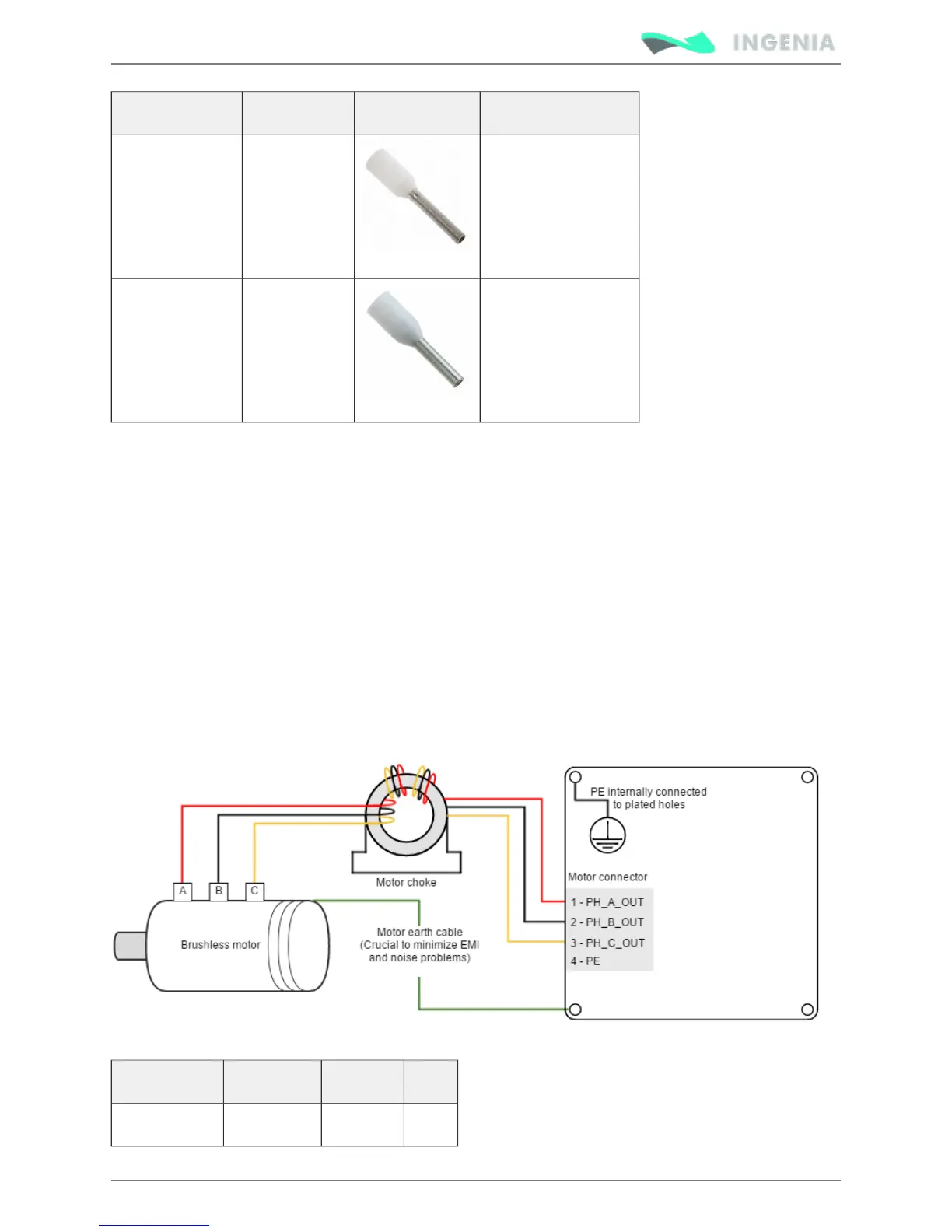

Motor output wiring
AC and DC brushless motors
Brushless motors should be connected to phases A, B and C pins of the . Note that some Motor connector
manufacturers may use different phase name conventions (see table below). Always connect the PE cable.
A with the three phases winded together is greatly recommended to minimize potential motor choke
noise issues.
Phase name Alphabetic Numeric UVW
PH_A A 1 U
