INGENIA Pluto - Page 60

Product Manual
60/88

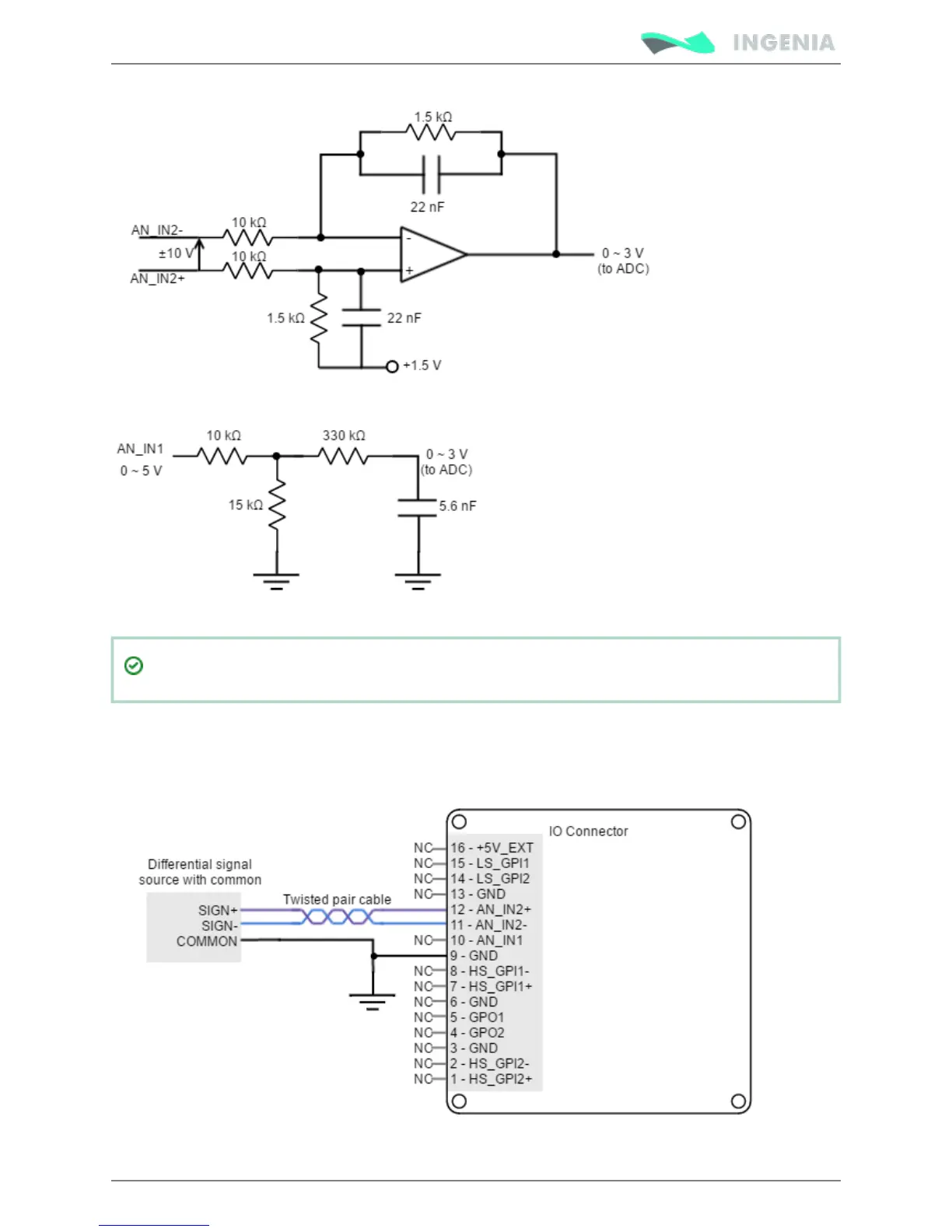

To get a 0 ~ 10 V input range in AN_IN1 input, place a 70 kΩ resistor in series with the input.
Next figure shows how to interface voltage sources to the differential analog input 2. The differential
analog input is typically used as a command source. Refer to for more Feedback wiring recommendations
information about connections and wires.
