Intel 815 - Secondary IDE Connector Requirements; Figure 61. Resistor Schematic for Secondary IDE Connectors

I/O Subsystem
R
Intel
®
815 Chipset Platform Design Guide 117
10.2.4 Secondary IDE Connector Requirements

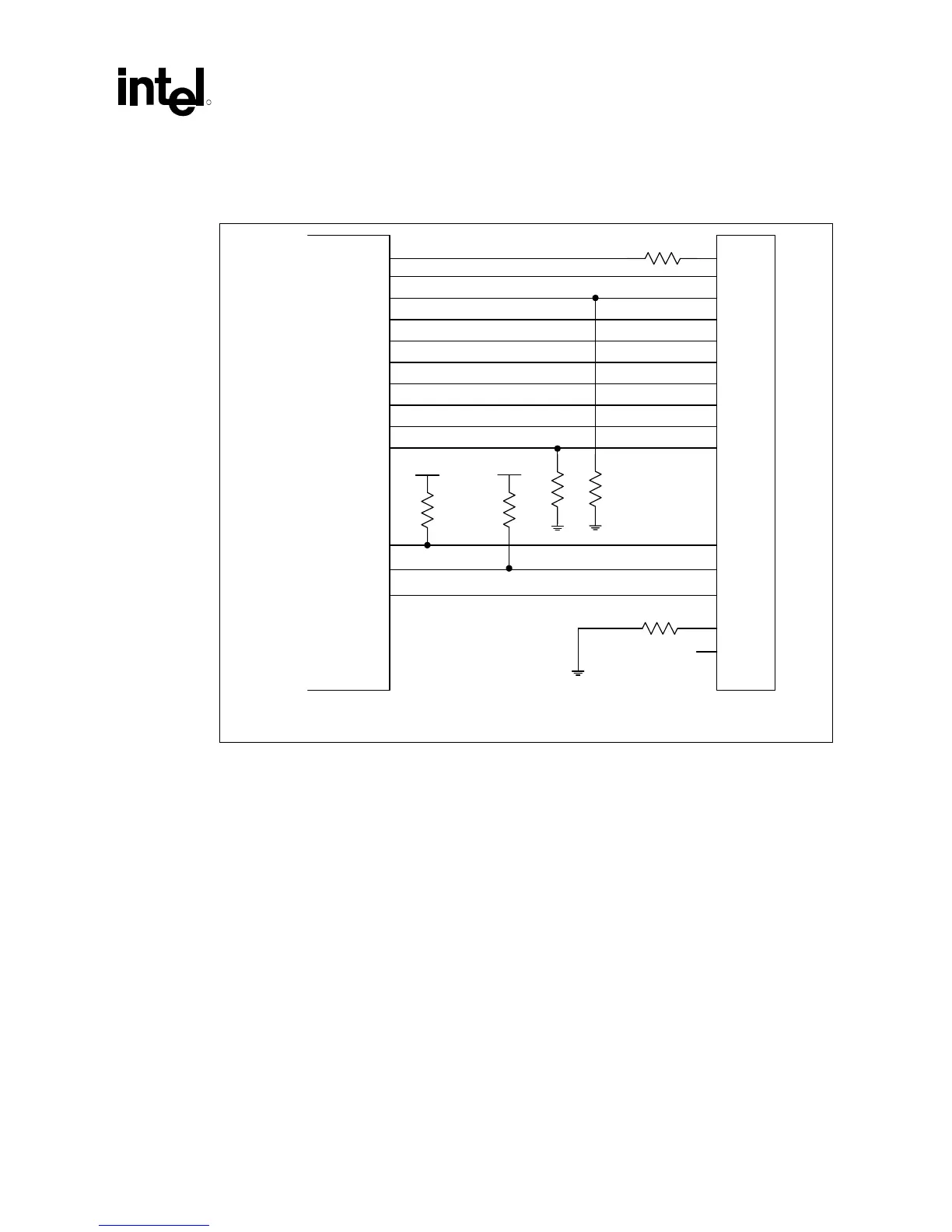

Figure 61. Resistor Schematic for Secondary IDE Connectors
5.6
k
Ω
Reset#
Secondary IDE connector
ICH
10 k Ω
SDD[15:8]
SDD[6:0]
PCIRST_BUF#*
22 - 47 Ω
SDA[2:0]
SDCS1#
SDCS3#
SDIOR#
SDIOW#
SDDREQ
SIORDY
SDD[7]
* Due to high loading, PCIRST# must be buffered.
1 k Ω
5V
470 Ω
CSEL
Pin 32
N.C.
SDDACK#
IRQ15
5V
8.2 k Ω
IDE_resistor_schem_secondar
y
• Due to the elimination of the ISA bus from the ICH, PCI_RST# should be connected to pin 1
of the IDE connectors as the IDE reset signal. Because of high loading, the PCI_RST# signal
should be buffered.
• 22 Ω to 47 Ω series resistors are required on RESET#. The correct value should be
determined for each unique motherboard design, based on signal quality.
• IRQ14 and IRQ15 each require an 8.2 kΩ pull-up resistor to VCC.
• A 1 kΩ pull-up to 5V is required on PIORDY and SIORDY.
• A 470 Ω pull-down is required on pin 28 of each connector.
• A 5.6 kΩ pull-down is required on PDREQ and SDREQ.
• The primary IDE connector uses IRQ14, and the secondary IDE connector uses IRQ15.
• There is no internal pull-up or pull-down on PDD7 or SDD7 of the ICH. Devices must not
have a pull-up resistor on DD7. It is recommended that a host have a 10 kΩ pull-down resistor
on PDD7 and SDD7 to allow the host to recognize the absence of a device at power-up (as
required by the ATA-4 specification).
