6.3.2 System Memory 3-DIMM Layout Guidelines

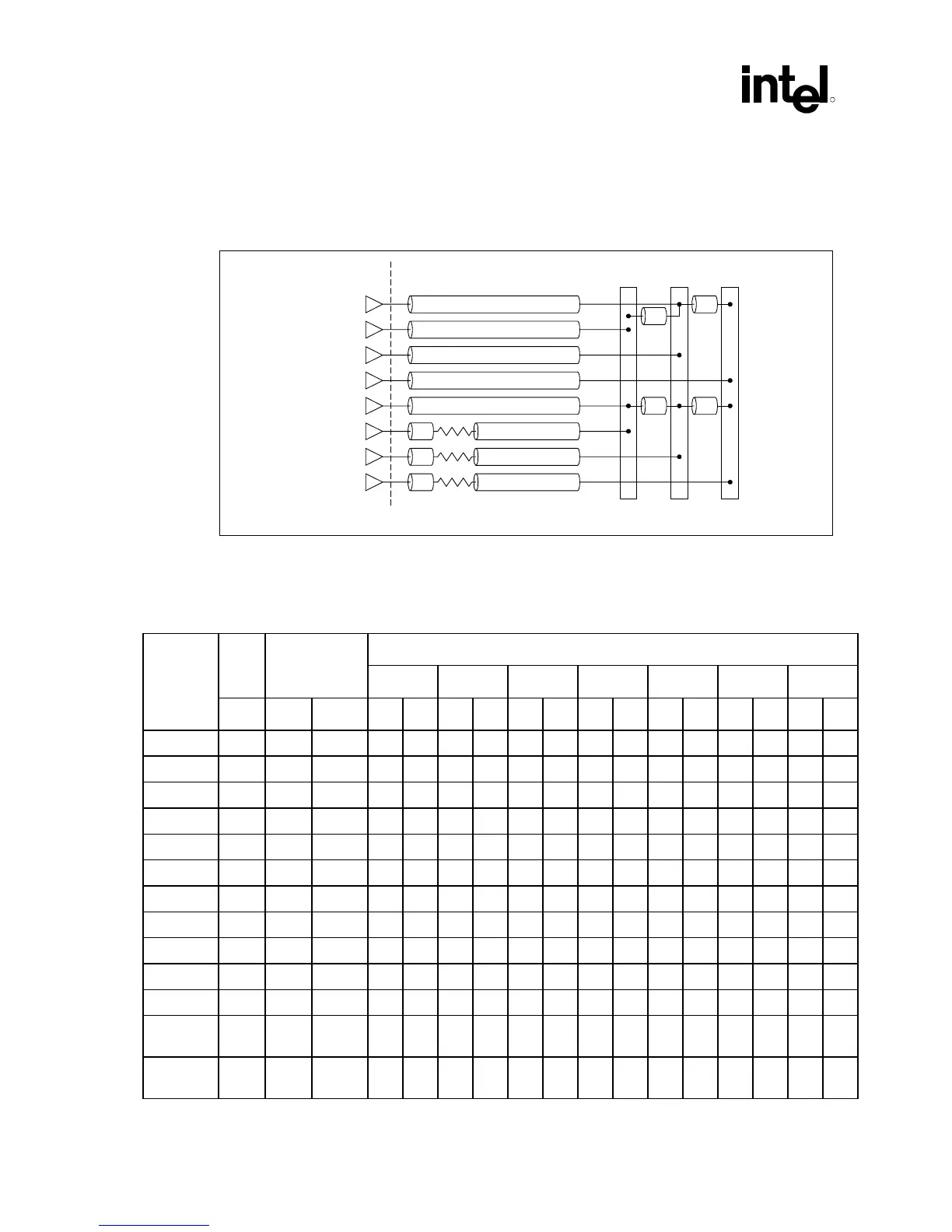

Figure 39. System Memory 3-DIMM Routing Topologies
Topology 1
82815
Topology 2
Topology 3
Topology 6
Topology 7
sys_mem_3DIMM_routing_topo
A
C
D
C
D
10 Ω
10 Ω
G
G
DIMM 0 DIMM 1
B
DIMM 2
B
Topology 4 E
Topology 5
F
Topology 8 E
10 Ω
G
BB
In addition to meeting the spacing requirements outlined in Table 19, system memory signal trace
edges must be at least 30 mils from any other non-system memory signal trace edge.
Table 19. System Memory 3-DIMM Solution Space
Trace Lengths (inches) Trace (mils)
A B C D E F G
Signal
Top. Width Spacing Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max. Min. Max.
SCS[5:4]# 4 5 10 1 4.5
SCS[3:2]# 3 5 10 1 4.5
SCS[1:0]# 2 5 10 1 4.5
SMAA[7:4] 6 10 10 2 4 0.4 0.5
SMAB[7:4]# 7 10 10 2 4 0.4 0.5
SMAC[7:4} 8 10 10 2 4 0.4 0.5
SCKE[5:4] 4 10 10 3 4
SCKE[3:2] 3 10 10 3 4
SCKE[1:0] 2 10 10 3 4
SMD[63:0] 1 5 10 1.75 4 0.4 0.5
SDQM[7:0] 1 10 10 1.5 3.5 0.4 0.5
SCAS#,
SRAS#, SWE#
5 5 10 0.4 0.5 1 4
SBS[1:0],
SMAA[12:8,3:0]
5 5 10 0.4 0.5 1 4
