Configuration Clock Source
AS_CLK Frequency (MHz)
71.5
80
100
108
125
133

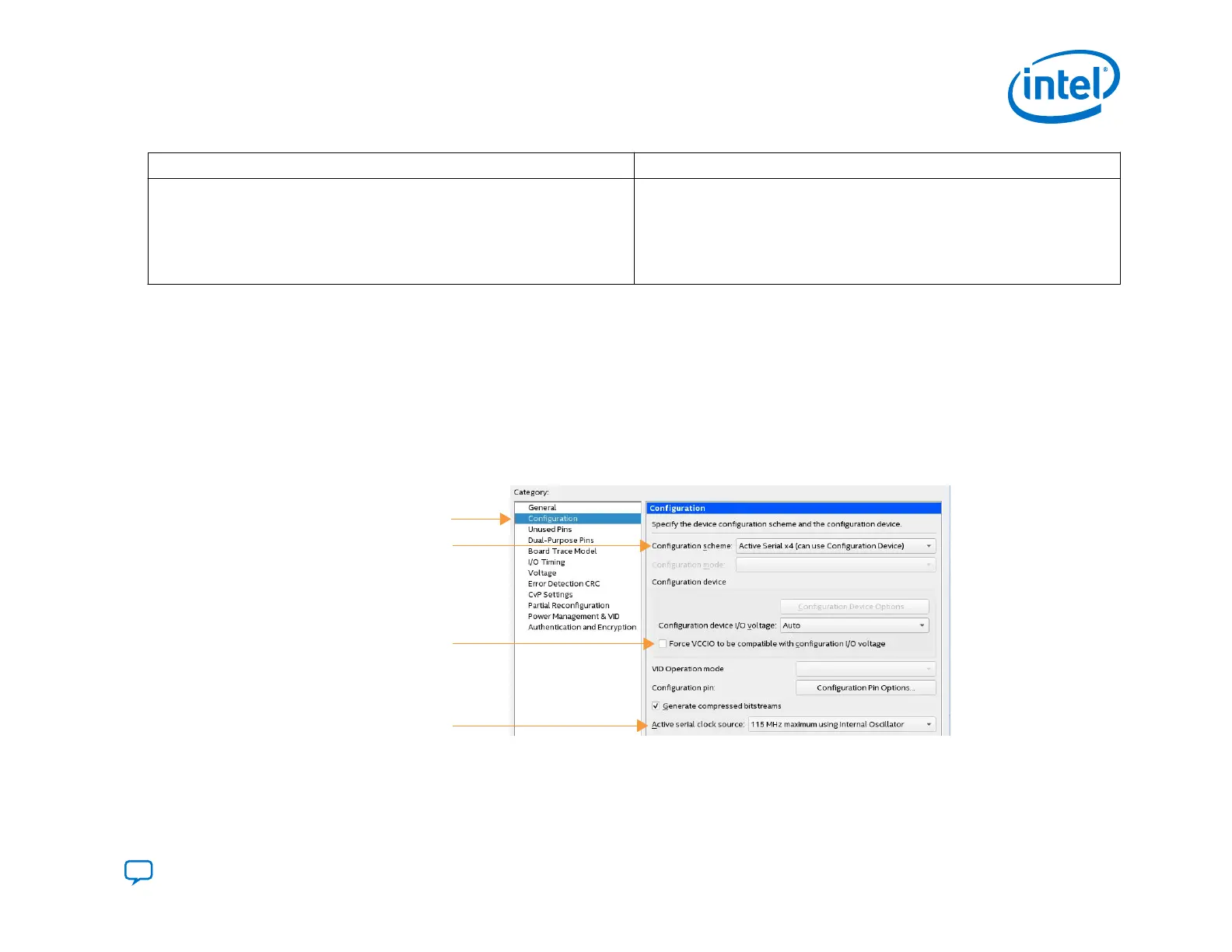

3.2.9. Active Serial Configuration Software Settings
You must set the parameters in the Device and Pin Options of the Intel Quartus Prime software when using the AS
configuration scheme.
To set the parameters for AS configuration scheme, complete the following steps:
1. On the Assignments menu, click Device.
2. In the Device and Pin Options select the Configuration category.
a. Select Active Serial x4 from the Configuration scheme drop down menu.
Configuration
Configuration
scheme
I/O voltage
Active serial
clock source
b. Select Auto or 1.8 V in the Configuration device I/O voltage drop-down list.
3. Intel Agilex Configuration Schemes
UG-20205 | 2019.10.09
Send Feedback
Intel
®
Agilex
™
Configuration User Guide
101
