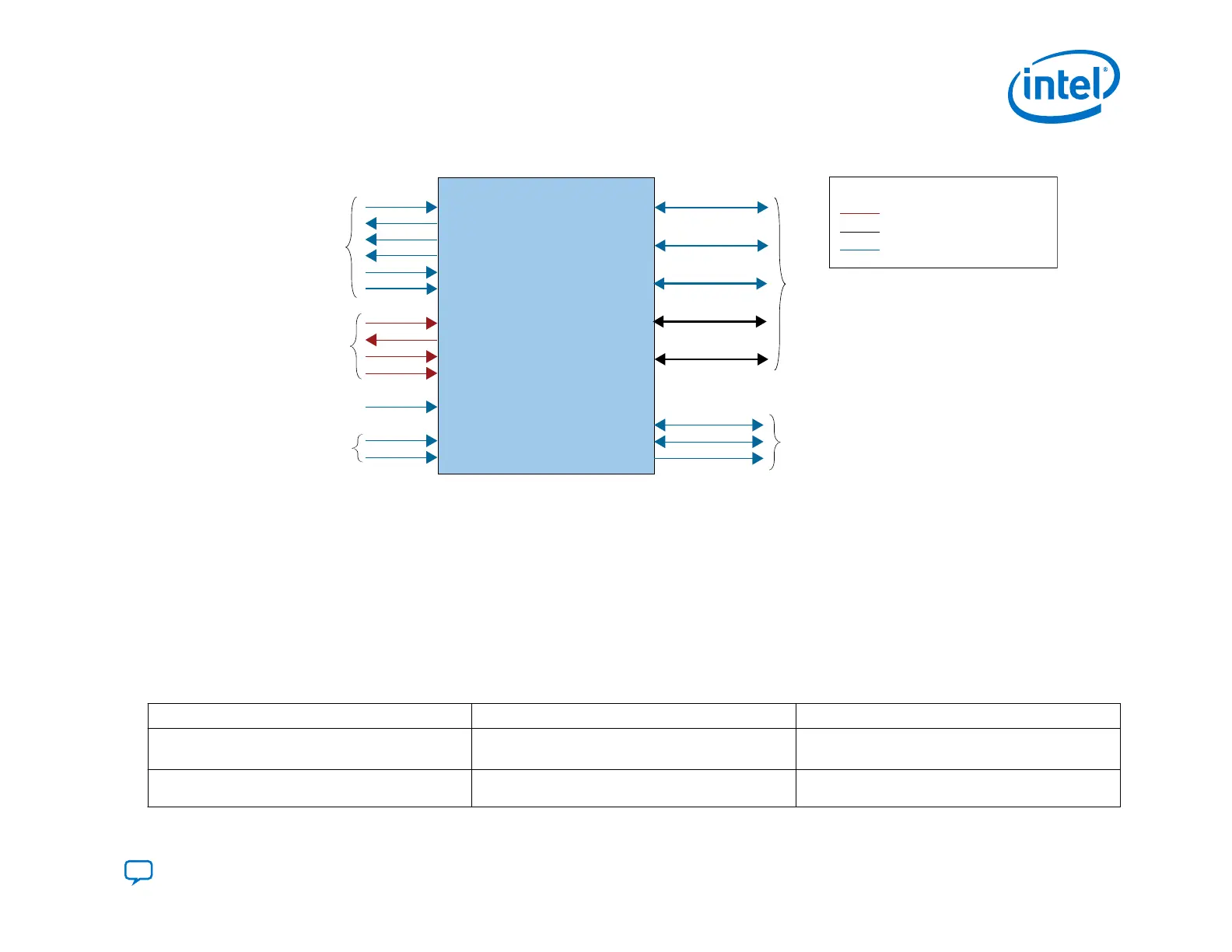

Figure 1. Intel Agilex Configuration Interfaces
nCONFIG
nSTATUS
CONF_DONE
INIT_DONE
OSC_CLK_1
MSEL[2:0]
TCK
TDO
TMS
TDI
DIRECT_TO_FACTORY
VCCFUSEWR_SDM
VCCBAT
Intel Agilex FPGA
SDMMC
Avalon-ST x8
CvP
AS x4 (QSPI)
Configuration
Control
JTAG
Remote
System
Update (RSU)
Security
PWRMGT_SDA
PWRMGT_SCL
PWRMGT_ALERT
SmartVID
Select
One
Avalon-ST x16 or x32
Key
Fixed Pins
GPIO and Dual Purpose
Configuration Specific or Dedicated
Related Information
SDM Pin Mapping on page 26
Intel Agilex Power Management User Guide
1.1.2. Intel Download Cables Supporting Configuration in Intel Agilex Devices
Intel provides the following cables to download your design to the Intel Agilex device on the PCB. Download cables support
prototyping activity by providing detailed debug messages via Intel Quartus Prime Programmer. You must use Intel download
cables for advanced debugging using the Signal Tap logic analyzer or the System Console tools.
Table 2. Intel Agilex-Supported Download Cable Capabilities
Download Cable Protocol Support Intel Agilex Device Cable Connection to PCB
Intel FPGA Download Cable II (formerly the USB-Blaster
II)
JTAG, AS 10-pin female plug
3M Part number: 2510-6002UB
Intel FPGA Ethernet Cable (formerly the Ethernet
Blaster II)
JTAG, AS 10-pin female plug
1. Intel
®
Agilex
Configuration User Guide
UG-20205 | 2019.10.09
Send Feedback
Intel
®
Agilex
Configuration User Guide
9
