Table 9. Output File Types
Programming File Type Extension Description
Programmer Object File
.pof The .pof is a proprietary Intel FPGA file type. Use the PFL II IP core via a JTAG header to write
the .pof to an external CFI flash or serial flash device.
Raw Binary File
.rbf You can also use the .rbf with the Avalon-ST configuration scheme and an external host such as
a CPU or microcontroller.
You can program the configuration bitstreams or data in the .rbf file directly into flash via a
third-party programmer. Then, you can use an external host to configure the device with the
Avalon-ST configuration scheme.
If you choose a third-party microprocessor for Avalon-ST configuration, refer to the Avalon Streaming Interfaces in the Avalon
Interface Specifications for protocol details.
Note: Intel Agilex devices using Avalon ST x32 configuration and DDR x72 external memory interfaces are limited to a maximum of
three memory interfaces. The Avalon ST x8 and x16 can support up to four DDR x72 external memory interfaces.

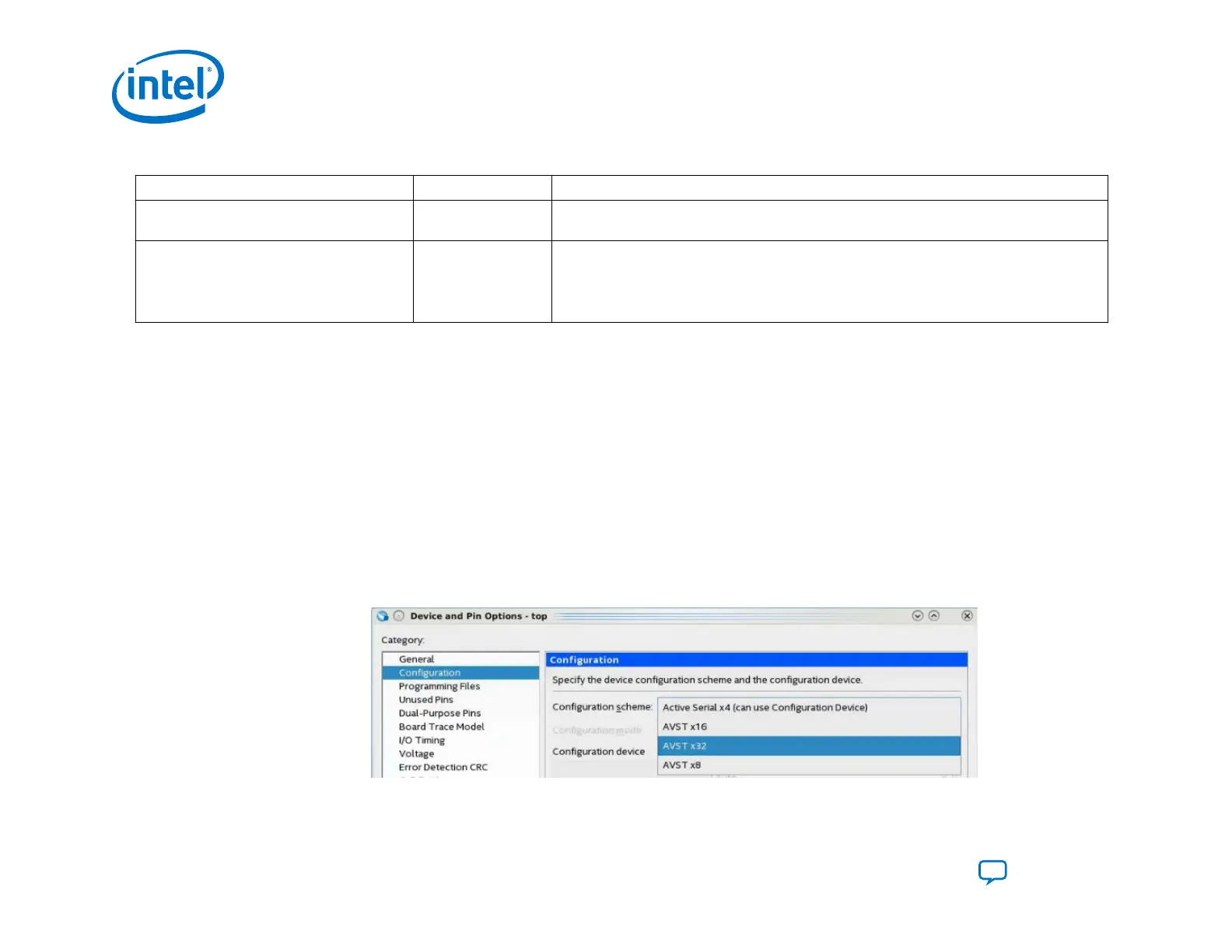

3.1.2. Enabling Avalon-ST Device Configuration
You enable the Avalon-ST device configuration scheme in the Intel Quartus Prime software.
Complete the following steps to specify an Avalon-ST interface for device configuration.
1. On the Assignments menu, click Device.
2. In the Device and Pin Options dialog box, select the Configuration category.
3. In the Configuration window, in the Configuration scheme dropdown list, select the appropriate Avalon-ST bus width.
4. Click OK to confirm and close the Device and Pin Options dialog box.
3. Intel Agilex Configuration Schemes
UG-20205 | 2019.10.09
Intel
®
Agilex
™
Configuration User Guide
