Intel Agilex User Manual

Related Information
AS Configuration Timing in Intel Agilex Devices
For timing parameter minimum, typical, and maximum values.
3.2.1. AS Configuration Scheme Hardware Components and File Types
You use the following components to implement the AS configuration scheme:
• Quad SPI flash memory
• The Intel FPGA Download Cable II to connect the Intel Quartus Prime Programmer to the PCB.

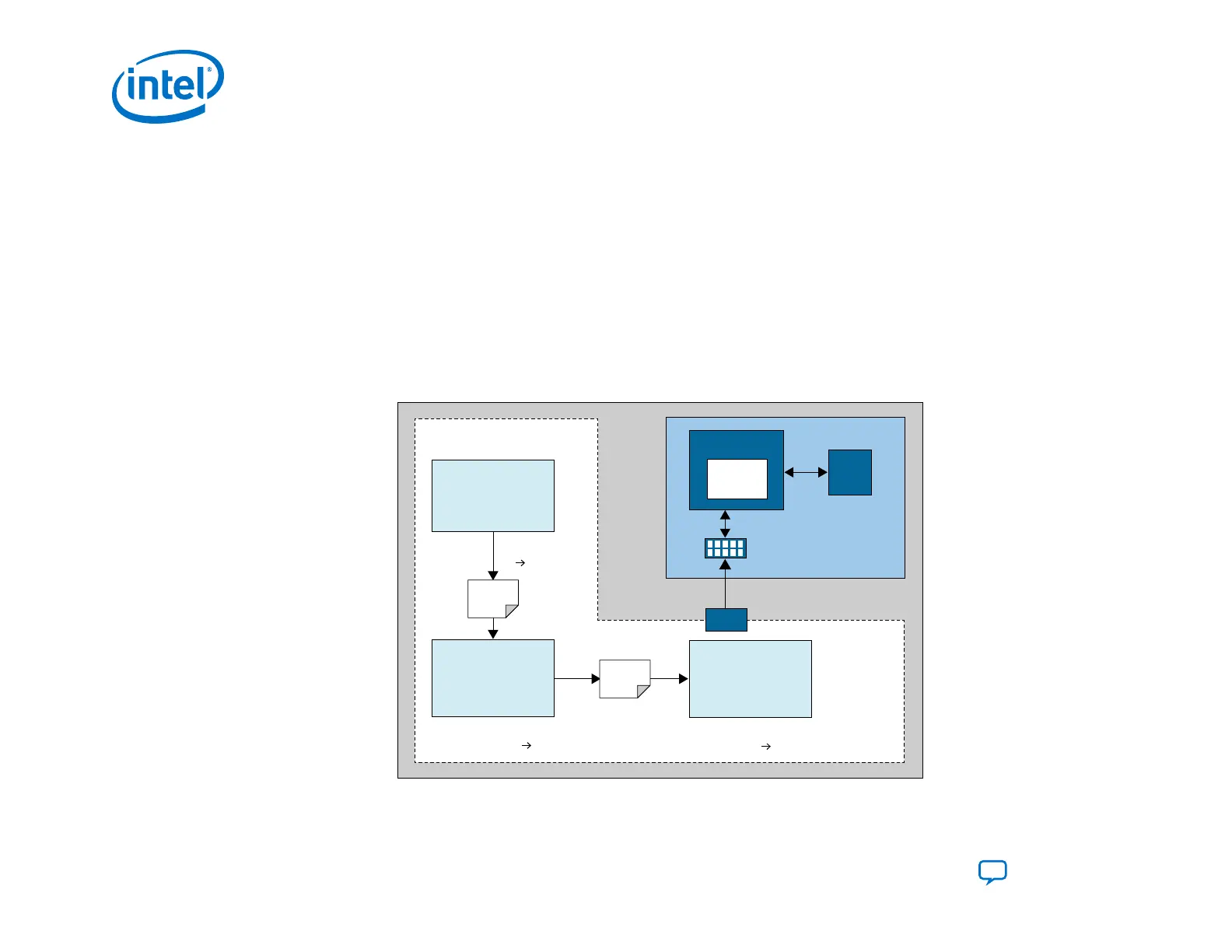

The following block diagram illustrates the components and design flow using the AS configuration scheme.
Figure 34. Components and Design Flow for .jic Programming
Quartus Software flow on PC
Quartus Prime
Programmer
10 pin JTAG header
Intel FPGA Download Cable II
QSPI
Intel FPGA
SDM
Flash
Board
Quartus Prime:
File Programming File Generator
Quartus Prime:
File Start Compile
Quartus Prime:
Tools Programming
Quartus Prime
Programming File
Generator
Quartus Prime
Compilation
USB
SOF
JIC
3. Intel Agilex Configuration Schemes
UG-20205 | 2019.10.09
Intel
®
Agilex
™
Configuration User Guide
Send Feedback
88
