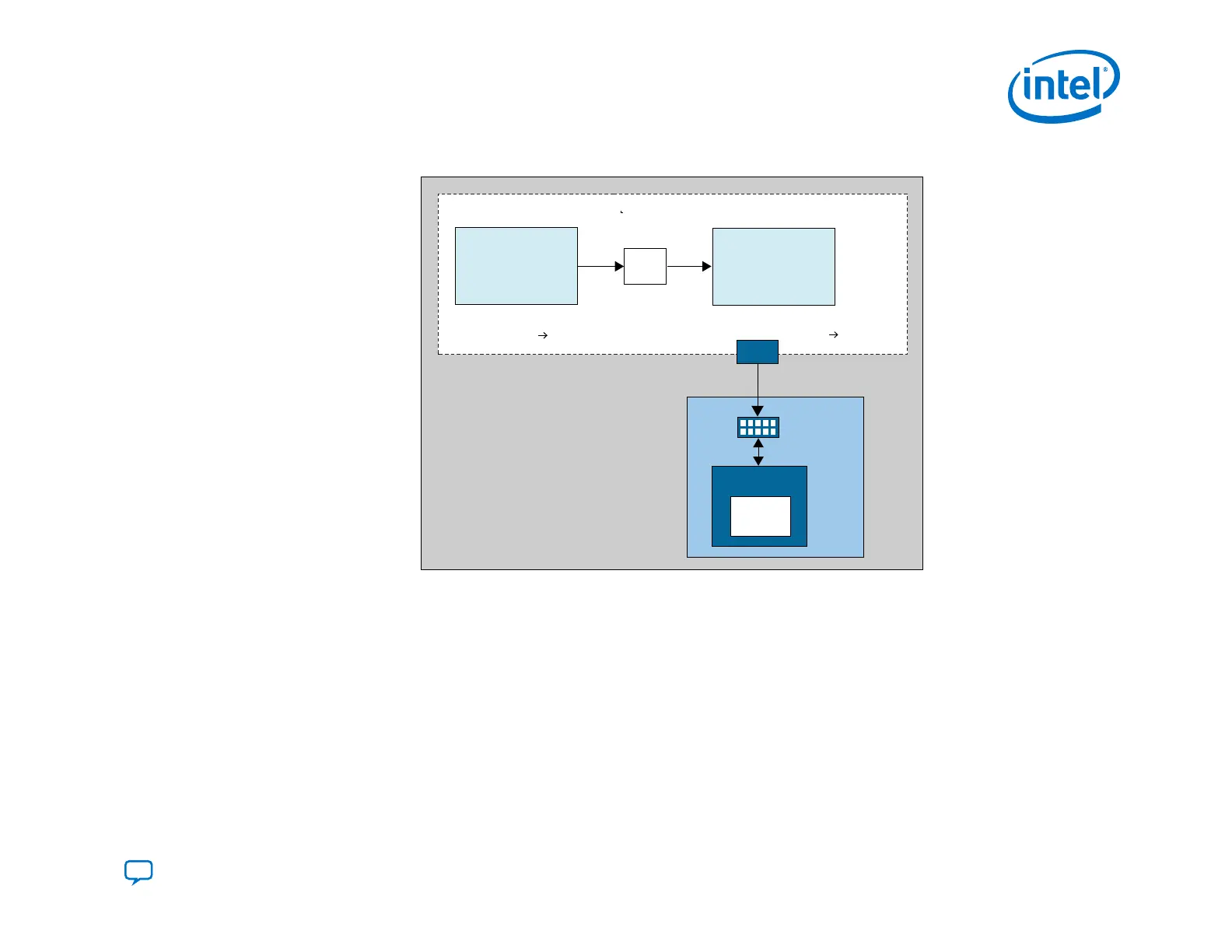

Figure 49. Components and Design Flow for JTAG Programming
Quartus Software flow on PC
Quartus Prime
Programmer
SOF
10 pin
JTAG header
Intel FPGA Download Cable II
Intel FPGA
SDM
PCB
Quartus Prime:
File Start Compile
Quartus Prime:
Tools Programming
Quartus Prime
Compilation
10 pin
3.4.2. JTAG Device Configuration
To configure a single device in a JTAG chain, the programming software sets the other devices to bypass mode. A device in
bypass mode transfers the programming data from the TDI pin to the TDO pin through a single bypass register. The
configuration data is available on the TDO pin one clock cycle later.
You can configure the Intel Agilex device through JTAG using a download cable or a microprocessor.
3. Intel Agilex Configuration Schemes
UG-20205 | 2019.10.09
Send Feedback
Intel
®
Agilex
™
Configuration User Guide
115
