Intel Agilex User Manual

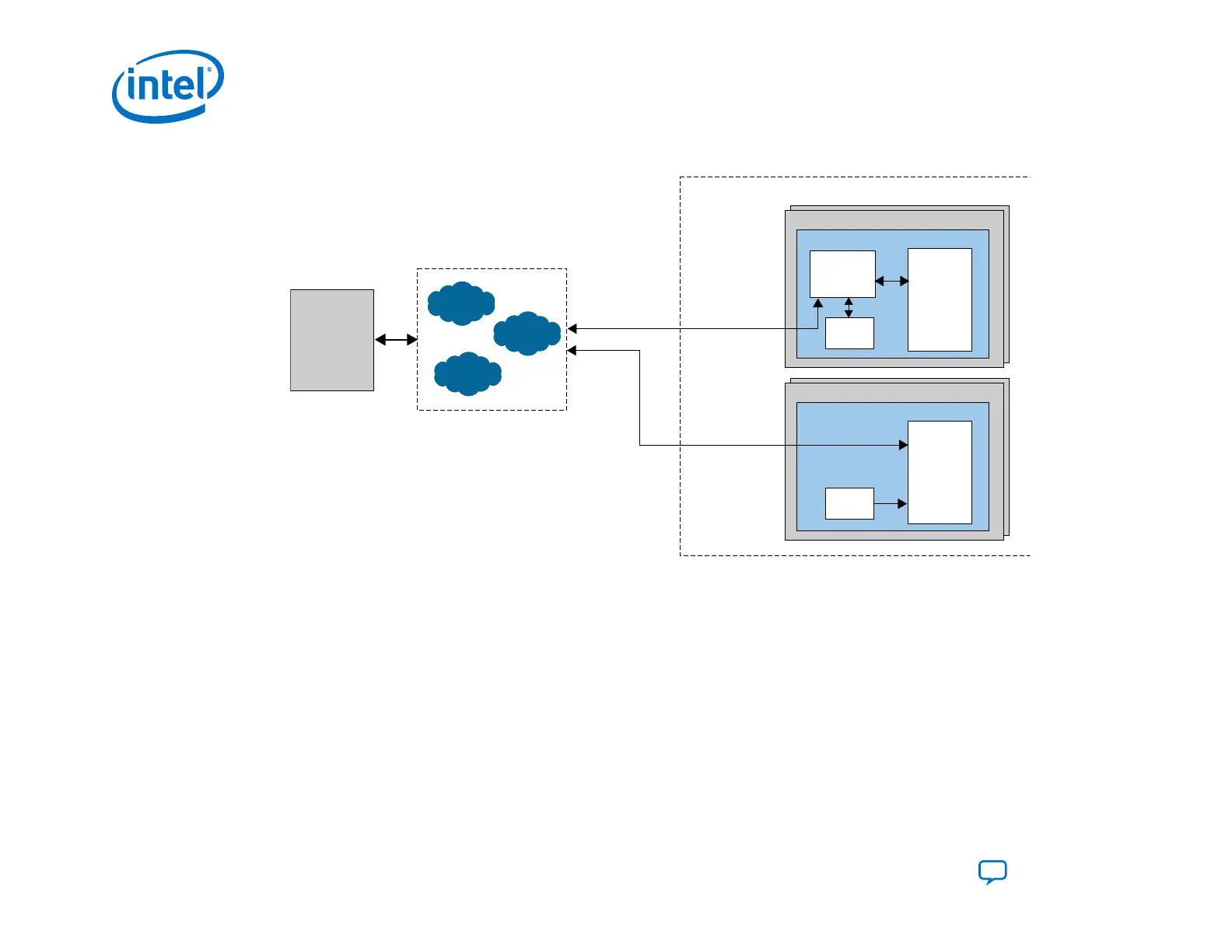

Figure 53. Typical Remote System Update Process
Development
Location
System
Remote Location
Network
RSU Setup
Active FPGA
Configuration
RSU Setup
Passive FPGA
Configuration
Board
Intel FPGA
Host
Quad
Flash
System
Board
Quad
Flash
Data
Remote Connection
Remote Connection
Data
Data
Intel FPGA
Note: An Intel Agilex version of the Intel Stratix 10 SoC Remote System Update (RSU) User Guide is not yet available. The RSU SoC
implementation in Intel Agilex is very similar to the implementation in Intel Stratix 10.
