Intel Agilex User Manual

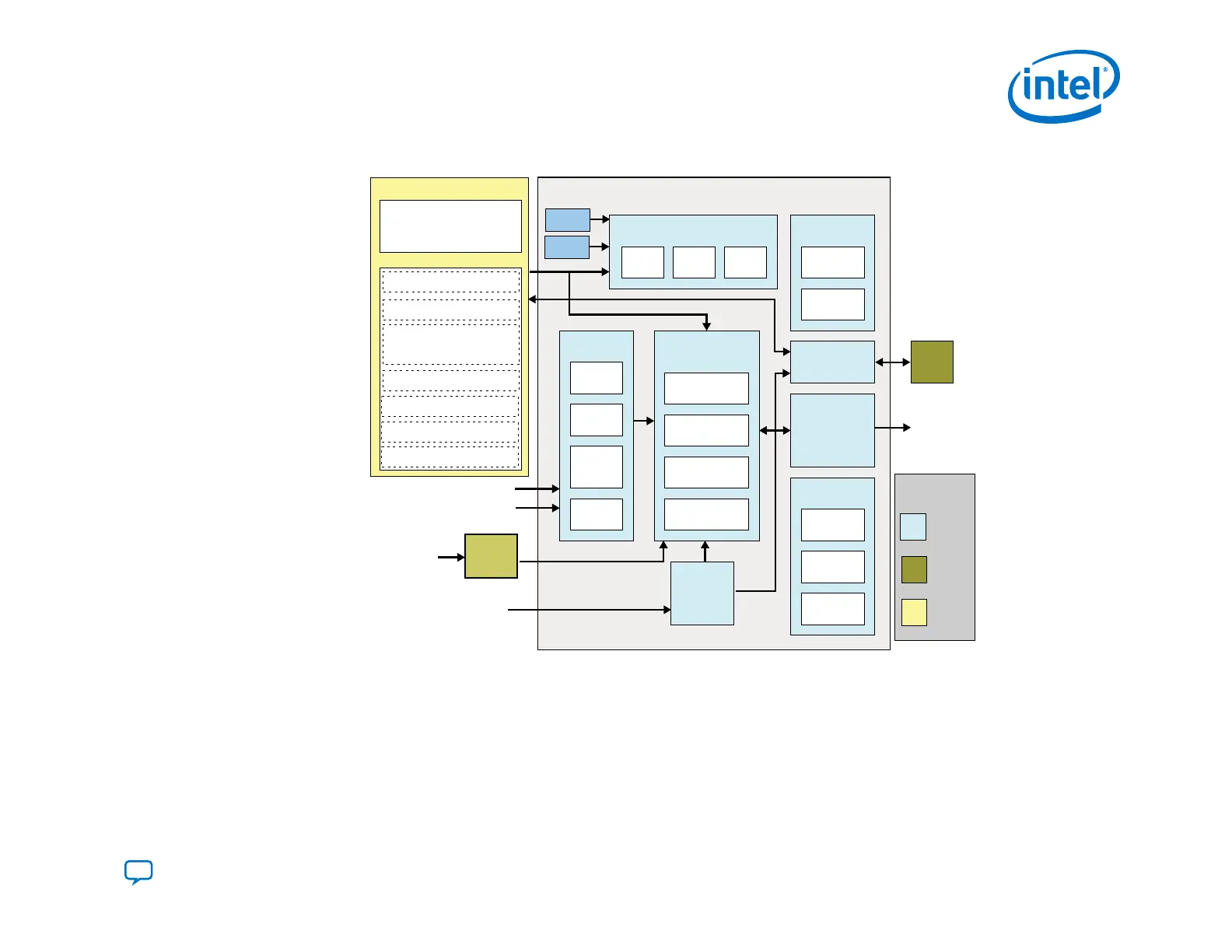

Figure 3. SDM Block Diagram
Secure Device Manager
JTAG
SmartVID
Avalon-ST
Sink
AS
SD/MMC
MCU MCU MCU
AES 256
SHA 256/384
ECDSA 256/384
Decompression
Temperature
Voltage
Peripherals
Lockstep Processors
Crypto IP
Sensors
PUF
BBRAM
Key Vault
Configuration
Network
Interface
FuseJTAG Pins
SDM Pins
To Configuration
Sectors for
FPGA configuration
Dual-Purpose I/O Pins
PCIe
Hard IP
PCIe
Link
SDM
Communication
Hub
FPGA Core
HPS
Mailbox
Boot ROM
SEU Detection
Chip ID
Serial Flash
Mailbox Client IP
Partial Reconfiguration (PR) IP
CRAM
Hard IP
in SDM
External
Hard IP
Soft IP
Key
External PR Controller IP
Temperature Sensor
Voltage Sensor
Here is an overview of the additional functions the SDM controls:
• The Power Management block consists of a voltage and temperature sensor which enables the SmartVID feature via an
external PMBus voltage regulator when you select -V and -E devices.
• The AES/SHA and other Crypto Accelerator blocks implement secure configuration and boot.
• The AS and SD/MMC configuration flash controllers enable active configuration schemes via dedicated SDM pins.
1. Intel
®
Agilex
™
Configuration User Guide
UG-20205 | 2019.10.09
Send Feedback
Intel
®
Agilex
™
Configuration User Guide
13
