9.

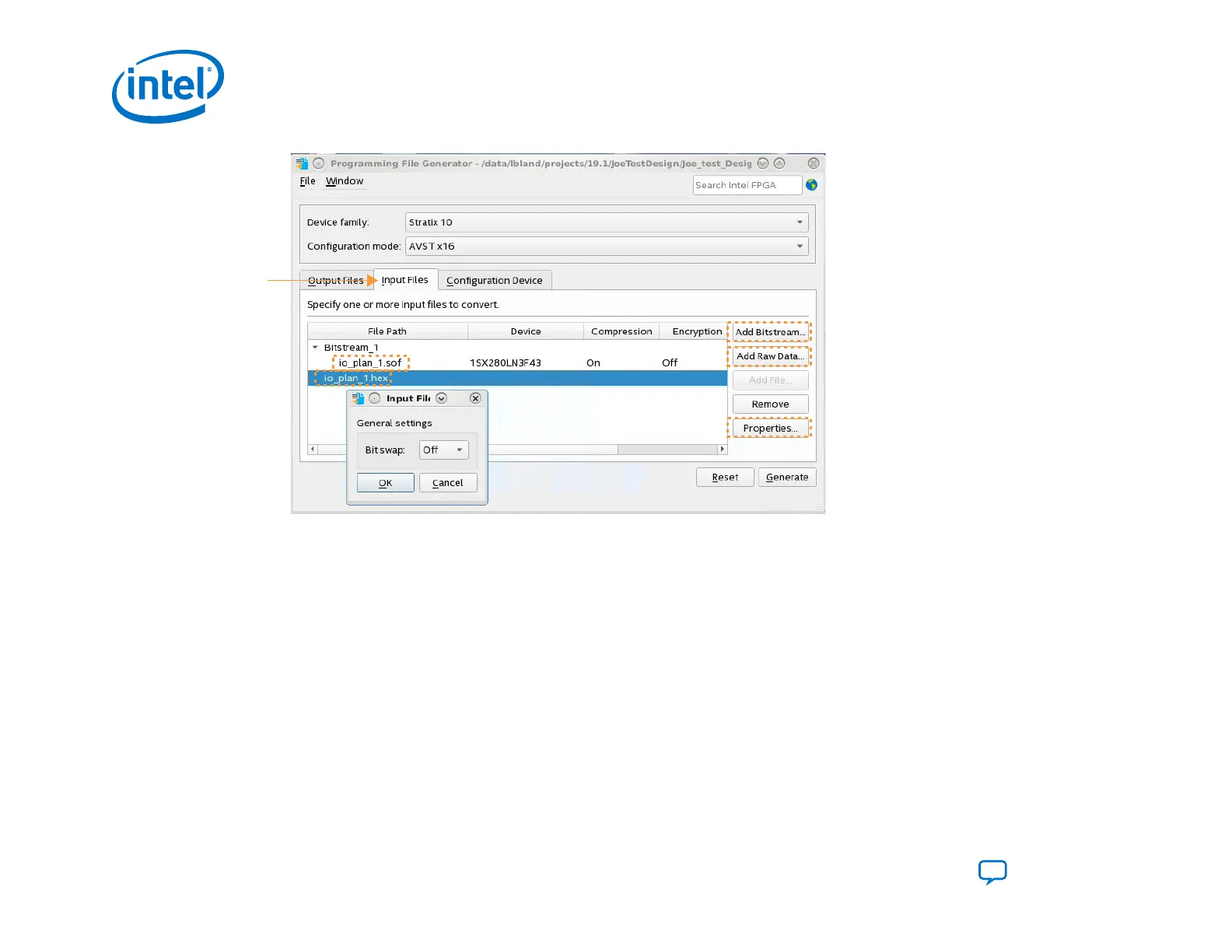

To include raw data, click Add Raw Data and specify a Hexadecimal (Intel-Format) Output File (.hex) or binary (.bin)
file. This step is optional.
10. On the Configuration Device tab, click Add device. The Add Device dialog box appears. Select your flash device from
the drop-down list of available parallel flash devices.
11. Click OPTIONS and then Edit. In the Edit Partition dialog box specify the Start address of the Options in flash
memory. This address must match the address you specify for What is the byte address of the option bits, in hex?
when specifying the PFL II IP parameters. Ensure that the option bits sector does not overlap with the configuration data
pages and that the start address is on an 8 KB boundary.
3. Intel Agilex Configuration Schemes
UG-20205 | 2019.10.09
Intel
®
Agilex
™
Configuration User Guide
Send Feedback
74
