3.5. The HSMC Tab
The HSMC tab allows you to test the CMOS port.

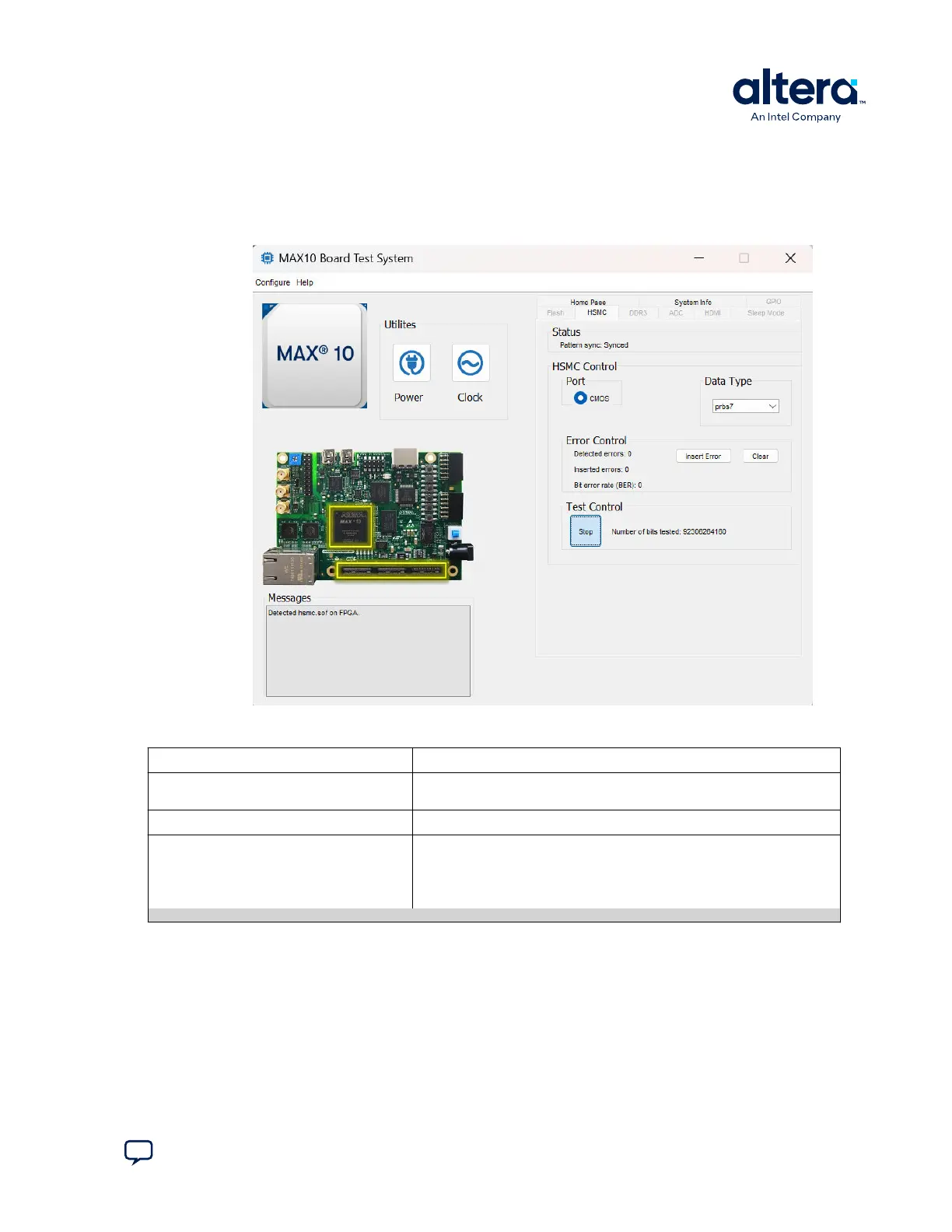

Figure 10. The HSMC Tab
Table 6. Controls on the HSMC Tab
Control Description
Status Pattern sync: Shows the pattern synced or not synced state. The pattern
is considered synced when the start of the data sequence is detected.
Port CMOS: The CMOS port is available for tests.
Data Type The following data types are available for analysis:
• prbs7: Selects pseudo-random 7-bit sequences.
• prbs15: Selects pseudo-random 15-bit sequences.
• prbs23: Selects pseudo-random 23-bit sequences.
continued...
