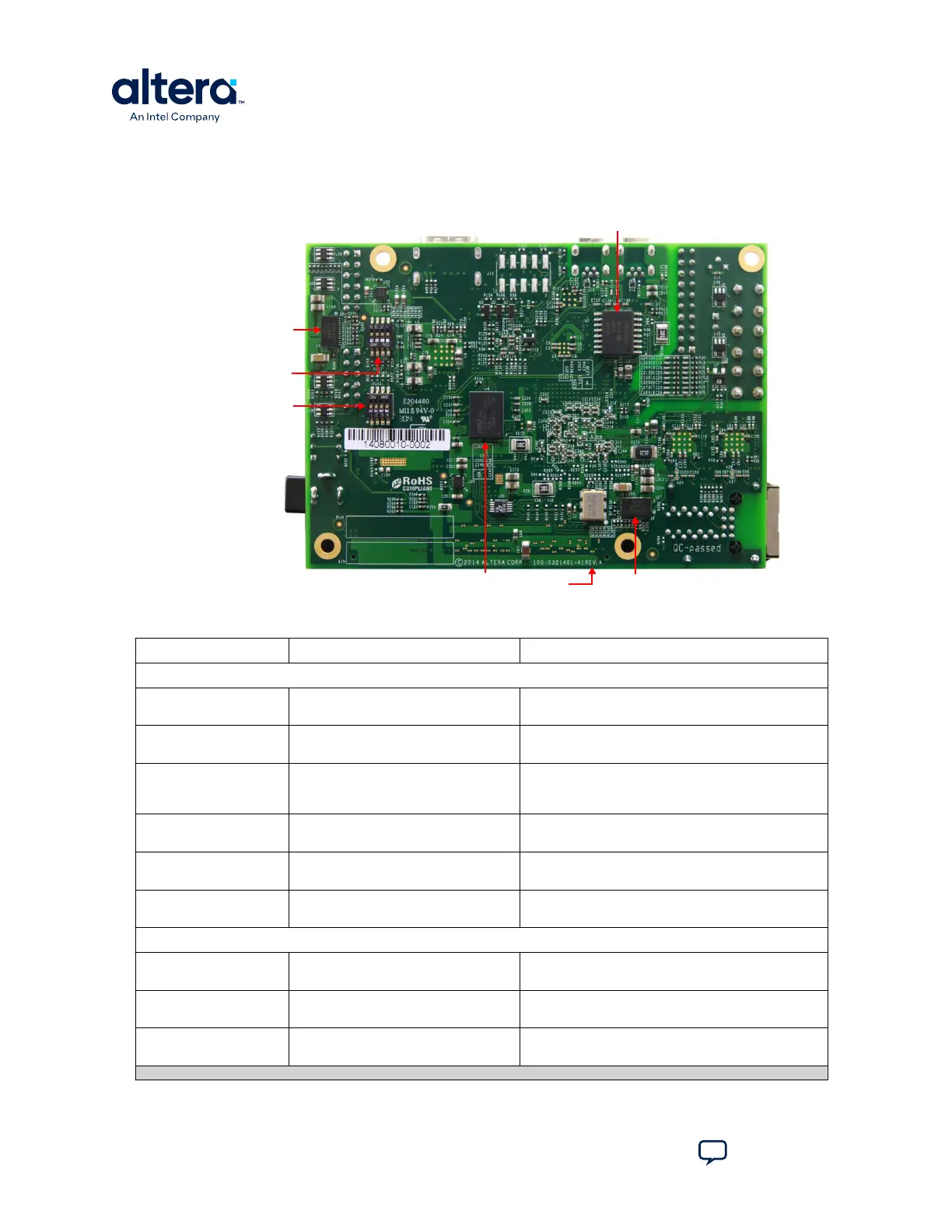

Figure 19. Components in MAX 10 FPGA Development Kit (Bottom View)
Note: To determine the revision of your board, look for the serial number at the bottom of the board.
DDR3 128Mx8
BOARD
REVISON
SDRAM (U6)
USER DIP SWITCH
(SW2)
QUAD SPI FLASH
USER DIP SWITCH
(SW1)
ENPIRION
EN6337
ENPIRION
EN6337
Table 14. MAX 10 FPGA Development Kit—Board Components
Board Reference Type Description
Featured Devices
U1 FPGA MAX 10 FPGA 10M50DAF484I6G, 50K LEs, F484
package.
U13 CPLD MAX II EPM1270 256-MBGA, 2.5 V/3.3 V, VCCINT for
On-Board Intel FPGA Download Cable II.
U17 Power Regulator Enpirion EN2342QI, PowerSoC voltage-mode
synchronous step-down converter with integrated
inductor.
U22, U23, U27 Power Regulator Enpirion EN6337QI, PowerSoC DC-DC step-down
converters with integrated inductor.
U26 Power Regulator Enpirion EP5358LUI, 600 mA PowerSoC DC-DC step-
down converters with integrated inductor.
U24, U25 Power Regulator Enpirion EP5358HUI, 600 mA PowerSoC DC-DC step-
down converters with integrated inductor.
Configuration and Setup Elements
J12 On-Board (Embedded) Intel FPGA
Download Cable II
Type-B USB connector for programming and
debugging the FPGA.
J14 10-pin header Optional JTAG direct via 10-pin header for external
download cables.
J20 2x10-pin header 16 dual-purpose ADC channels are connected to the
2x10 header.
continued...
