15

INSTALLING THE ANTENNA

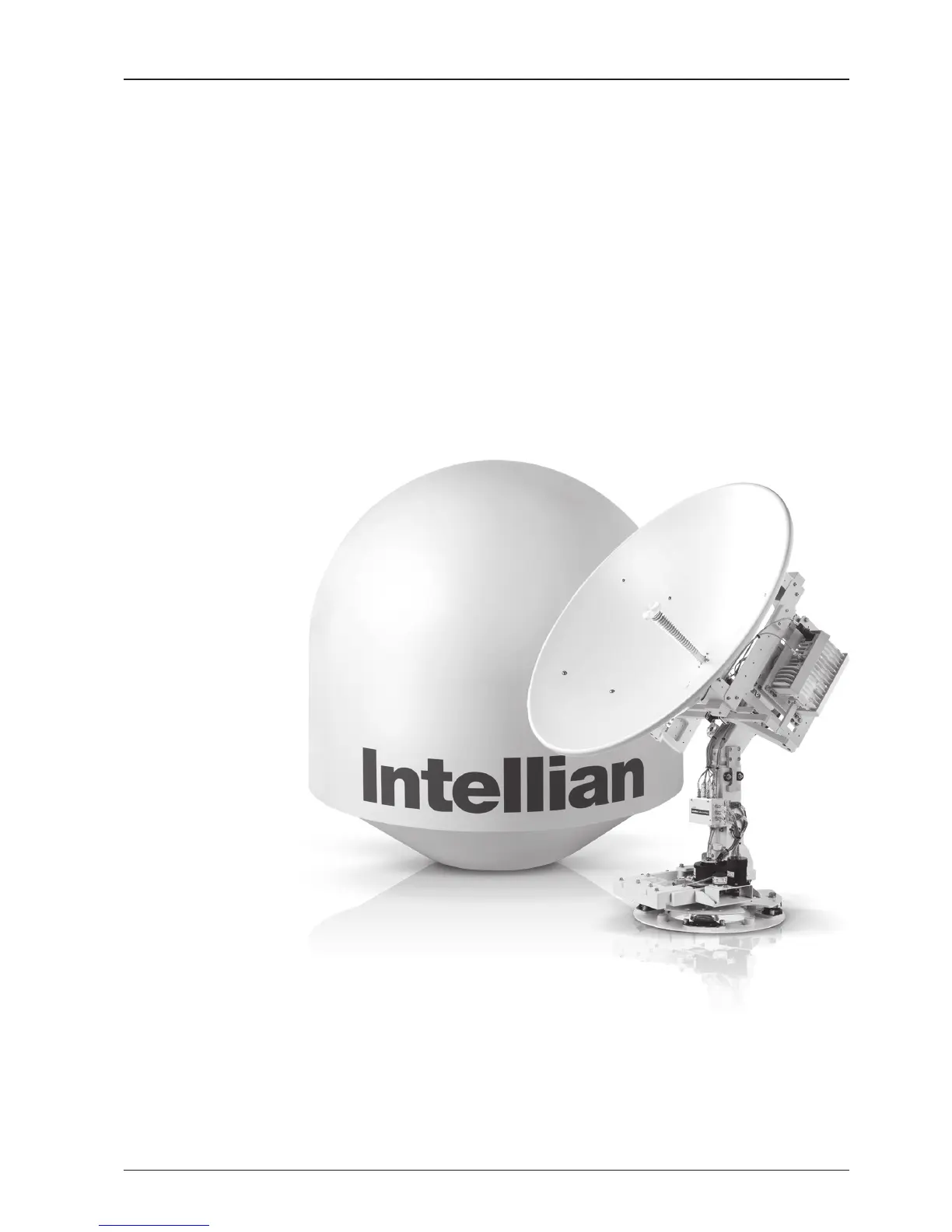

Antenna Unit

The antenna unit includes an antenna pedestal inside a radome assembly unit. The

pedestal consists of a satellite antenna main dish with RF components mounted

on a stabilized pedestal. The radome protects the antenna pedestal assembly unit

from the marine environment.

Antenna Unit
