ESim v5.12 for EasyCoder PD4—Programmer
’
s Reference Man
ual
Chapter 1—General Information
Field

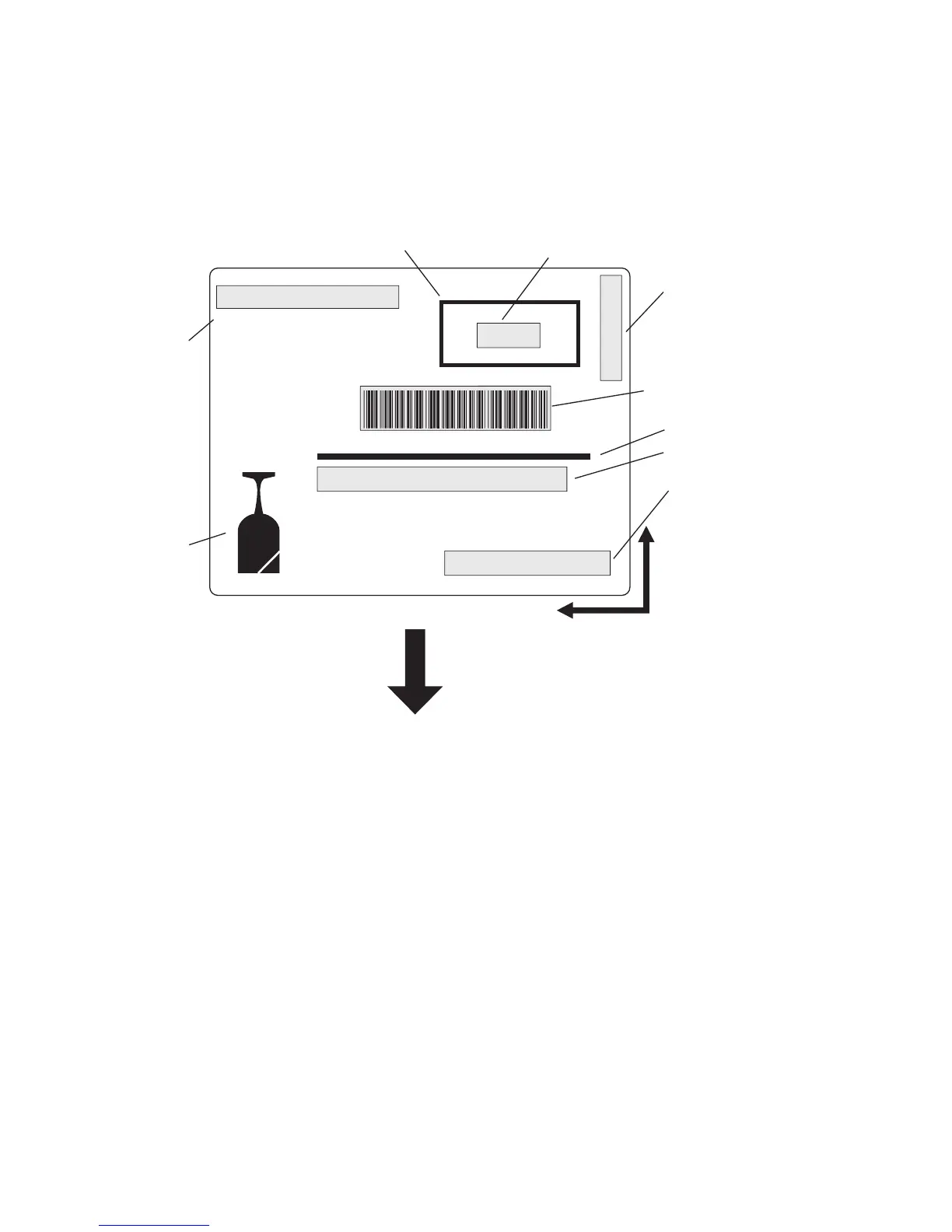

Each command line of printable data will create a field, which is defined
in regar
d of start position, rotation, magnification, etc.
X Axis
Y Axis
F
eed
Direction
V
ariable
T
e
xt V00
Graphic
Rotated
te
xt
Fix
ed T
ext
Line
Counter C0
Counter C1
Bo
x
EASYCODER PD4
FRA
GILE
P
A
CKED BY
:
SAM
SERIAL NO
.
654
76532
Bar Code
The illustration sho
ws how a label is printed and fed out
when using the default direction.
11
13
Table of Contents
Default Chapter
3
Table of Contents
3
General Information
7
Introduction
8
Test Label
9
Dump Mode
10
Memory
10
Direct Mode
10
Form Edit Mode
11
Form
11
Text Editor
11
Commands
11
Field
12
Field Positioning
13
Commands List
15
Direct Mode
16
Form Edit Mode
18
Setting up the Printer
19
Default Setup
20
Example
21
Editing in Direct Mode
23
Example
24
Editing in Form Edit Mode
25
Example
26
Retrieving and Printing a Form
31
Example
32
Commands
35
Syntax
36
A - Print Text
37
B - Standard Bar Codes
43
B - Two-Dimensional Bar Codes, General Part
48
B - Maxicode
49
B - PDF417
50
B - Data Matrix
52
B - QR Code
53
Error Correction
53
C - Counter
56
C - Cut Immediate
60
D - Density
61
EI - List Soft Fonts
62
EK - Delete Soft Font
63
ES - Store Soft Font
64
Er - User-Defined Error/Status Character Control
67
F - Cut Position
69
FE - End Store Command
70
FI - Print Form Information
71
FK - Delete Form
72
FR - Retrieve Form
73
FS - Form Store
74
GG - Print Graphics
75
GI - Print Graphics Information
76
GK - Delete Graphics
77
GM - Store Graphics in Memory
78
GRP - Reply Graphics from Printer Buffer
80
GW - Store Graphics in Image Buffer
81
I - Character Set Selection
82
I - Asian Character Spacing
83
JB - Disable Top of Form Backup
84
JF - Enable Top of Form Backup
85
J - Media Feed Adjustment
86
LE - Line Draw Exclusive
87
LO - Line Draw Black
88
LS - Line Draw Diagonal
89
LW - Line Draw White
90
N - Clear Image Buffer
91
O - Options Select
92
Or - Character Substitution
94
P - Print
95
PA - Print Automatic
96
PF - Feed Media
97
Q - Set Form Length (Gap or Slot)
98
Q - Set Form Length (Black Mark)
100
Q - Set Label Width
102
R - Set Reference Point
103
R - Set Relative Reference Point
104
S - Speed Select
105
SA - Setup Adjust
106
SPC - Setup Print Copy
107
SPR - Setup Print Engine Ribbon Control
108
TD - Define Date Format
109
TS - Set Real Time Clock
110
TT - Define Time Format
111
U - Print Configuration (General)
112
UC - Command Reply Accept Character Control
113
UE - Soft Font Information Inquiry
114
UF - Form Information Inquiry
115
UG - Graphics Information Inquiry
116
UI - Enable Prompts/Code Page Inquiry
117
UM - Code Page & Memory Inquiry
118
UN - Disable Error Reporting
119
UP - Code Page & Memory Inquiry/Print
120
US - Enable Error Reporting
121
UV - Product Identity and Asian Font Types
122
Define Variable
123
W - Windows Mode
125
Draw Box
126
Y - Serial Port Setup
127
Z - Print Direction
128
Download Variables
129
Reset Printer
130
Default - Restore Factory Default
131
Ee - Immediate Error Report
132
Resident Fonts
135
Fonts
136
Font Sizes 1-5
136
Code Pages and Character Sets
139
Printout Samples
139
Printout Samples
140
Error Types
156
Error-Handling Principles
156
Error Replies
158
Error Replies
159
Error Replies Table
160
