8 ESim v5.12 for EasyCoder PD4—Programmer’s Reference Manual
Chapter 1—General Information

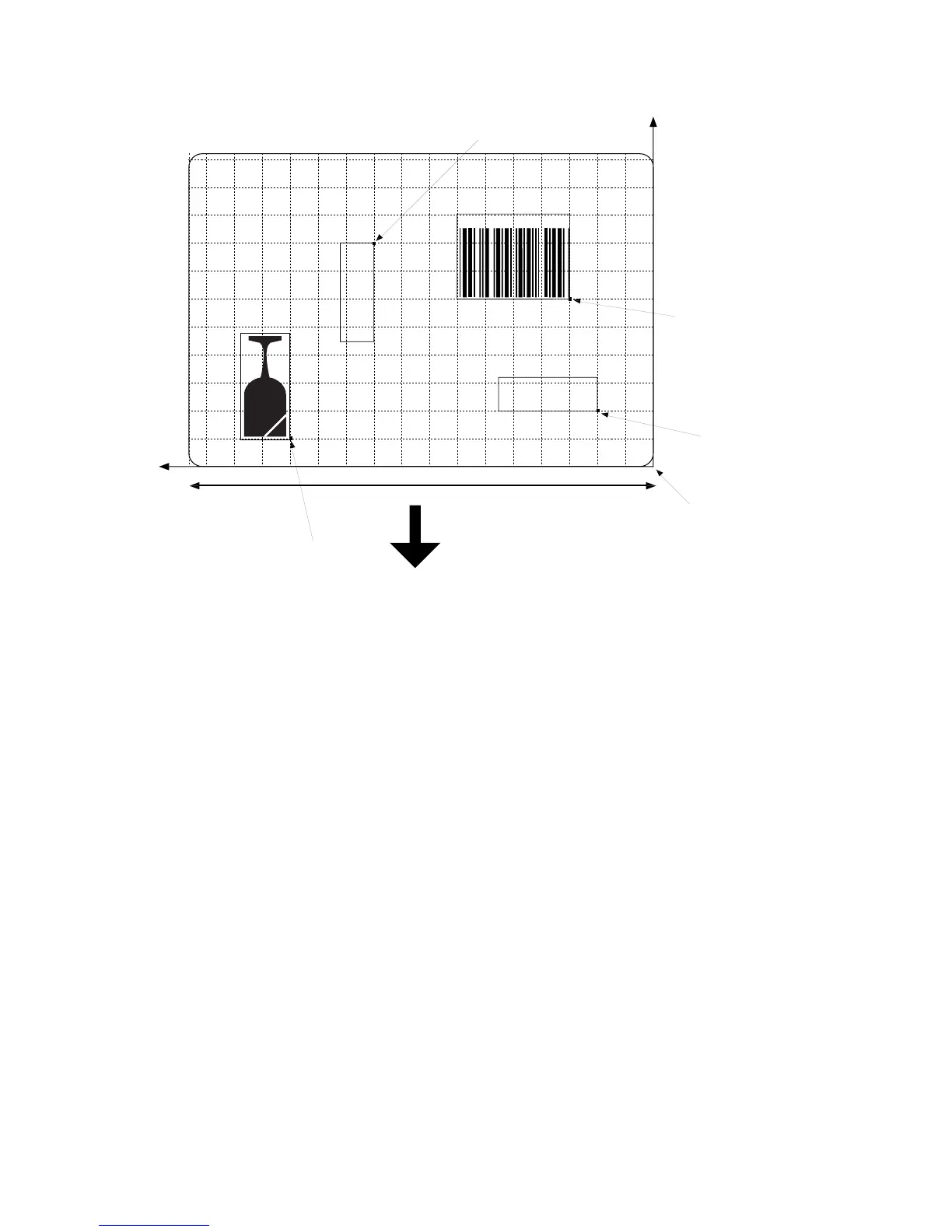

Example of field positioning when using an 203.2 dpi (8 dots per mm) printhead.
800832 750 700 650 600 550 500 450 400 350 300 250 200 150 100 50
50
100
150
200
250
300
350
400
450
500
550
X-axis
Y-axis
Reference Point
at direction ZT
X000;Y000
Feed
Direction
TEXT
TEXT
CODE 39
Rotated Text Field
X500;Y400
Bar Code Field
X150;Y300
Text Field
X100;Y100
Graphic Field
X650;Y050
Print Width 104 mm (832 dots)
