INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Expansion cards
-135-
Appendix A Expansion cards
A.1 What this chapter contains
This chapter describes the extension cards used in GD300L series inverters special for lifts.
A.2 I/O expansion card
A.2.1 Terminals and jumpers of I/O expansion card
I/O expansion card
Multi-function input terminal 9
Multi-function input terminal 10
Multi-function input terminal 11
S11
S10
S9
COM
24V
GND
AI2
+10V
Analog
input 2
0~10V/0-20mA
PW
R04C
R04A
Relay 4 output
R04B
Y2
CME2
Open collector Y output
HDO
COM
High-speed output
485-
485+
CANL
CANH

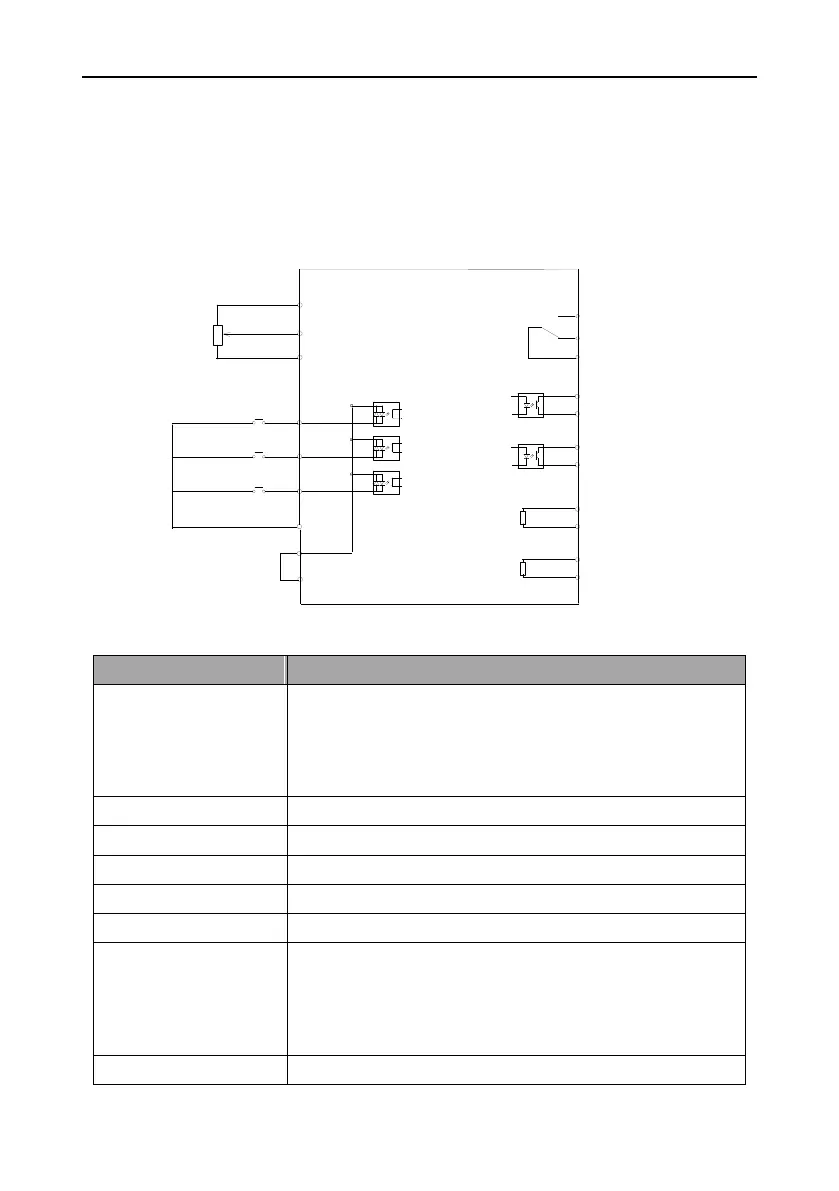

Figure A-1 IO extension card terminals and jumpers
Terminals
Terminal
Usage and instruction
S9–S11
ON-OFF signal input, optical coupling isolation input terminal with
PW and COM.
Input voltage range: 9–30V
Input impedance: 3.3kΩ
HDO
High-speed output terminal
+24V
24V power supply
PW
External power input terminal
COM
Common terminal of +24V or external power supply
GND
Reference zero potential of +10V
Y2
Open collector output terminal, the corresponding common ground
terminal is CME.
External voltage range: 0–24V
Output current range: 0–50mA
CME2
Common terminal of open collector output
