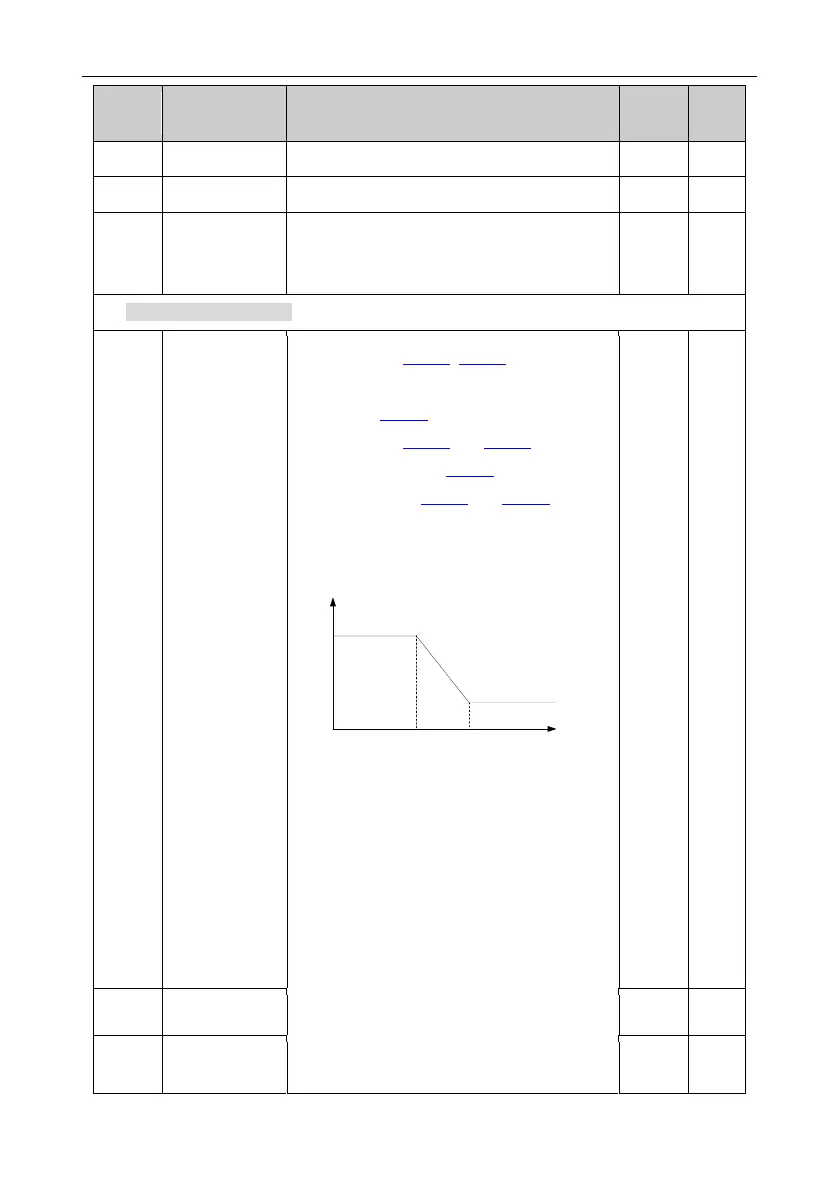

INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Function parameters
-42-
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P02.14
Pulley diameter
100–2000mm
500mm
◎
P02.15
DEC ratio
0.01–10.00
1.00
◎
P02.16
Speed regulation
ratio
0–65535
1000
○
P02.17
Reserved
0–65535
0
○
P03 Group Vector control
P03.00
Speed loop
proportional gain
1
The parameters P03.00–P03.05 only apply to
vector control mode. Below the switching
frequency 1 (P03.02), the speed loop PI
parameters are: P03.00 and P03.01. Above the
switching frequency 2 (P03.05), the speed loop
PI parameters are: P03.03 and P03.04. PI
parameters are gained according to the linear
change of two groups of parameters. It is shown
as below:
PI parameters
Output frequency f
(P03.00,P03.01)
(P03.03,P03.04)
P03.02 P03.05
Setting the proportional coefficient and integral
time of the adjustor can change the dynamic
response performance of vector control speed
loop. Increasing the proportional gain and
decreasing the integral time can speed up the
dynamic response of the speed loop. But too
high proportional gain and too low integral time
may cause system vibration and overshoot. Too
low proportional gain may cause system
vibration and speed static deviation.
PI has a close relationship with the inertia of the
system. Adjust on the base of PI according to
16.0
○
P03.01
Speed loop
integral time 1
0.200s
○
P03.02
Low switching
frequency
5.00Hz
○
