INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Expansion cards
-137-

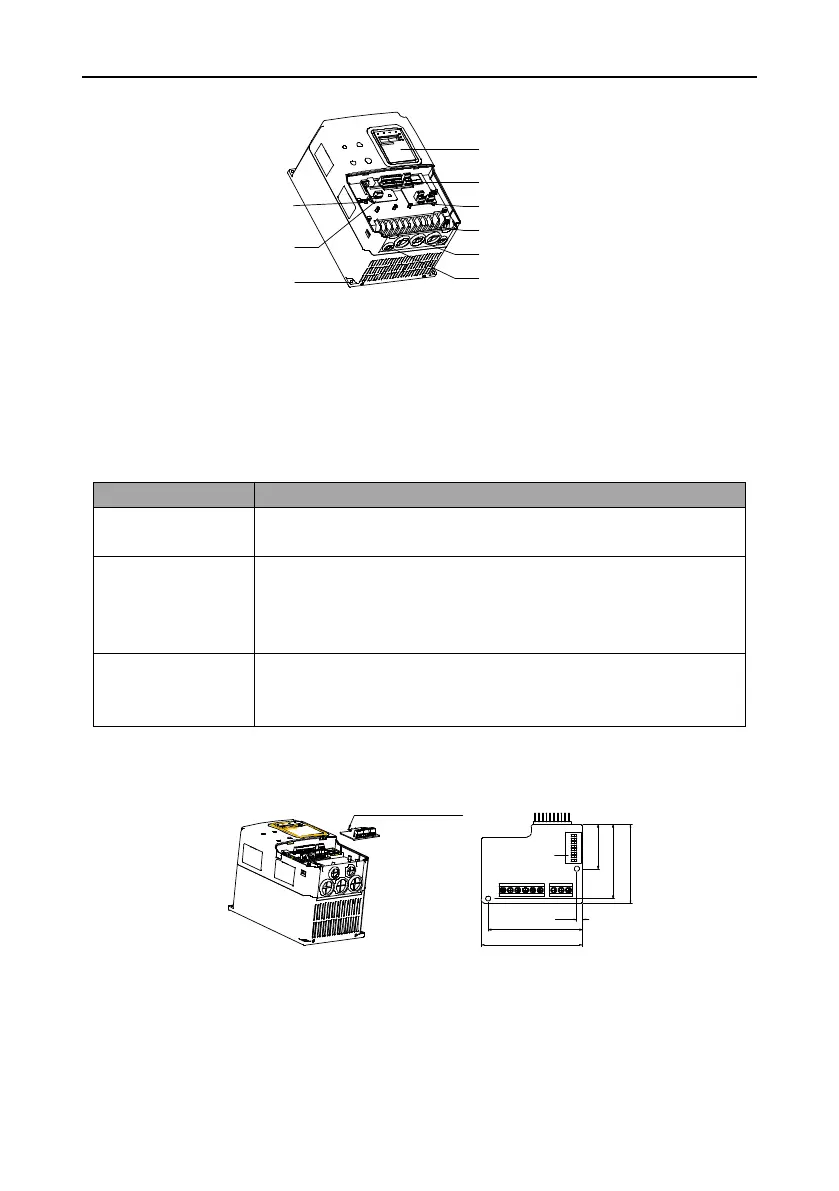

A.2.3 I/O expansion card installation
CHARGE
indicator
Function card
extension
Machine
installation hole
Operation panel
Control board terminal
PG card extension
Main circuit terminal
Main circuit cable inlet
Control circuit cable inlet
Figure A-3 I/O expansion card and PG card installation
A.3 Asynchronous motor PG card
A.3.1 Models and specifications
A.3.1.1 Model descriptions and technical specifications
The asynchronous PG card of GD300L series inverters is PN000PGWX. Below is the specification
table.
Terminal
Specifications
12V, COM1
Power supply of the encoder
Max. output current: 300mA
TERA+
TERA-
TERB+
TERB-
Input channel of the encoder signal
Voltage range: 12–15V
Response speed: 0–80kHz
TER-OA
TER-OB
Output frequency: 0–80kHz
Output impedance: 30Ω
Frequency range:1–256
A.3.1.2 Dimensions and installation of the asynchronous motor PG card
PG card installation diagram
Corresponding to lower-
row pins of CN9
Position of the
DIP switch
Outline and installation dimensions of
the PG card
PG card installation requires two
PB3X10 tapping screws.
64.0
68.0
4.0
31.3
52.3 56.0
Figure A-4 Dimensions and installation of the asynchronous PG card
Note: The asynchronous PG card is inserted in the lower pins of the control board CN9. The
synchronous PG card is inserted in CN9.
