Goodrive300-LIFT series inverter Installation guide
-16-

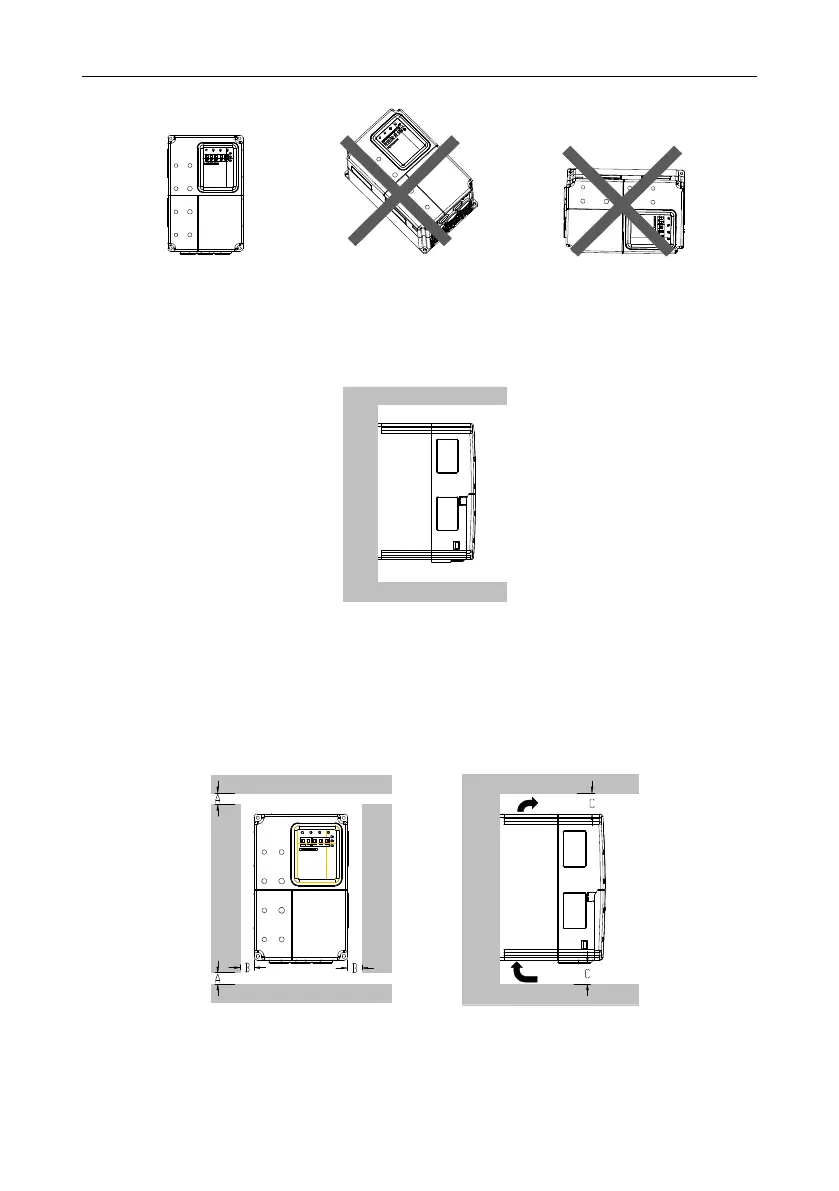

a. Vertical b. Horizontal
c. Transverse
OK NG NG
Figure 4-1 Inverter installation direction
4.2.3 Installation manner
The inverter is wall mountable.
Figure 4-2 Installation manner
(1) Mark the hole locations, which are shown in the dimension drawings in the appendix.
(2) Fix the screws or bolts to the marked locations.
(3) Put the inverter against the wall.
(4) Tighten the screws in the wall securely.
4.2.4 Single-inverter installation
Figure 4-3 Single installation
Note: The minimum space of B and C is 100mm.
