Goodrive300-LIFT series inverter Dimension drawings
-155-
Appendix C Dimension drawings
C.1 What this chapter contains
Dimension drawings of GD300L series inverters special for lifts are shown below. The dimensions are
given in millimeters.
C.2 Keypad structure

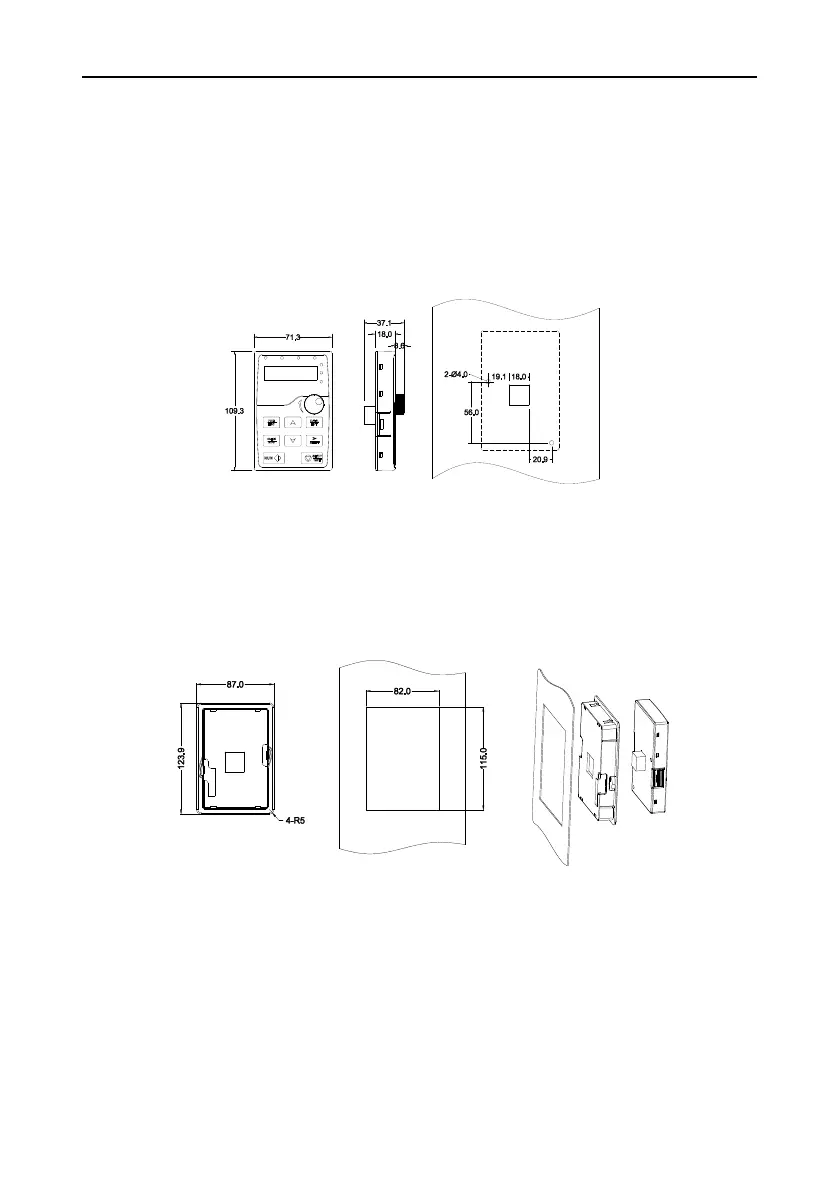

C.2.1 Structure chart
Keypad bracket-free
installation hole
C.2.2 Installation bracket (optional)
Note: It is necessary to use M3 screw or installation bracket to fix the external keypad. The
installation bracket is optional for inverters of 380V 1.5–15kW but it is standard for inverters of 380V
18.5–30kW.
Keypad bracket
Installation
dimensions
