INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Keypad operation procedure
-28-
5 Keypad operation procedure
5.1 What this chapter contains
This chapter describes:
Buttons, indicating lights and the screen as well as the methods to inspect, modify and set function
codes by keypad
5.2 Keypad
The keypad is used to control GD300L series inverters special for lifts, read the state data, and adjust
parameters.

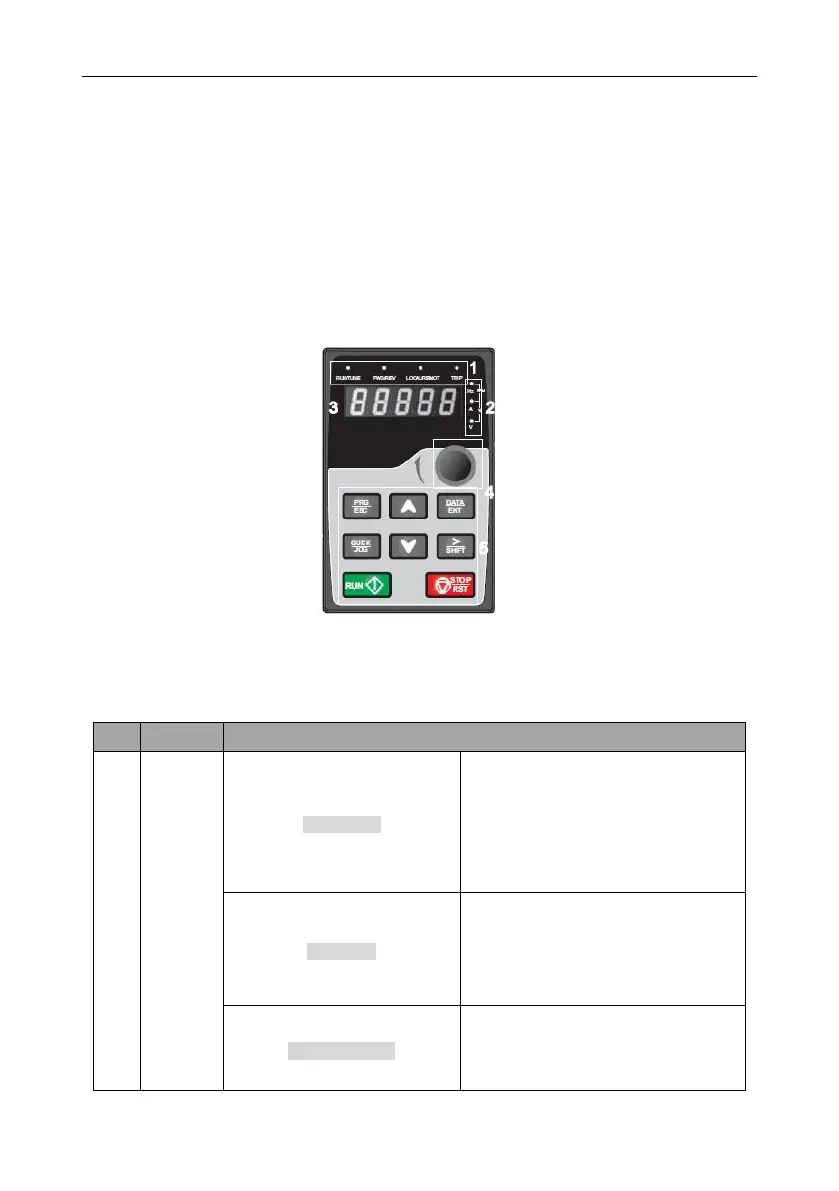

Figure 5-1 Keypad
Note: The LED keypad is provided as standard configuration. There is another optional LCD keypad
which supports various languages, parameter copy, and 10-line displaying, and is compatible with the
LED keypad in installation dimensions.
No.
Name
Description
1
State LED
RUN/TUNE
LED off means that the inverter is in the
stopping state; LED blinking means the
inverter is in the parameter autotune
state; LED on means the inverter is in the
running state.
FWD/REV
FED/REV LED
LED off means the inverter is in the
forward rotation state; LED on means the
inverter is in the reverse rotation state
LOCAL/REMOT
LED for keypad operation, terminals
operation and remote communication
control
