Goodrive300-LIFT series inverter Expansion cards
-149-
SAFE alarm is deleted. The drive executes the running command only after it is reset and the
external running command is reset.
Running
command
Run
Inverter
output
Run Stop Run
Reset
Reset
(RST)
Run
Stop
H1
H2
ON
ON
ON
ON
OFF
OFF

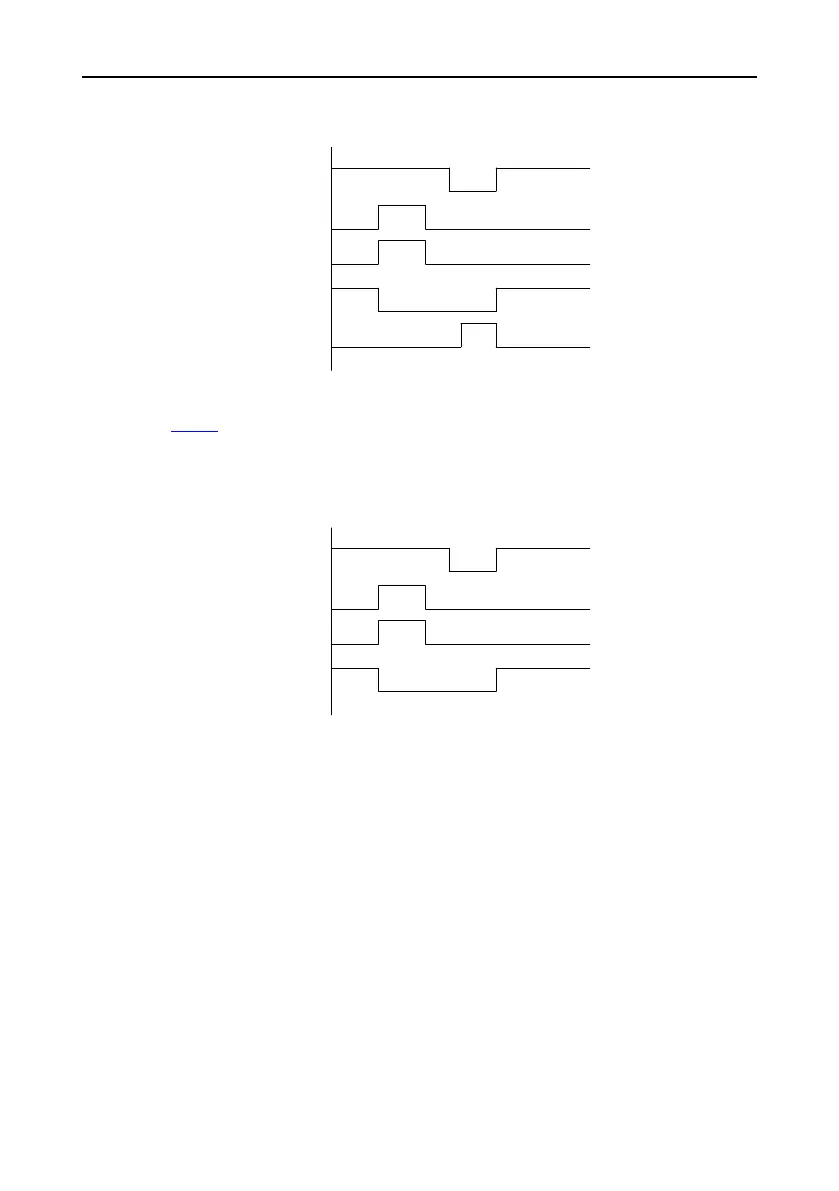

Figure A-14 Logic of operation with SAFE alarm locked
(2) When P15.01 is set to 1, the SAFE alarm function is not locked.
As shown in Figure A-15, no alarm locking refers to that after a SAFE fault occurs and the state
is restored, the alarm is automatically deleted. No drive reset is required. The drive executes
the running command again after the external running command is reset.
Running
command
Run
Inverter
output
Run Stop Run
Run
Stop
H1
H2
ON
ON
ON
ON
OFF
OFF
Figure A-15 Logic of operation without SAFE alarm locked
2. STL1 fault
As shown in Figure A-16, when exceptions occur on the hardware line of safety circuit 1 (that is,
exceptions occur on the running of H1) but H2 signals are normal, the drive enters the safe
operation mode and stops output regardless of the running command. The drive is locked due
to the STL1 alarm, and does not execute the running command again even it receives a reset
command and the external running command is reset.
