Goodrive300-LIFT series inverter Peripheral optional parts
-164-

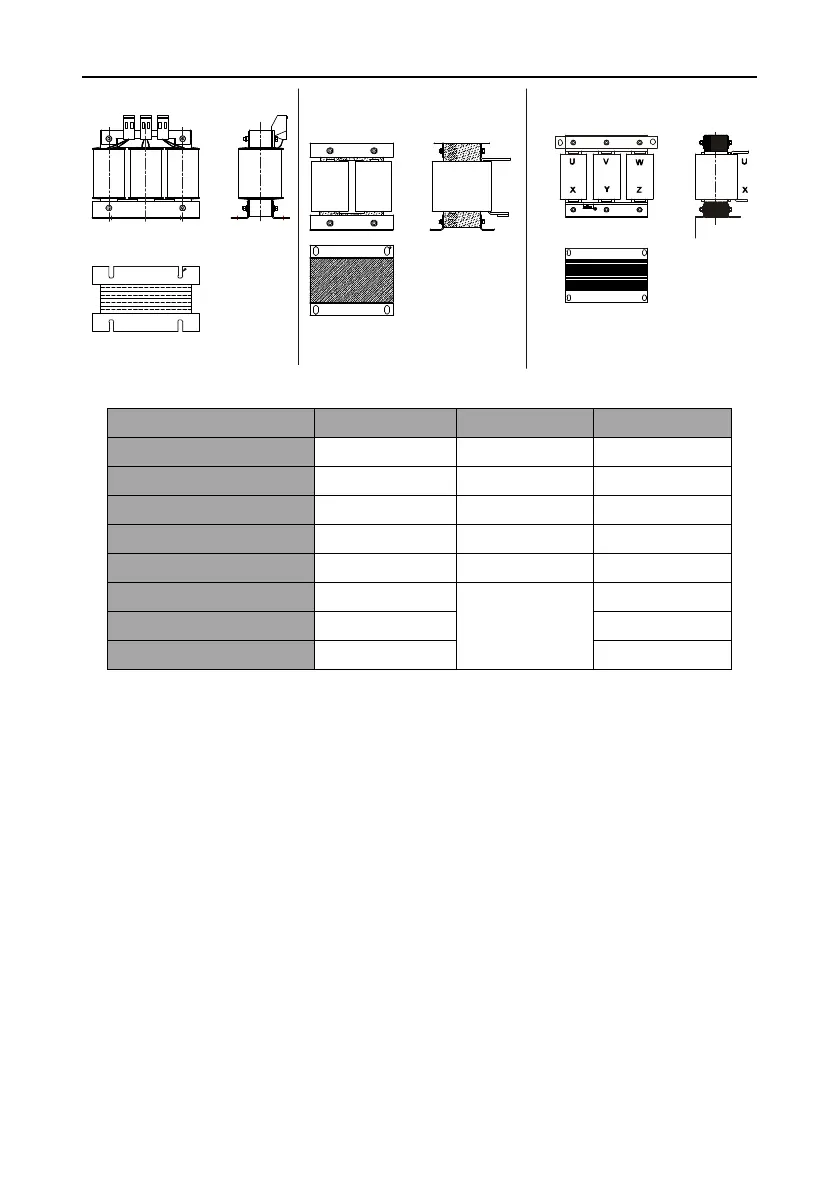

Input reactor DC reactor Output reactor
D.6.1 AC 3PH 380V(-15%)–440V(+10%)
Model
Input reactor
DC reactor
Output reactor
GD300L-004G-4
ACL2-004-4
/
OCL2-004-4
GD300L-5R5G-4
ACL2-5R5-4
/
OCL2-5R5-4
GD300L-7R5G-4
ACL2-7R5-4
/
OCL2-7R5-4
GD300L-011G-4
ACL2-011-4
/
OCL2-011-4
GD300L-015G-4
ACL2-015-4
/
OCL2-015-4
GD300L-018G-4
ACL2-018-4
Embedded
OCL2-018-4
GD300L-022G-4
ACL2-022-4
OCL2-022-4
GD300L-030G-4
ACL2-037-4
OCL2-037-4
Note:
 The rated derate voltage of the input reactor is 2%±15%.
 The power factor of the input side is above 90% after installing DC reactor.
 The rated derate voltage of the output reactor is 1%±15%.
 Above options are external, the customer should indicate when purchasing.
D.7 Filter
The input interference filter can decrease the interference of the inverter to the surrounding
equipment.
The output interference filter can decrease the radio noise cause by the cables between the inverter
and the motor and the leakage current of the conducting wires.
Our company configured some filters for the convenient of the users.
