INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Commissioning guidelines
-85-
Function
code
Name
Recommended value
Remarks
P09.11
ACC time
2.0s
P09.12
S-curve DEC start
segment duration
2.0s
P09.13
S-curve DEC end
segment duration
2.0s
P09.14
DEC time
2.0s
P09.15
S-curve start segment
duration during stop
2.0s
P09.16
S-curve end segment
duration during stop
2.0s
P09.17
Maintenance running
speed
0.200m/s
P09.18
Maintenance ACC/
DEC time
4.0s
P09.24
DEC time for creeping
to stop
2.0s
P20.00
Encoder type
Determined encoder
type/pulse quantity
Depend on the encoder used
P20.01
Encoder pulse quantity
P20.02
Encoder direction
0
Modified according to the
commissioning result
Note: In multi-step speed running mode, multi-step speed 0 must be set to zero speed.
FWD
Contactor
control
Contactor
feedback
MS1
MS2
MS3
Running
Brake
control
Brake
feedback
ON
ON
ON
ON
ON
ON
ON
ON
ON
OFF
OFF
OFF
OFF
OFF
OFF
OFF
OFF
t
V
T3
T2
T1
P08.04
P00.01
T4
P08.04
T5
T6

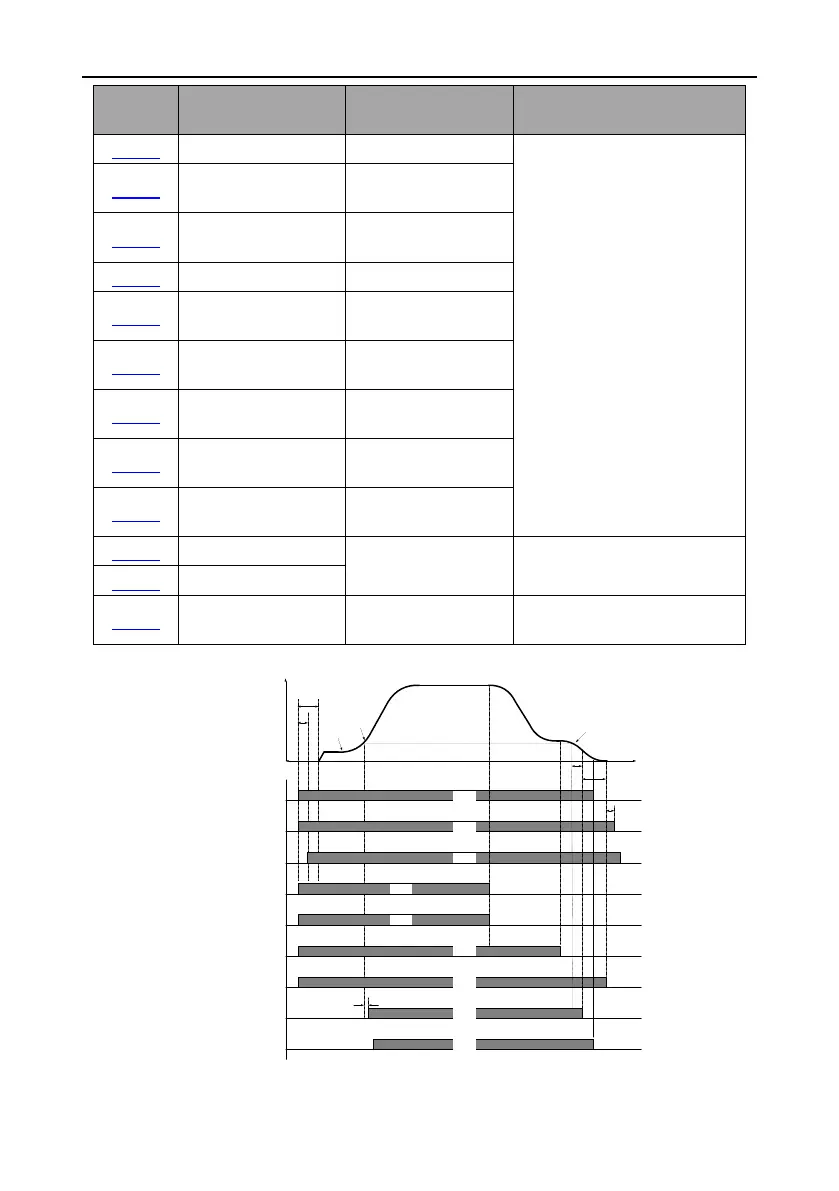

Figure 7-8 Open-loop running sequence
