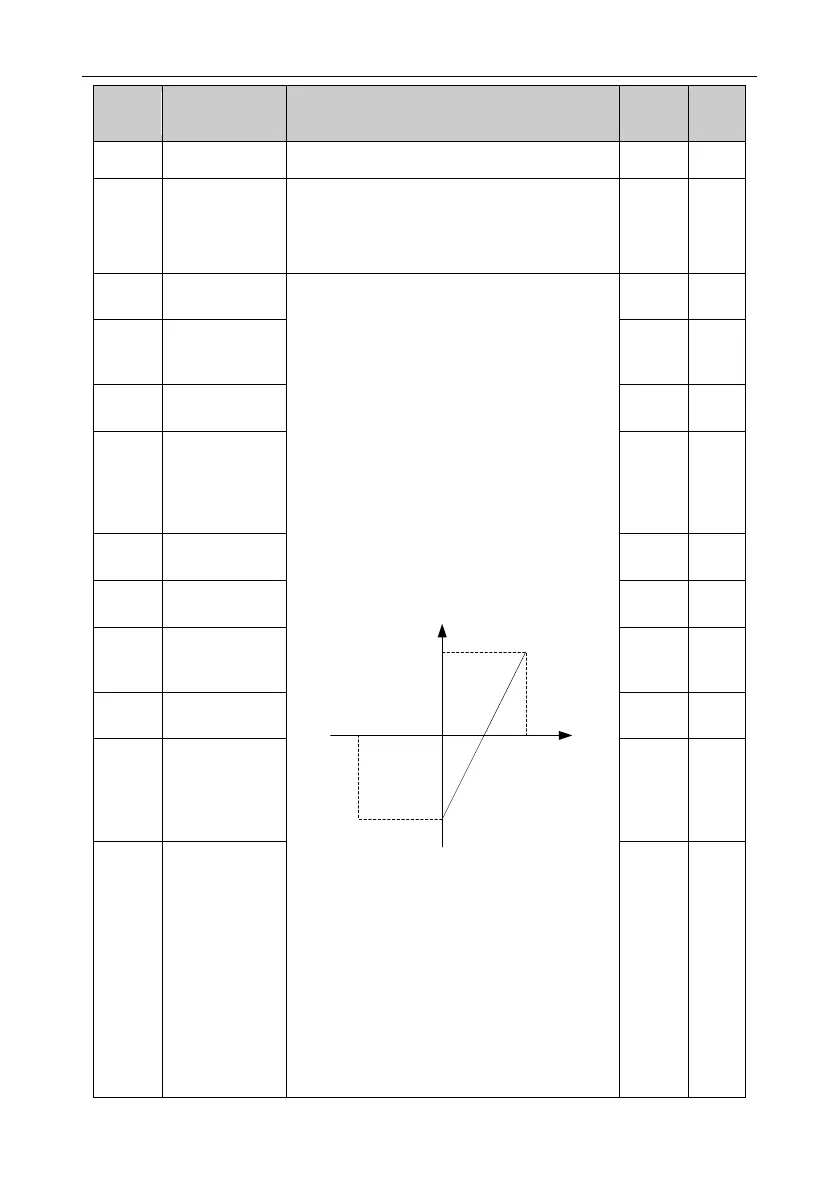

INVT GD300L Series User Manual

Goodrive300-LIFT series inverter Function parameters
-47-
Function
code
Name
Detailed instruction of parameters
Default
value
Modify
P05.15
Reserved
Reserved
0
◎
P05.16
Enable power-on
terminal
detection
0: Disable
1: Enable (terminal command power-on
response and terminal command response to
UV fault rectification)
0
◎
P05.17
Lower limit of
AI1
The function code defines the relationship
between the analog input voltage and its
corresponding set value. If the analog input
voltage beyond the set minimum or maximum
input value, the inverter will count at the
minimum or maximum one.
When the analog input is the current input, the
corresponding voltage of 0–20mA is 0–10V.
In different cases, the corresponding rated value
of 100.0% is different. See the application for
detailed information.
The figure below illustrates different
applications:
-100%
100%
Corresponding
setting
AI
-10V
10V
20mA
0
AI3
AI1/AI2
Input filter time: This parameter is used to adjust
the sensitivity of the analog input. Increasing the
value properly can enhance the anti-interference
of the analog, but weaken the sensitivity of the
analog input.
Note: Analog AI1 and AI2 can support 0–10V or
0–20mA input, when AI1 and AI2 selects
0–20mA input, the corresponding voltage of
20mA is 5V. AI3 can support the input of
0.00V
○
P05.18
Corresponding
setting of the
lower limit of AI1
0.0%
○
P05.19
Upper limit of
AI1
10.00V
○
P05.20
Corresponding
setting of
the upper limit of
AI1
100.0%
○
P05.21
AI1 input filter
time
0.030s
○
P05.22
Lower limit of
AI2
0.00V
○
P05.23
Corresponding
setting of the
lower limit of AI2
0.0%
○
P05.24
Upper limit of
AI2
10.00V
○
P05.25
Corresponding
setting of
the upper limit of
AI2
100.0%
○
P05.26
AI2 input filter
time
0.030s
○
