Installation 27
Thermal Head Disassembly Procedure
1. Open the side panel and remove the front cover (two screws).
2. Remove the two screws securing the thermal head. See Figure 2-12.

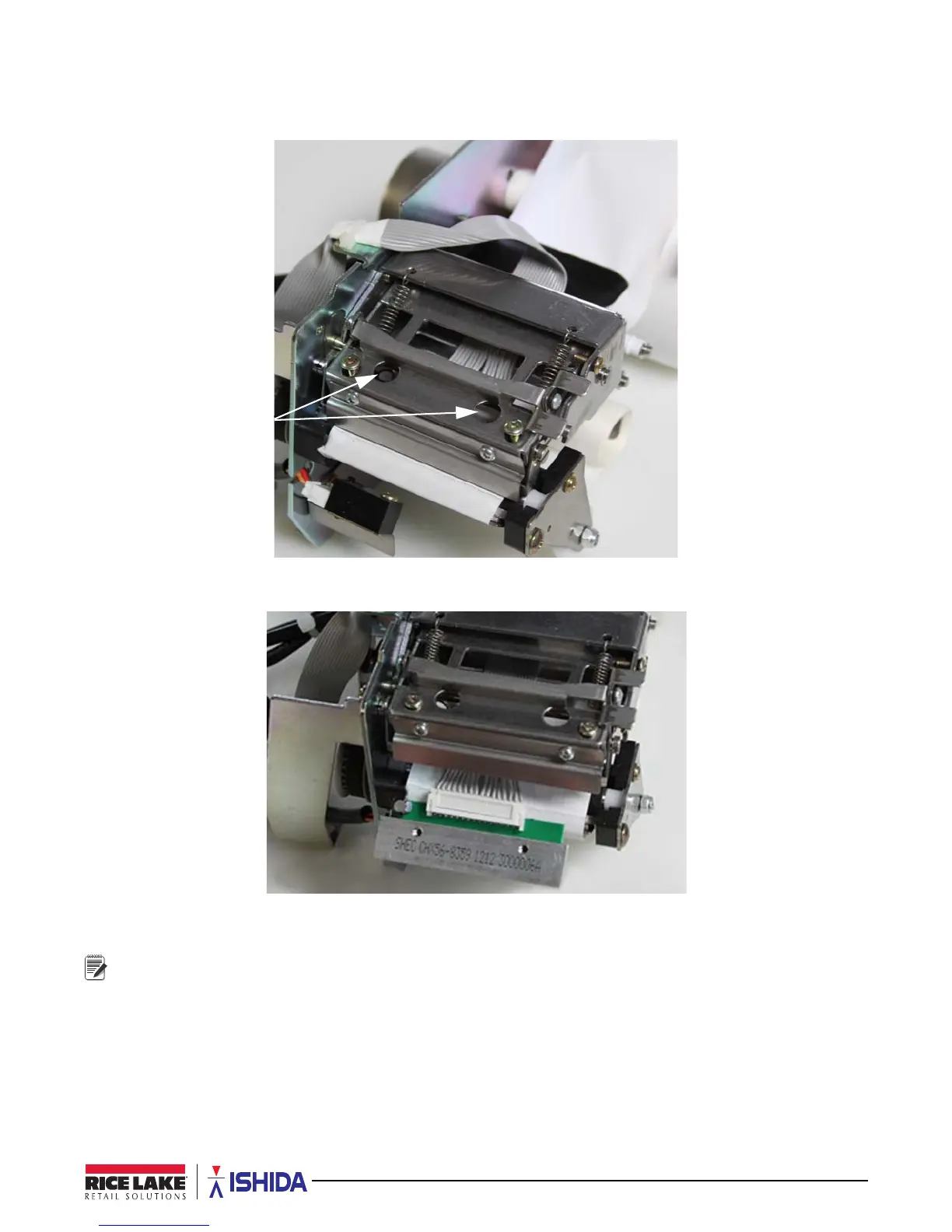

Figure 2-12. Remove Two Screws from Thermal Head
3. Unlatch and raise the thermal head bracket.
Figure 2-13. Unlatch Thermal Head Bracket
4. Pull the thermal head forward and unplug the connector. See Figure 2-13.
Reverse this procedure for assembly.
