28 Uni-3 Technical Manual
Main CPU Board Disassembly Procedure
1. Unplug all of the cables and the A/D board from the main CPU board.

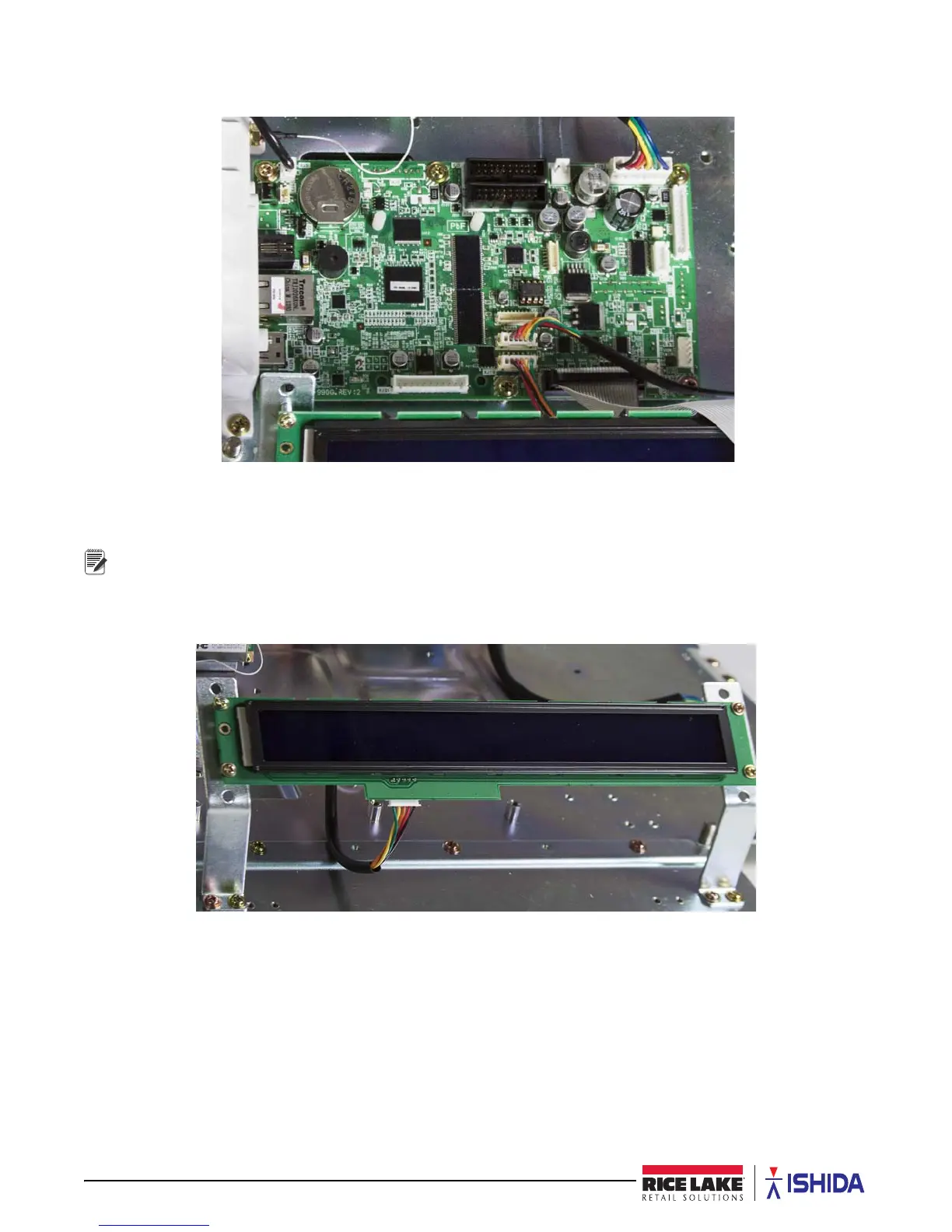

Figure 2-14. Main Board Disassembly
2. Remove the six screws; three on each long side of the main CPU board.
3. Remove the main CPU board.
Reverse this procedure for assembly.
Operator Display Board Disassembly Procedure
1. Remove the top cover.
2. Unplug the customer display from the main CPU board (bench models only).
Figure 2-15. Operator Display Board Disassembly
3. Remove the four machine screws.
