Introduction
USER MANUAL FPC 200 - 3/2017 13
1.3 Device description
Design of FPC 200 is modular. Base unit consists of housing, human machine interface (HMI), analog measurement card
(AMC) and six digital outputs (DO) with power supply (PS). AMC provides current or voltage measurements. Optional cards
extends the input/output and communication capabilities. Further extension is possible with external modules.
Base unit with maximum configuration includes:
Front panel with HMI and USB interface
rear panel with 10 digital inputs
8 digital outputs
2 serial communication ports
3 analog outputs
4 analog inputs
Connection configuration

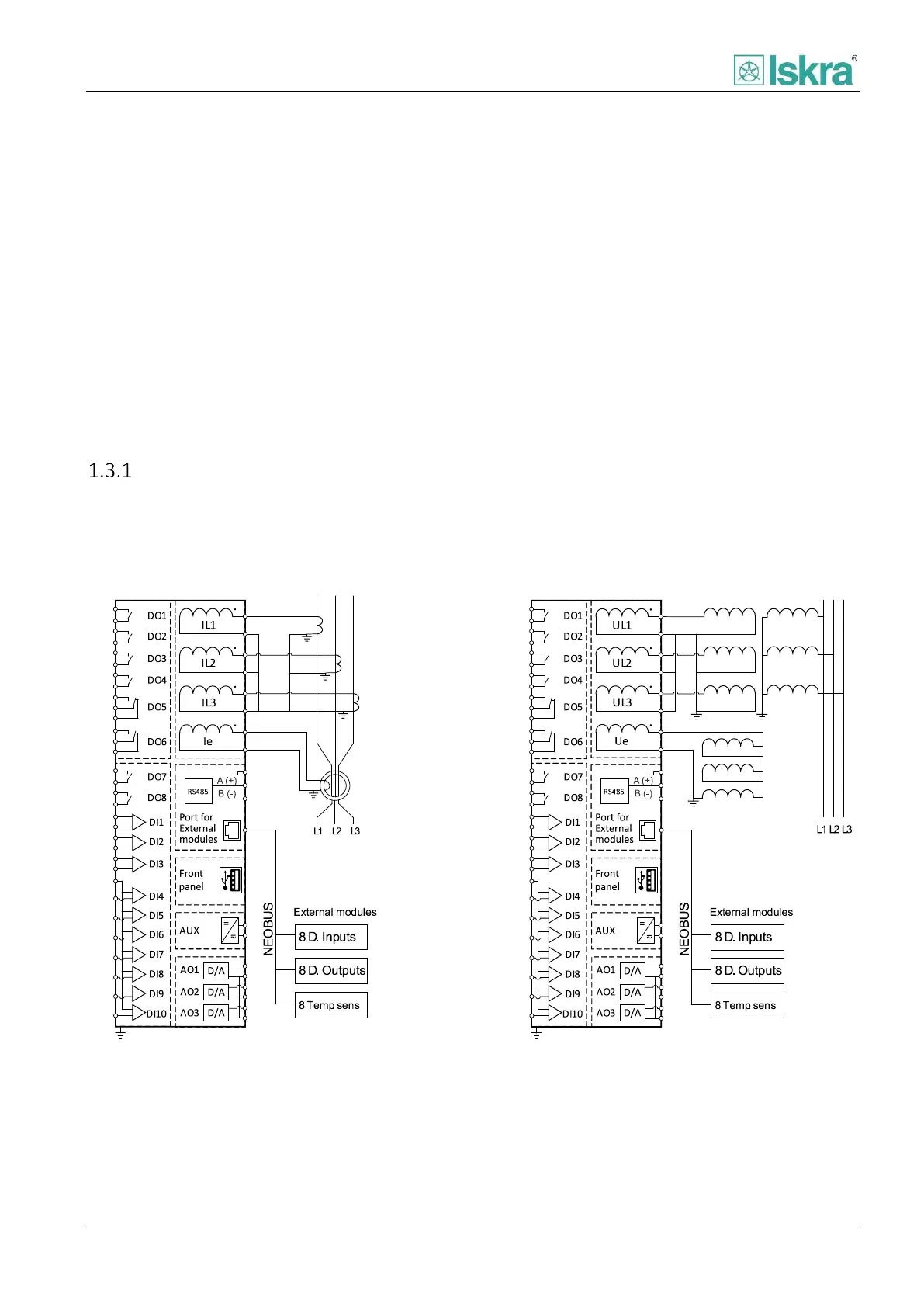

Two connection configurations exist based on device type. Current measuring configuration is shown on Figure 1.2
whereas voltage version is shown on Figure 1.3.
Figure 1.2: Current measurements configuration.
Figure 1.3: Voltage measurements configuration.
