Mounting and commissioning
154 USER MANUAL FPC 200 - 3/2017
Assembly

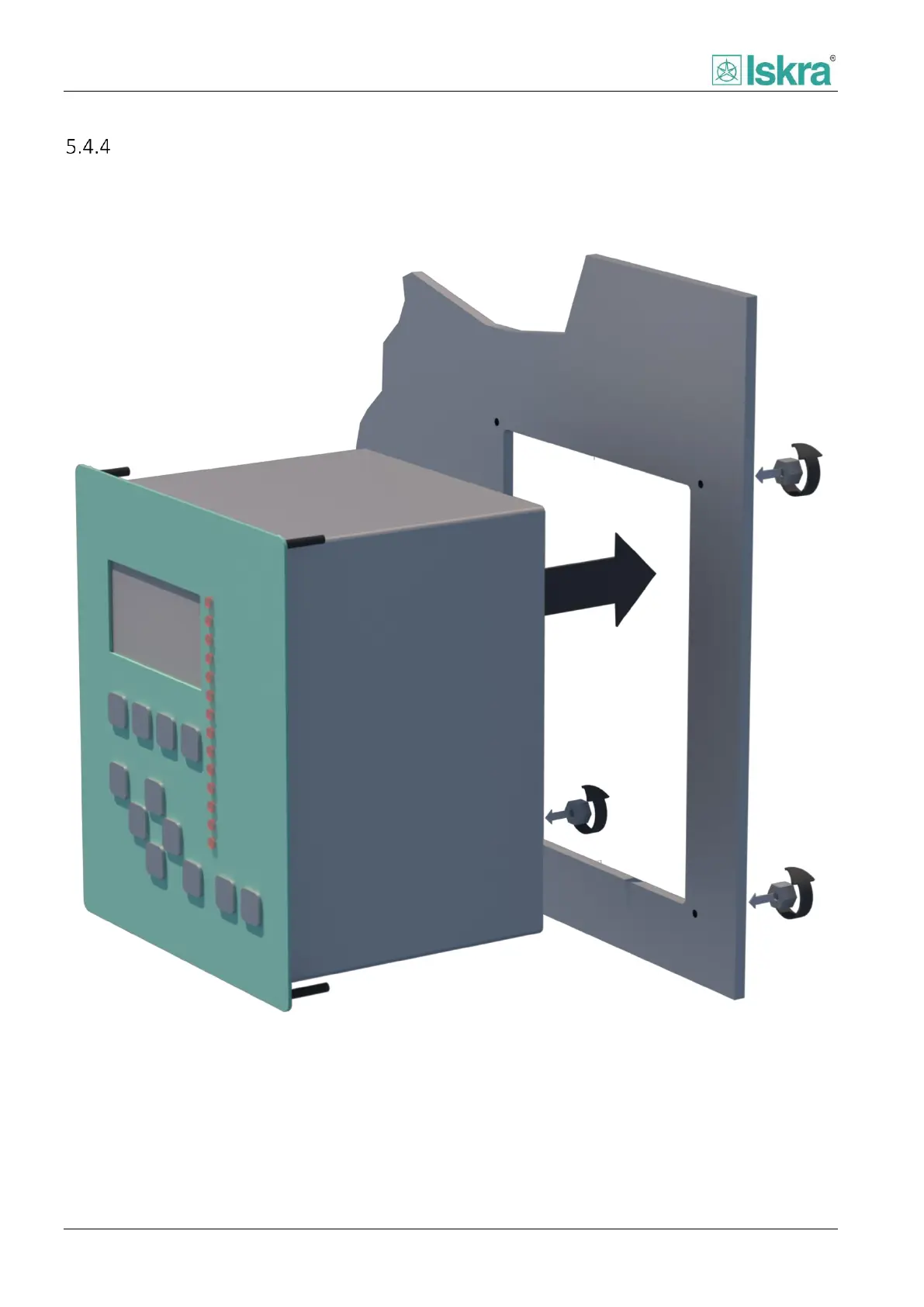

Device is screwed with four M4 nuts onto panel door as shown on Figure 5.4.
Figure 5.4: Device mounting
