Mounting and commissioning
USER MANUAL FPC 200 - 3/2017 157
Grounding wire
Grounding must be executed with a copper wire with a min. 4 mm
2
. It must be screwed using:
M5 screw
tooth lock washer
normal washer
Recommended length of grounding wire is up to 30 cm.

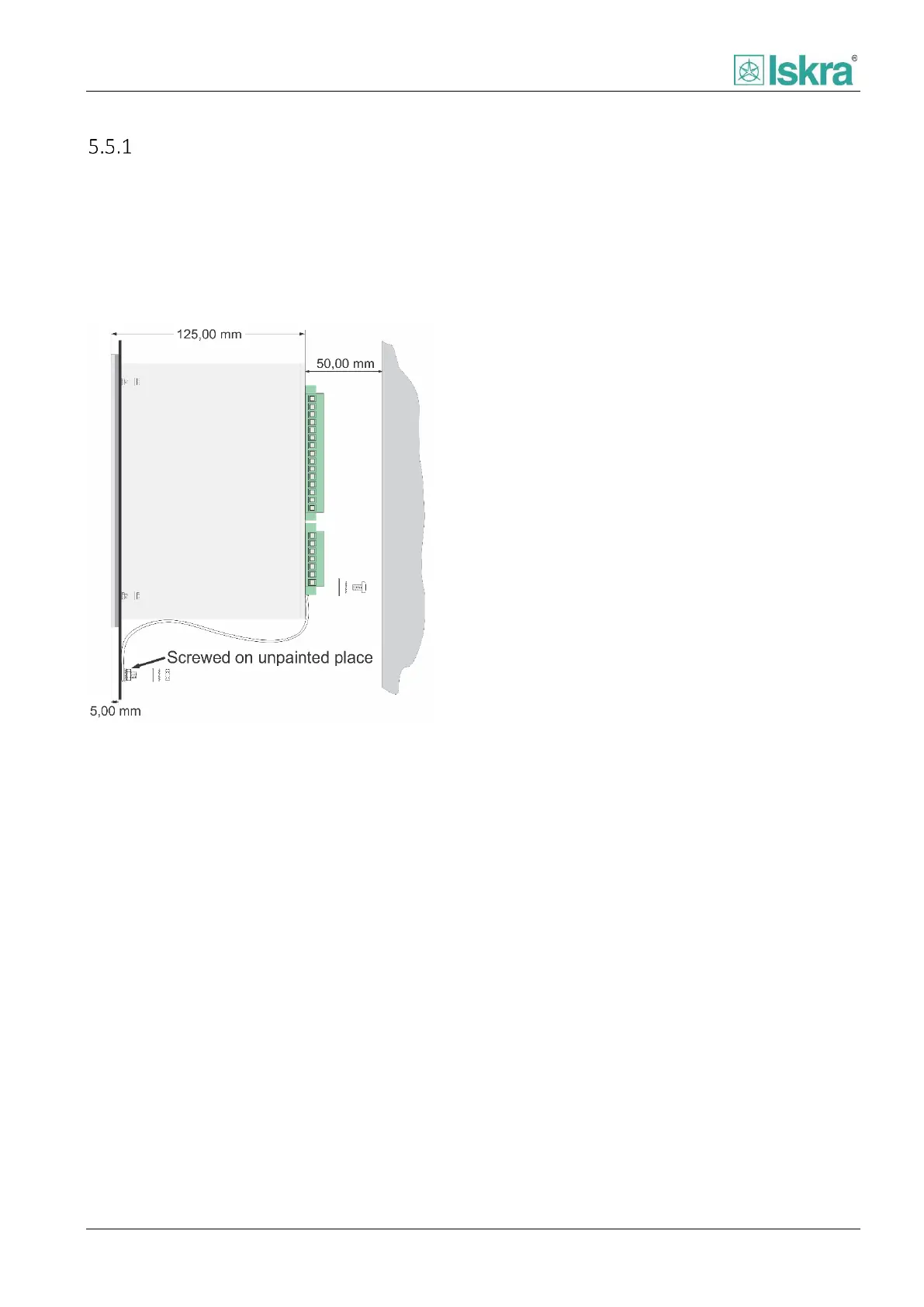

Figure 5.6: Grounding wire connection
