Mounting and commissioning
USER MANUAL FPC 200 - 3/2017 155
Spacing
Recommended spacing inside the cubicle is 30 mm around the device. In case of fibre optic connection rear side should
have 100 mm deep spacing otherwise 50 mm as shown on Figure 5.5.

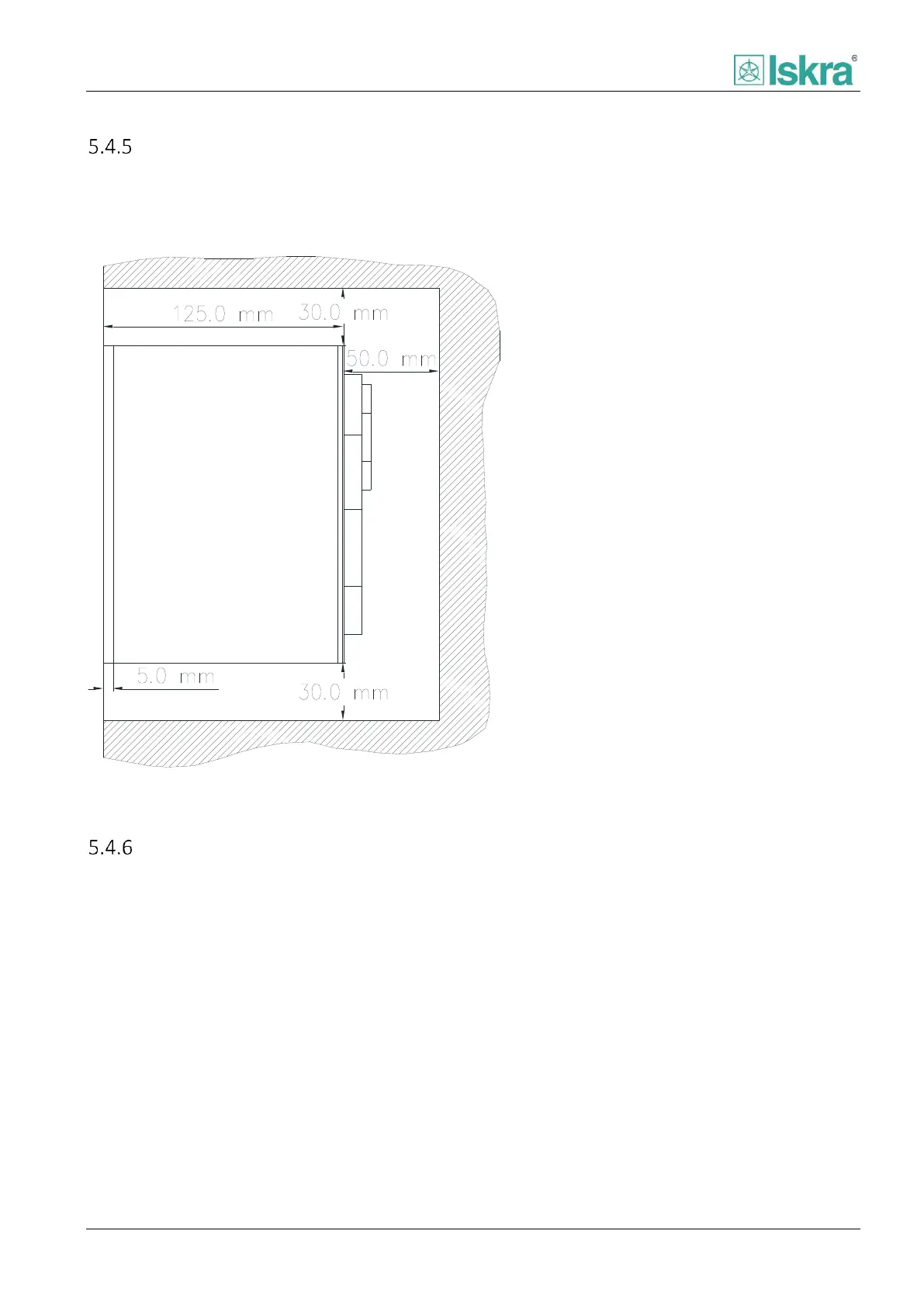

Figure 5.5: FPC 200 side view with recommended spacing and grounding connection
Recommended external protection elements
Power supply: K2 or C2
Voltage inputs: Z2
Digital inputs: B2
Digital outputs: B6
