Technology modules
Page 158

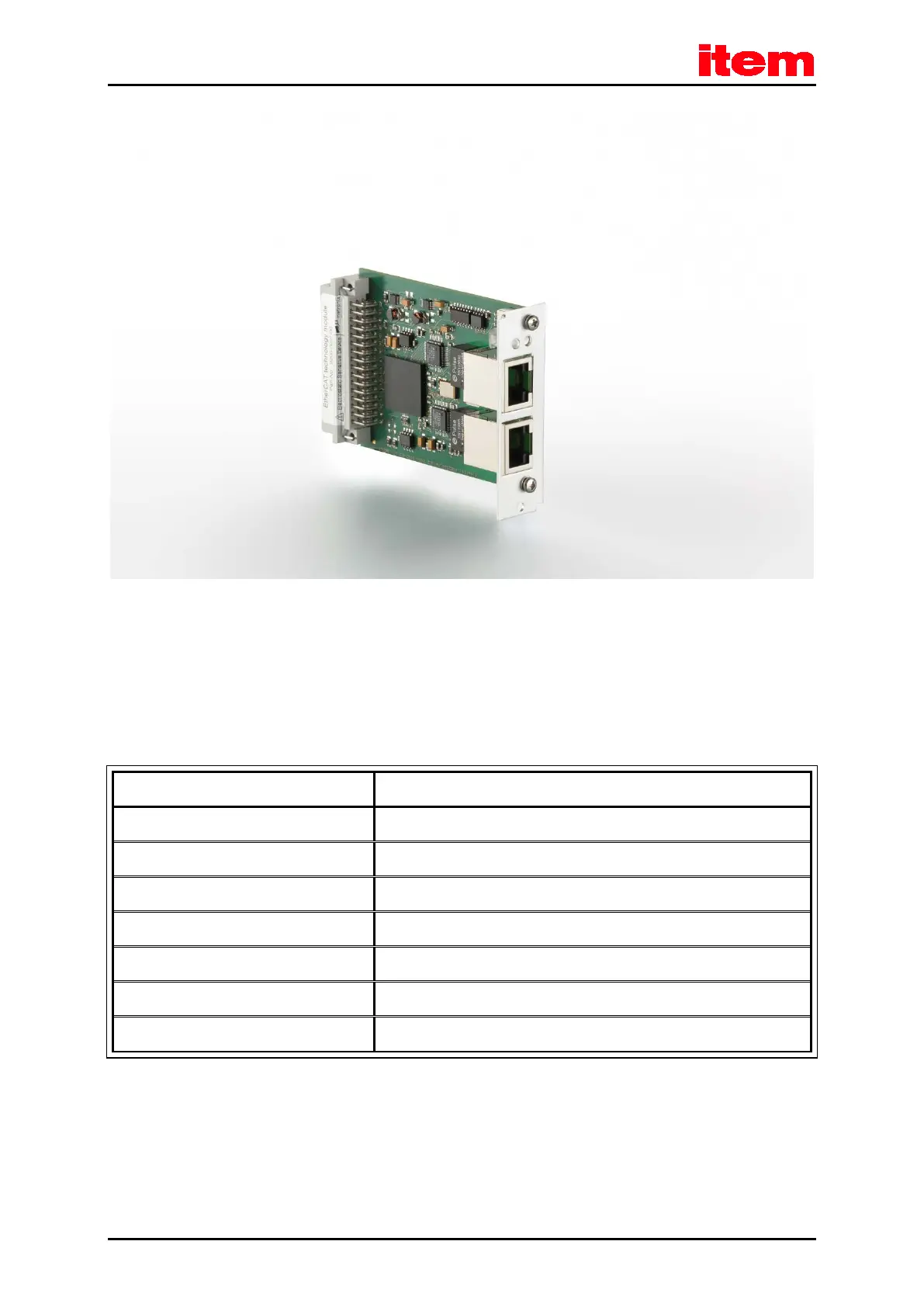

Figure 32: EtherCAT module: front view
12.2.3 Technical data
Table 54: Technical data: EtherCAT module: ambient conditions, dimensions, and weight
Storage temperature range - 25°C to + 75°C
Operating temperature range 0°C to 50°C
Atmospheric humidity 0 ... 90%, non-condensing
Installation altitude up to 2000 m above MSL
External dimensions (L x W x H): approx. 92 x 65 x 19 mm
Weight: approx. 55 g
Slot Technology slot TECH 2
12.2.4 Display elements
The front panel of the EtherCAT technology module is equipped with two LEDs for indicating the operating states.
Table 55: Display elements
