Mechanical installation
Page 73
7.3 Installation
The item Servo Positioning Controller C 3-Series has fastening tabs at the top and bottom. These tabs are used to mount the
servo positioning controller vertically to a control cabinet plate. The tabs are part of the heat sink profile. This is why the best
possible heat transfer to the control cabinet plate must be ensured.
Recommended tightening torque for an M5 screw of property class 5.6: 2.8 Nm.
Please use M5 screws for the mounting of the item Servo Positioning Controller C 3-05 and Controller C 3-10
.
R5
R2,6
R2,6
M4 flush head stud
M4 flush head stud
R2,5
5 mm
24 mm
31,75 mm
39,5 mm
58,5 mm
63,5 mm
69 mm
9 mm
12 mm
15 mm
21 mm
28,9 mm
320,8 mm
328,9 mm
334,5 mm
ca. 1 mm

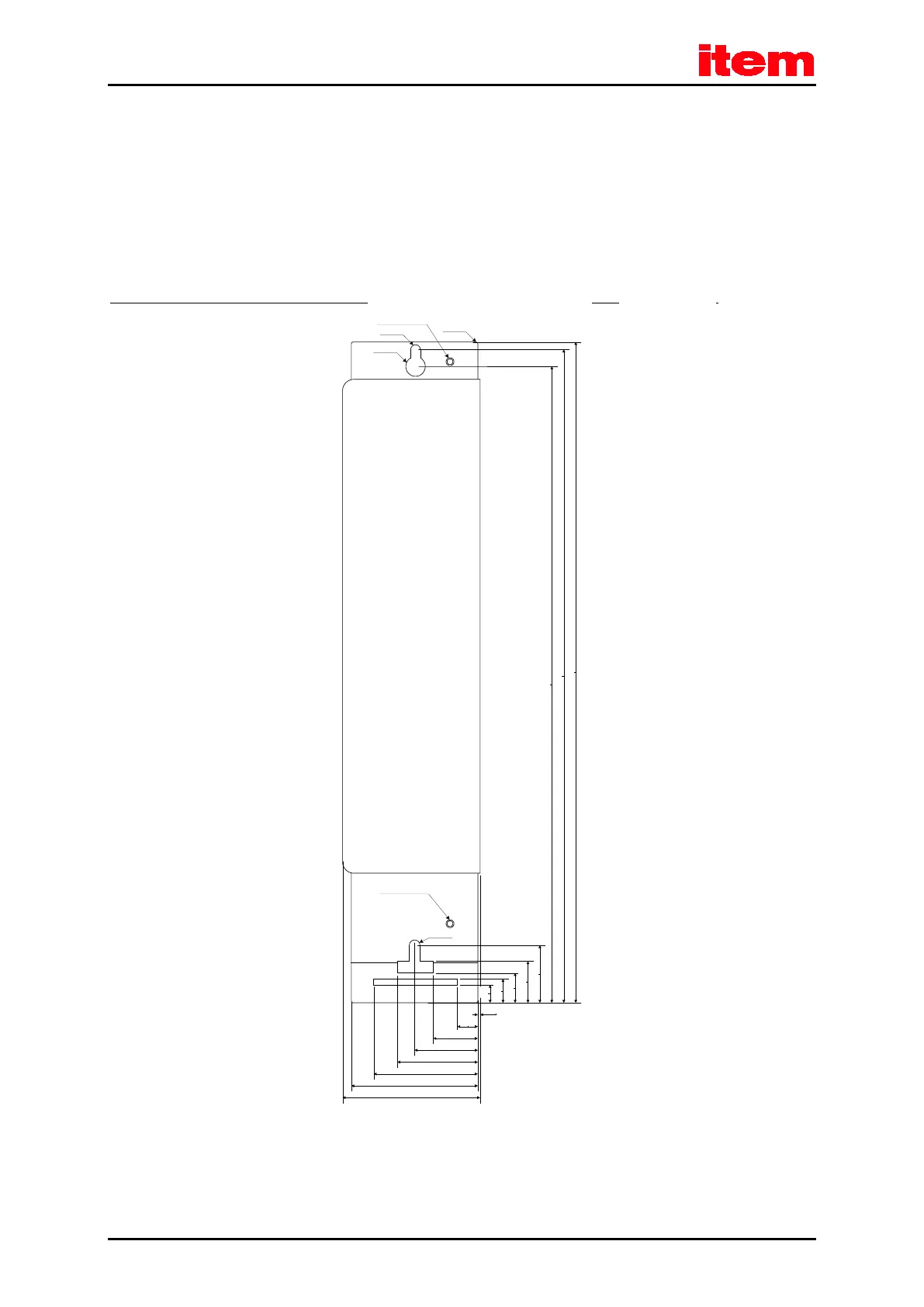

Figure 12: item Servo Positioning Controller C 3-Series: mounting plate
