Technology modules
Page 160
12.3 General installation notes for technology modules
Non-compliance with the instructions that are stated in
chapter
2
Safety notes for electrical drives and
controllers
(
page 17
) may lead to property damage, injuries, electric shock or – in extreme cases – even
death.
Prior to installing a technology module, the servo positioning controller must be disconnected from any
current-carrying conductors. After the operating voltage has been disconnected, wait for 5 minutes so that the
capacitors in the servo positioning controller can be completely discharged.
Caution!
Ensure that ESD protection measures are applied when handling technology modules.
To insert a technology module into the item Servo Positioning Controller C 3-Series, please proceed as follows:
1. Remove the front plate of the technology slot (TECH 1 or TECH 2) of the servo positioning controller with a suitable
Phillips screwdriver.
2. Push the technology module into the open technology slot so that the lateral guides hold the board.
3. Push the technology module into the slot until it reaches the stop.
4. Screw the technology module onto the front side of the housing of the servo positioning controller with the Phillips screw.
5. Ensure that the front plate of the technology module has conducting contact with the housing of the servo positioning
controller (PE).

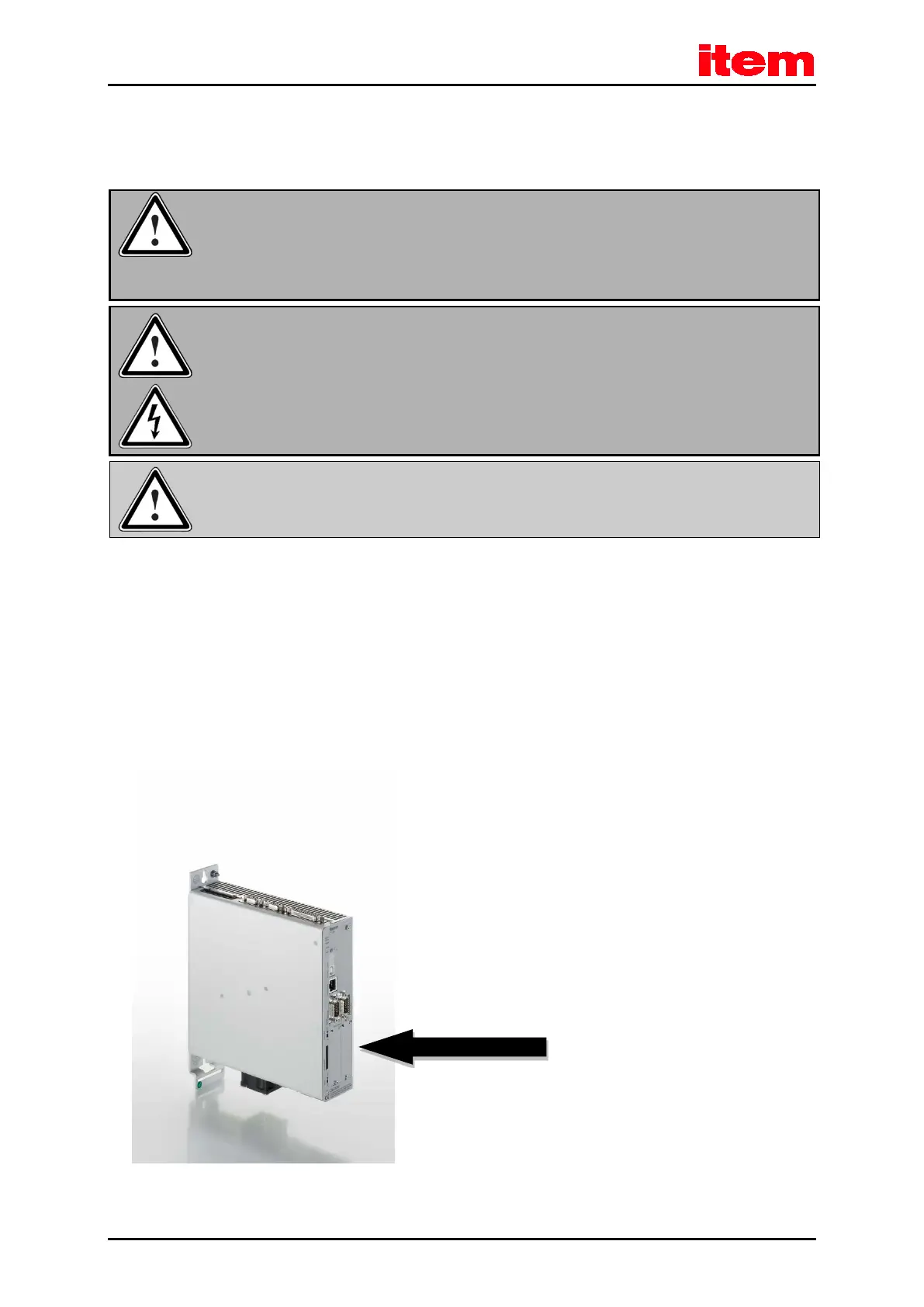

Figure 33: Servo positioning controller with an integrated
technology module
