HR-5111

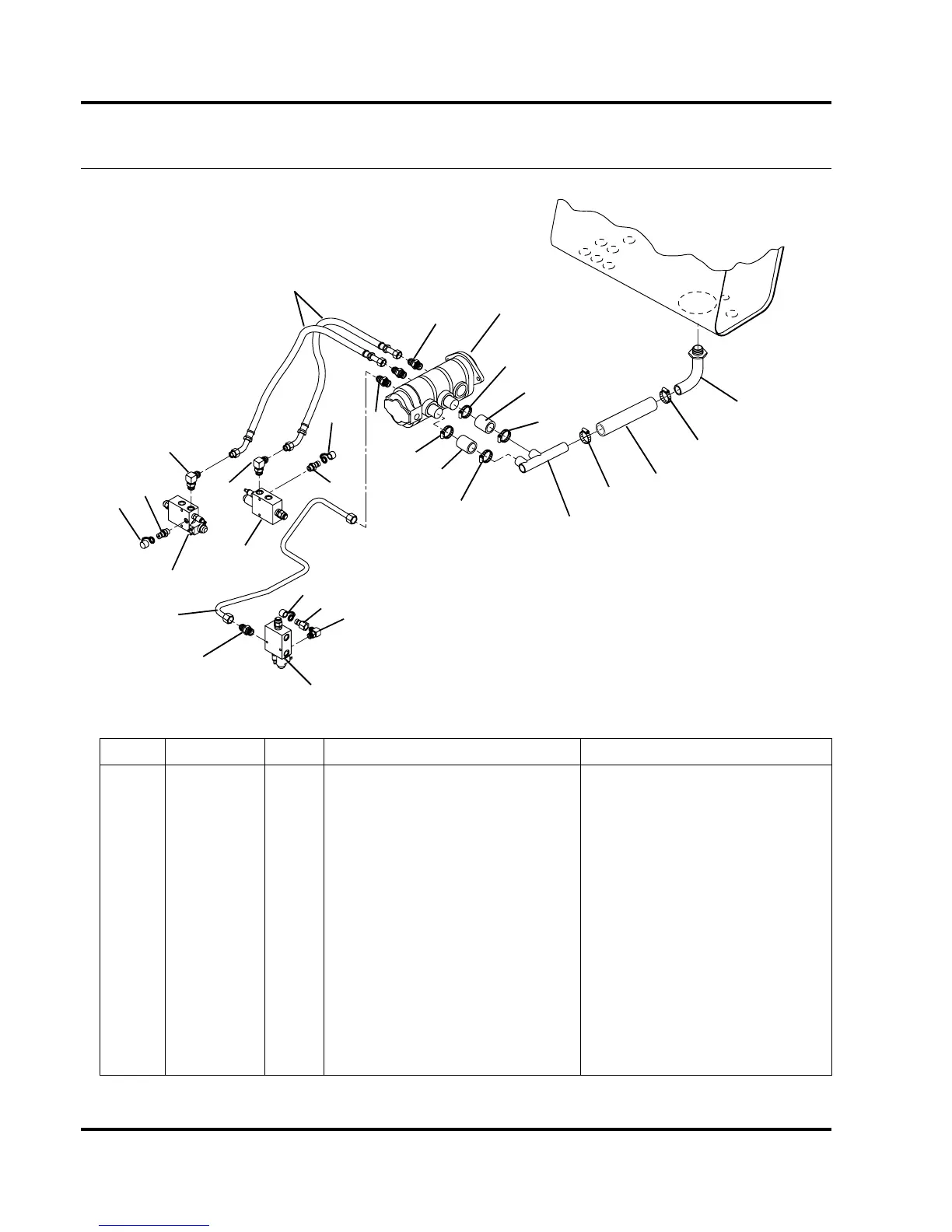

30.1 Gear Pump Hydraulics
Serial No. 69116-5901 and Up
Item Part No. Qty. Description Serial Numbers/Notes
1
338946 1 Adapter, 90° Beaded
339903 1 O-RIng
2 326112 6 Clamp, Hose
3 366083 1 Hose, Pump Suction
4 339113 1 Manifold, Pump Suction
5 2720893 2 Hose, Pump Suction
6 339989 4 Adapter, Straight
7 1003104 1 Hose, Pump to Deck Valve P Port
8 340070 2 Adapter, 90°
9 365466 2 Adapter, Diagnostic Port
10 363030 3 Dust Cover
11 1003012 1 Tube, Front Deck Valve
12 340065 1 Adapter, 90°
13 364945 1 Adapter, Diagnostic Port
1
2
3
4
5
6
7
89
10
11
12
13
Gear Pump
Right Wing
Valve
Left Wing
Valve
Front Valve
2
2
2
2
2
5
6
6
8
9
10
10
