135
> Change from previous revision
HR-5111
Item Part No. Qty. Description Serial Numbers/Notes
1
556890 2 Brake Cliper
2 557991 1 • Brake Pad Set
3 557989 1 • Caliper Seal Repair Kit
4 557988 4 • Screw, Caliper Bleed
5 557987 4 • Cap, Bleed Screw
6 557990 1 • Pad Retaining Pin and Spring Kit

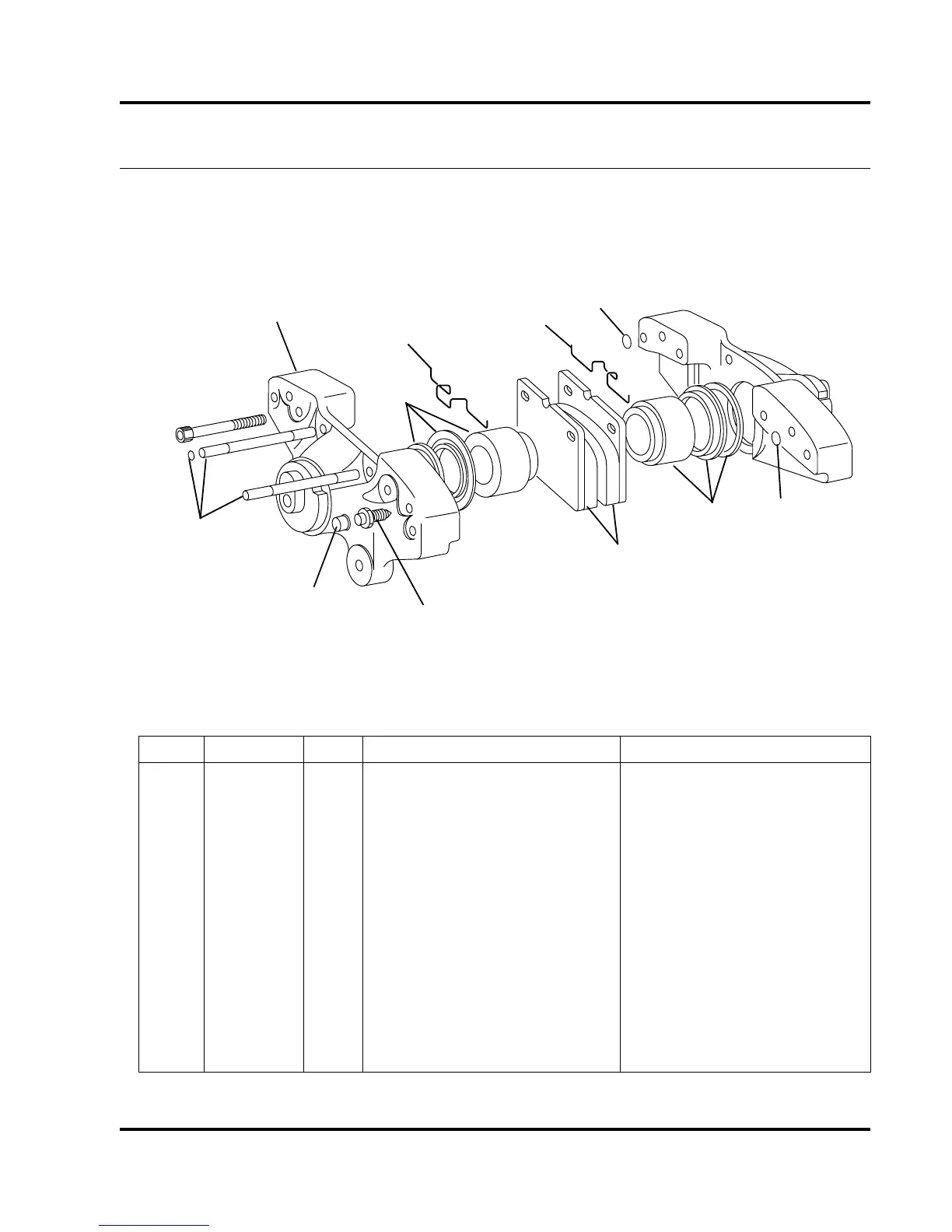

66.1 Brake Caliper
Part of 1003327
Serial No. 69116-5901 and Up
1
2
3
4
5
6
3
3
3
6
6
